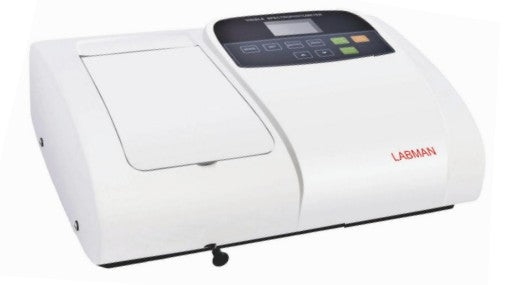

Visible Spectrophotometer LMSPV325 (325–1000 nm)
Visible Spectrophotometer LMSPV325 (325–1000 nm)
Low stock: 10 left
Couldn't load pickup availability
The LMSPV325 Visible Spectrophotometer is designed for routine analytical applications in the visible wavelength range from 325 to 1000 nm. It uses a single beam optical system with a 1200 lines/mm grating to provide stable and consistent photometric measurements.
The instrument features automatic wavelength setting, allowing users to quickly select required wavelengths with minimal operational error. It supports standard curve generation, enabling quantitative analysis and determination of unknown sample concentrations.
The system provides multiple result display capability, showing wavelength, absorbance, and transmittance simultaneously, with memory storage for up to 200 results. A compact LCD interface ensures clear data visualization and ease of operation.
Equipped with a tungsten lamp and silicon photodiode detector, the instrument delivers reliable performance across the visible spectrum. A 4-position cuvette holder allows efficient sample handling, while USB connectivity enables data transfer to external systems and printer integration.
The LMSPV325 is suitable for laboratories requiring a cost-effective solution for routine visible range analysis without the need for UV capability.
Key Features
Single beam optical system with stable performance
Visible wavelength range from 325 to 1000 nm
Automatic wavelength setting
Standard curve and quantitative analysis capability
Multiple parameter display with memory storage
LCD screen for clear data visualization
4-position cuvette holder
USB and printer connectivity
Reliable tungsten lamp light source
Compact and easy-to-use design
Technical Specifications
| Parameter | LMSPV325 |
|---|---|
| Make | LABMAN |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Detector | Silicon Photodiode |
| Wavelength Range | 325–1000 nm |
| Bandwidth | 4 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | ±0.5 nm |
| Wavelength Setting | Automatic |
| Photometric Range | -0.3–3A, 0–200%T |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ±0.3%T |
| Photometric Mode | T, A, C, F |
| Stability | ±0.002 Abs/h @ 500 nm |
| Stray Light | ≤0.3%T |
| Light Source | Tungsten Lamp |
| Display | LCD (2.5") |
| Cell Holder | 4-position 10 mm cuvette holder |
| Data Output | USB & Parallel (Printer) |
| Power Supply | AC 220V / 50–60Hz |
| Dimensions (L×W×H) | 565 × 435 × 305 mm |
| Weight | 11 kg |
Applications
Routine laboratory testing
Educational and academic laboratories
Food and beverage analysis
Chemical testing in visible range
Quality control applications
