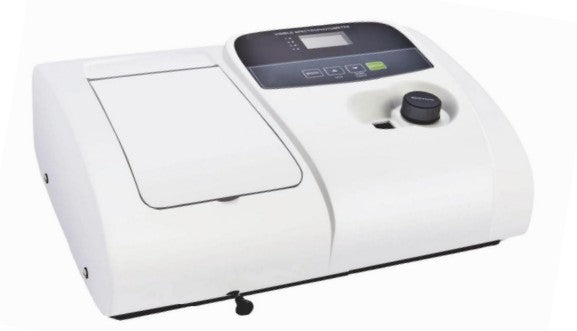

Visible Spectrophotometer LMSPV320 (325–1000 nm)
Visible Spectrophotometer LMSPV320 (325–1000 nm)
Low stock: 10 left
Couldn't load pickup availability
The LMSPV320 Visible Spectrophotometer is a compact and cost-effective analytical instrument designed for routine measurements in the visible spectrum (325–1000 nm). It operates on a single beam optical system with a 1200 lines/mm grating monochromator, ensuring good spectral resolution and low stray light.
This model features microprocessor-controlled operation with auto zero and auto 100% transmittance calibration, simplifying daily workflows and reducing operator error. The instrument displays absorbance, transmittance, concentration, and coefficient values directly on its LCD screen, allowing flexible analytical use.
Unlike higher-end models, the LMSPV320 uses manual wavelength setting, making it suitable for standard lab testing where full automation is not required. The system is equipped with a tungsten halogen lamp and silicon photodiode detector, providing consistent and reliable results in the visible range.
The instrument includes USB connectivity for PC integration (optional software) and a parallel port for direct printer output. Its compact footprint and robust design make it ideal for educational labs, QC environments, and routine chemical analysis.
Key Features
Microprocessor-controlled with auto zero & 100%T calibration
Single beam optical system with grating monochromator
Visible range: 325–1000 nm
Manual wavelength selection via control knob
LCD display for multiple measurement modes
Measures Absorbance, Transmittance, Concentration, Coefficient
Low stray light and stable performance
USB data output and printer connectivity
Compact design with large sample compartment
Technical Specifications
| Parameter | LMSPV320 |
|---|---|
| Make | LABMAN |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Halogen Lamp |
| Wavelength Range | 325–1000 nm |
| Spectral Bandwidth | 4 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ±1 nm |
| Wavelength Setting | Manual |
| Photometric Range | -0.3–3A, 0–200%T |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ±0.3%T |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.3%T |
| Stability | ±0.002 Abs/h |
| Display | LCD |
| Output | USB & Parallel Port (Printer) |
| Power Supply | AC 220V / 50–60Hz |
| Dimensions (L×W×H) | 575 × 450 × 300 mm |
| Weight | 11 kg |
Applications
Routine chemical analysis
Educational and teaching laboratories
Water and environmental testing
Food & beverage quality control
Basic pharmaceutical analysis
