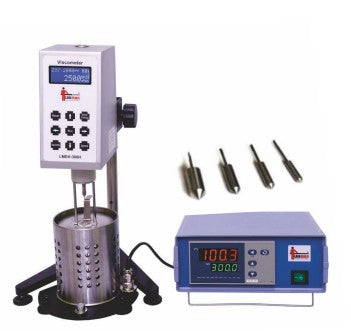

Viscometer with Thermosel System LMDV300H

Viscometer with Thermosel System LMDV300H is designed for high temperature viscosity measurement of materials that are solid at room temperature and become liquid after heating. It is suitable for testing asphalt, hot melt adhesive, polyethylene wax and similar high temperature materials.

The system features precise temperature control upto 300°C with insulated sample chamber and selectable spindle speed. The instrument directly displays viscosity, speed, torque, spindle number and temperature for accurate analysis.

Key Features

Suitable for high temperature application upto 300°C
RS232C interface with selectable speed
LCD display for viscometer and LED for thermosel system
Temperature controller with set and real temperature display
Small sample volume with insulated sample chamber
Direct display of viscosity, speed, torque, spindle number and temperature

21# Spindle Measurement Range : 50~500K
27# Spindle Measurement Range : 250~2.5K
28# Spindle Measurement Range : 500~5M
29# Rotor Spindle Measurement Range : 1K~10M

K = 1000 mPa
M = 1000000 mPa

Technical Specifications

Applications

Asphalt testing
Hot melt adhesive testing
Polyethylene wax testing
High temperature viscosity analysis
Polymer and petrochemical laboratories

Standard Accessories

Main Instrument
Spindle Set
Temperature Controller
Heating Furnace
Connecting Cable
Nose Pliers
RTD Probe
Power Adaptor
Instruction Manual
Test Certificate
