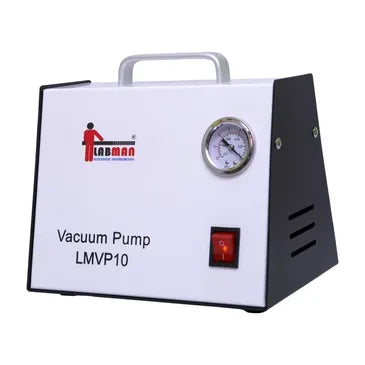

Vacuum Pump LMVP10 (Oil-Free Diaphragm Pump, 11 L/min Flow Rate)
Vacuum Pump LMVP10 (Oil-Free Diaphragm Pump, 11 L/min Flow Rate)
Low stock: 10 left
Couldn't load pickup availability
Vacuum Pump LMVP10 is a compact oil-free diaphragm vacuum pump designed for laboratory vacuum generation and positive pressure applications. The system uses an electromagnetic motor combined with a diaphragm sealed chamber to deliver stable vacuum performance with clean and contamination-free operation.
The oil-free pump design eliminates oil contamination risks and reduces maintenance requirements, making it suitable for sensitive laboratory workflows and analytical applications. Its diaphragm-sealed chamber ensures effective isolation of gas circulation while maintaining stable vacuum generation.
LMVP10 provides a flow rate of 11 L/min with maximum vacuum pressure of ≥0.075 MPa, supporting a wide range of laboratory operations including filtration, aeration, solid phase extraction, atmospheric sampling, and nitrogen blowing applications.
The compact bench-top construction and low-noise operation make the unit suitable for routine laboratory use where clean vacuum generation and reliable performance are required. Its durable design ensures stable long-term operation under continuous laboratory conditions.
Designed for analytical laboratories, chemical research, environmental testing, and sample preparation applications, the LMVP10 offers efficient and pollution-free vacuum performance for general laboratory workflows.
Key Features
Oil-free diaphragm vacuum pump design
11 L/min vacuum flow rate
Diaphragm sealed chamber construction
Low-noise laboratory operation
Clean and contamination-free vacuum generation
Electromagnetic motor system
Compact bench-top design
Stable vacuum and pressure performance
Low maintenance operation
Suitable for filtration and extraction applications
Reliable laboratory vacuum source
Pollution-free working environment
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Rate | 11 L/min |
| Maximum Vacuum Pressure | ≥ 0.075 MPa |
| Diaphragm Sealed Chamber | Yes |
| Operating Temperature | 10°C–40°C |
| Power Wattage | 55 W |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L×W×H) | 290 × 215 × 275 mm |
| Weight | 4 kg |
Applications
Vacuum filtration systems
Solid phase extraction applications
Atmospheric sampling systems
Nitrogen blowing applications
Laboratory aeration systems
Chemical and analytical laboratories
General laboratory vacuum operations
