Eye Piece Camera (3 Mega Pixel) ACVT – 33
Eye Piece Camera (3 Mega Pixel) ACVT – 33
Low stock: 10 left
Couldn't load pickup availability

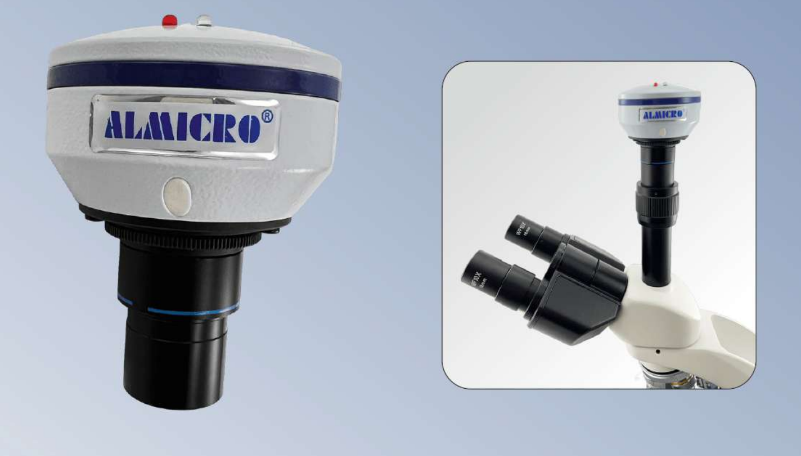

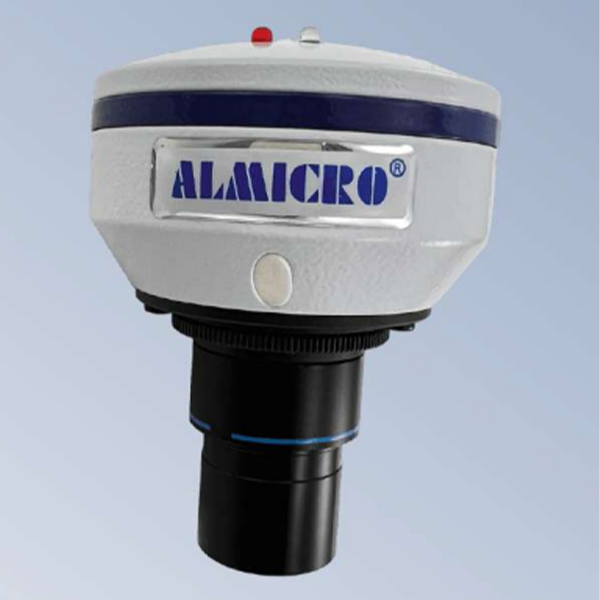

Eyepiece Camera ACVT-33 is a 3 Mega Pixel digital microscope camera designed for capturing images and live video directly from microscopes. It connects via USB 2.0 and provides real-time image transfer to a computer, making it ideal for laboratory documentation, teaching, and analysis. The camera features high sensitivity, low noise imaging, and accurate color reproduction for clear and detailed observation. It is compatible with Windows and Mac operating systems and includes user-friendly image processing software for measurement and analysis applications.
Key Features
3 Mega Pixel CMOS camera for clear image capture
USB 2.0 interface for real-time video transfer
High sensitivity sensor with low noise performance
Accurate color reproduction for detailed imaging
Compatible with Windows and Mac operating systems
Easy installation with plug-and-play functionality
User-friendly image processing software for analysis
Optical relay lens for direct microscope integration
Suitable for documentation, teaching and research
Differentiator vs standard viewing: Enables digital imaging and recording from microscope
Best for: laboratories, education, research and microscopy imaging
Technical Specifications
| Parameter | Specification |
|---|---|
| Device Type | Eyepiece Microscope Camera |
| Model | ACVT-33 |
| Resolution | 3 Mega Pixel |
| Interface | USB 2.0 |
| Sensor Type | CMOS |
| Image Transfer | Live video |
| Compatibility | Windows XP/7/8/10 (32/64 bit), Mac OS X |
| Software | Scope Image 9.0 (Advanced optional) |
| Lens | Optical relay lens |
| Application | Imaging, documentation, analysis |
| Usage | Labs, education, research |
| Country of Origin | India |
Kit Contents
Microscope digital camera with optical relay lens
USB 2.0 cable
Image processing software
Eyepiece tube adapters (23.2 mm / 30 mm / 30.5 mm optional)
Calibration slides (optional)
