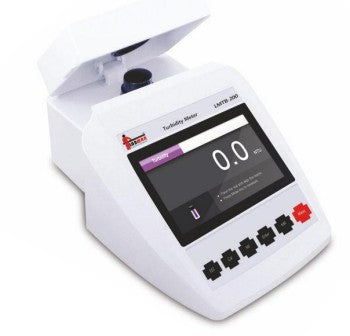

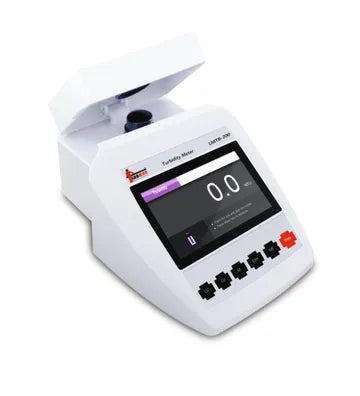

Turbidity Meter LMTB200 (4.5" TFT Display, TSS Measurement Mode)
Turbidity Meter LMTB200 (4.5" TFT Display, TSS Measurement Mode)
Low stock: 10 left
Couldn't load pickup availability
Turbidity Meter LMTB200 is a precision laboratory instrument designed for accurate turbidity and total suspended solids (TSS) measurement in water and wastewater analysis applications. The system combines advanced optical detection with multi-point calibration capability to deliver stable and reliable turbidity measurement results.
The instrument supports turbidity measurement from 1 to 2000 NTU with selectable turbidity units including NTU, FNU, EBC, and ASBC. A built-in TSS conversion mode enables accurate suspended solids analysis for industrial and environmental applications.

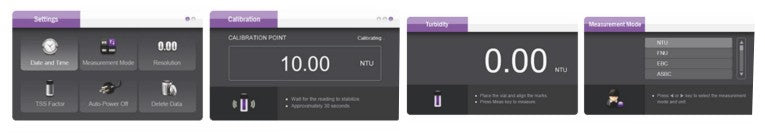

LMTB200 features a 4.5-inch TFT display with user-friendly menu navigation and operational guidance for simplified testing procedures. The system supports 2 to 7-point calibration using Formazin standards to improve measurement accuracy across different turbidity ranges.
An infrared-emitting diode operating at 850 nm combined with a silicon photodiode detector ensures stable optical performance with low stray light interference. Continuous measurement mode allows indexing and matching of sample vials for improved repeatability.
The meter includes password protection, hold functionality, automatic reset options, and internal memory capable of storing up to 200 data sets for laboratory record management and traceability.
LMTB200 is suitable for industrial wastewater plants, municipal water treatment facilities, environmental laboratories, food and beverage testing, academic research, and industrial process monitoring applications.
Key Features
Turbidity and TSS measurement capability
Measurement range from 1 to 2000 NTU
Selectable turbidity units including NTU, FNU, EBC, and ASBC
2 to 7-point calibration using Formazin standards
4.5-inch TFT display with menu-based operation
Infrared LED light source at 850 nm
Silicon photodiode detector for stable measurement
Continuous measurement mode for vial indexing
Password protection for calibration and settings
Memory storage for up to 200 data sets
Low stray light optical system
Suitable for laboratory and industrial water testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 1–2000 NTU |
| Resolution | 0.01 (1–100 NTU), 0.1 (100–999 NTU), 1 (999–2000 NTU) |
| Accuracy | ±5% |
| Calibration Points | 2 to 7 Points |
| Calibration Standards | 0.02, 10, 200, 500, 1000, 1500, 2000 NTU |
| TSS Range | Depending on TSS Conversion Factor |
| TSS Resolution | 0.0 / 1 |
| TSS Accuracy | ±3% of Reading |
| Light Source | Infrared Emitting Diode (850 nm) |
| Detector | Silicon Photodiode |
| Stray Light | <0.02 NTU |
| Sample Vials | 60 (H) × 25 mm Diameter |
| Memory | Up to 200 Data Sets |
| Display | 4.5-inch TFT Display |
| Password Protection | Yes |
| Operating Temperature | 0–50°C |
| Power Supply | DC Adaptor, AC 220V / 50–60Hz |
| Dimensions (L×W×H) | 310 × 255 × 190 mm |
| Weight | 2 kg |
Applications
Industrial wastewater analysis
Municipal water treatment testing
Environmental monitoring laboratories
Water quality analysis
Food and beverage processing
Academic and research laboratories
Industrial process monitoring
