Travelling Microscope VM – 1

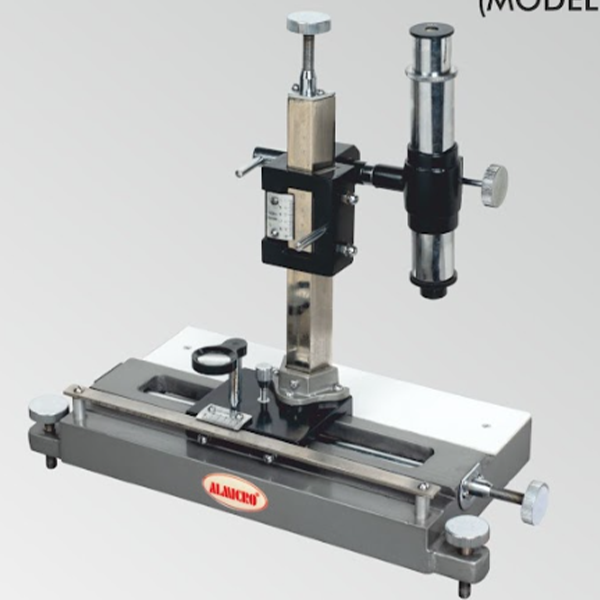

Travelling Microscope VM-1 is a precision measuring instrument designed for accurate linear measurements in laboratory experiments and optical studies. It features a stable cast iron base with a machined vee-top surface and leveling screws for precise alignment. The microscope allows smooth horizontal and vertical movement with fine adjustment controls for accurate positioning. Equipped with achromatic optics and a crosshair eyepiece, it ensures clear observation and precise measurement, making it ideal for physics laboratories and research applications.

Key Features

Precision travelling microscope for linear measurement applications
Horizontal travel up to 22 cm and vertical travel up to 15 cm
Fine adjustment knobs for accurate positioning and readings
Vernier least count of 0.01 mm or 0.02 mm
Stable cast iron base with machined vee-top surface
Three leveling screws for precise alignment
Milky cenolite sheet base for clear specimen placement
Achromatic objective for clear and distortion-free imaging
Eyepiece with crosshair for precise measurement alignment
Robust construction with wooden box packing for protection
Differentiator vs basic microscopes: Integrated measurement system with vernier scale
Best for: physics labs, optical experiments, measurement studies

Technical Specifications
