Labman

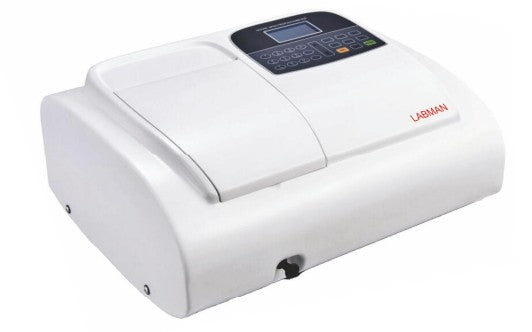

Single Beam UV-Vis Spectrophotometer LMSPUV1200 (190–1100 nm)
Single Beam UV-Vis Spectrophotometer LMSPUV1200 (190–1100 nm)
Low stock: 10 left
Couldn't load pickup availability
The LMSPUV1200 Single Beam UV-Vis Spectrophotometer is designed for accurate and consistent spectrophotometric analysis across the ultraviolet and visible spectrum from 190 to 1100 nm. It utilizes a single beam optical system with a 1200 lines/mm grating to deliver stable and precise measurement performance for routine laboratory applications.
The instrument is built on a rigid die-cast aluminum optical base, ensuring mechanical stability and minimizing the effects of vibration and environmental variations. The system features automatic wavelength setting through keypad control, allowing easy operation and reducing the risk of manual errors.
Equipped with both deuterium and tungsten halogen lamps, the spectrophotometer provides reliable performance across the full wavelength range. Lamp selection can be controlled independently to extend operational life and maintain measurement accuracy.
The system supports standard curve generation, enabling quantitative analysis and determination of unknown concentrations. Data output is available via USB for integration with external systems, and results can be processed using connected PC software.
A large sample compartment accommodates standard 10 mm cuvettes with a 4-position holder, and optional accessories allow extended path length measurements up to 100 mm. The instrument is suitable for routine quality control, academic research, and industrial laboratory applications.
Key Features
Single beam optical system with 1200 lines/mm grating
190–1100 nm wavelength range
Automatic wavelength setting with keypad control
Rigid die-cast aluminum optical base
Supports standard curve and quantitative analysis
Dual lamp system (Deuterium and Tungsten)
USB data output for PC connectivity
4-position cuvette holder with large sample compartment
Low stray light with stable photometric performance
Suitable for routine and research applications
Technical Specifications
| Parameter | LMSPUV1200 |
|---|---|
| Make | LABMAN |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Detector | Silicon Photodiode |
| Wavelength Range | 190–1100 nm |
| Bandwidth | 2 nm |
| Wavelength Accuracy | ±0.8 nm |
| Wavelength Repeatability | ±0.2 nm |
| Wavelength Setting | Automatic |
| Photometric Range | -0.3–3A, 0–200%T |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | ±0.2%T |
| Stability | ±0.002 Abs/h @ 500 nm |
| Baseline Flatness | ±0.002 Abs |
| Stray Light | ≤0.05%T |
| Light Source | Deuterium Lamp & Tungsten Halogen Lamp |
| Display | LCD |
| Cell Holder | 10 mm, 4-position cuvette holder |
| Data Output | USB |
| Printer Port | Parallel Port |
| Power Supply | AC 220V / 50–60Hz |
| Dimensions (L×W×H) | 640 × 550 × 400 mm |
| Weight | 24 kg |
Applications
Pharmaceutical quality control laboratories
Chemical and environmental analysis
Academic and teaching laboratories
Food and beverage testing
Routine spectrophotometric analysis
