Semi Micro / Analytical Balance TAB9T (102/220g Capacity, 0.01/0.1mg Readability)
Semi Micro / Analytical Balance TAB9T (102/220g Capacity, 0.01/0.1mg Readability)
Low stock: 10 left
Couldn't load pickup availability

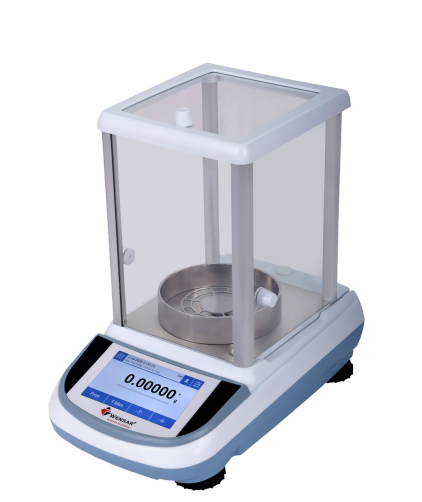

Semi Micro / Analytical Balance TAB9T is a high-precision laboratory weighing system designed for analytical, research, and quality control applications requiring exceptional accuracy and measurement stability. Featuring dual weighing capacities of 102 g and 220 g with ultra-fine readability down to 0.01 mg and 0.1 mg, the balance supports both semi-micro and analytical weighing workflows.
The balance incorporates advanced EMFC (Electromagnetic Force Compensation) technology to provide fast stabilization, excellent repeatability, and reliable measurement performance under demanding laboratory conditions. Automatic internal calibration ensures consistent weighing accuracy while reducing manual intervention.

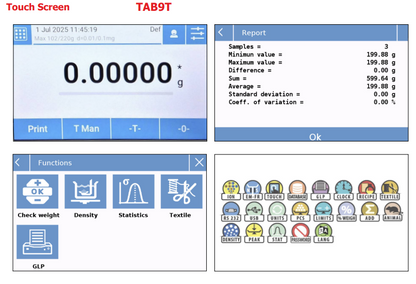

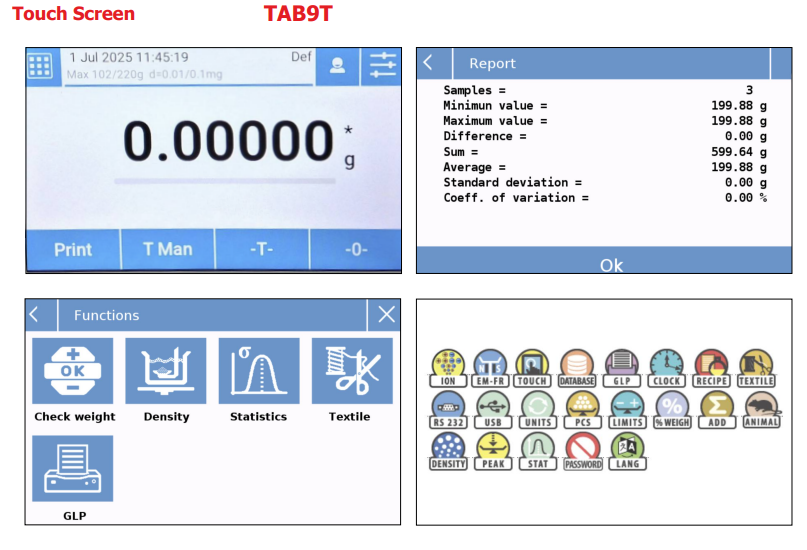

TAB9T is equipped with a responsive 5-inch touchscreen interface that simplifies operation and enables access to advanced weighing functions. Built-in applications include formulation, density determination, statistical analysis, GLP data handling, animal weighing, percentage weighing, piece counting, textile functions, and check weighing.
Internal database capability and multi-user password protection support secure operation and laboratory traceability. Integrated RS232 and USB communication interfaces allow seamless connection to laboratory systems and external data export.
With fast response time, advanced weighing software, and touchscreen usability, TAB9T is suitable for pharmaceutical laboratories, analytical research, academic institutions, and quality assurance environments.
Key Features
Dual weighing capacity of 102 g / 220 g
High readability of 0.01 mg / 0.1 mg
EMFC weighing technology
Automatic internal calibration
5-inch touchscreen display
GLP support with internal database
Density measurement with density index calculation
Formulation and recipe functions
Statistics and reporting tools
Animal weighing and percentage weighing
Multi-user password protection
RS232 and USB connectivity
Fast stabilization and response performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 102 / 220 g |
| Readability | 0.01 / 0.1 mg |
| Repeatability | 0.01 / 0.1 mg |
| Linearity | ±0.04 mg / ±0.4 mg |
| Sensitivity Drift | 3 ppm/°C |
| Display | 5" Touch Screen |
| Response Time | ≤ 6 sec |
| Pan Size | 80 mm |
| Windshield Dimensions | 162 × 171 × 225 mm |
| Calibration | Internal Calibration |
| Operating Temperature | 15°C–25°C |
| Interface | RS232C, USB (Data Export) |
| Density Function | Yes with Density Index Calculation |
| Printout Results | Date, Time, Instrument ID, Weight, GLP |
| Password Protection | Yes |
| Memory | 3000 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400 |
| Power Supply | Adapter 24V/A, AC 220V / 50–60 Hz |
| Dimensions (L×W×H) | 515 × 400 × 525 mm |
| Weight | 9 kg |
Applications
Pharmaceutical analytical laboratories
Semi-micro and analytical weighing
Research and development laboratories
Density determination applications
Quality control laboratories
Academic and scientific institutions
Precision formulation and sample preparation
