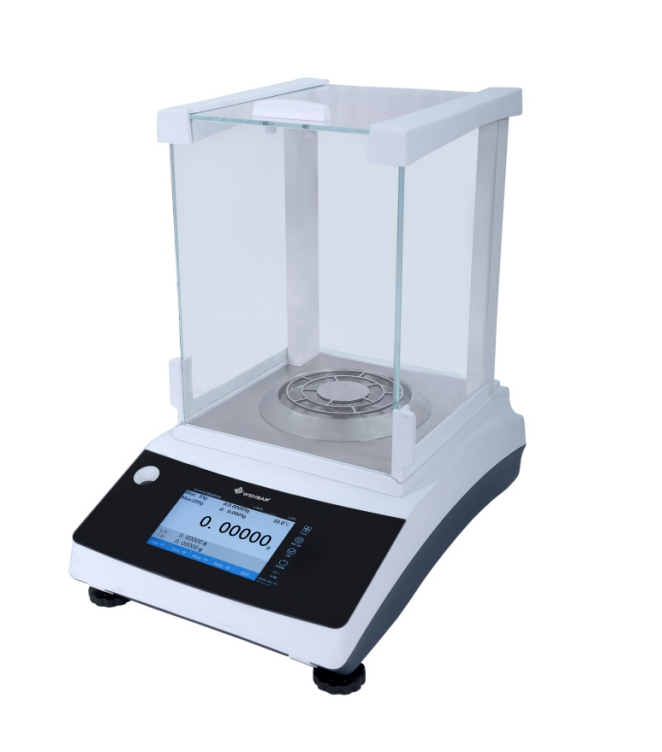

Semi Micro / Analytical Balance TAB10T (81/220g Capacity, Internal Calibration)
Semi Micro / Analytical Balance TAB10T (81/220g Capacity, Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability
Semi Micro / Analytical Balance TAB10T is a high-precision laboratory balance developed for analytical, pharmaceutical, research, and quality control applications requiring exceptional measurement sensitivity and repeatability. Designed with dual weighing capacities of 81 g and 220 g and readability down to 0.01 mg and 0.1 mg, the instrument supports both semi-micro and analytical weighing requirements.
The balance integrates advanced EMFC (Electromagnetic Force Compensation) technology to deliver stable performance, rapid response, and reliable weighing results. Internal calibration ensures consistent measurement accuracy while reducing manual calibration effort and improving operational efficiency.

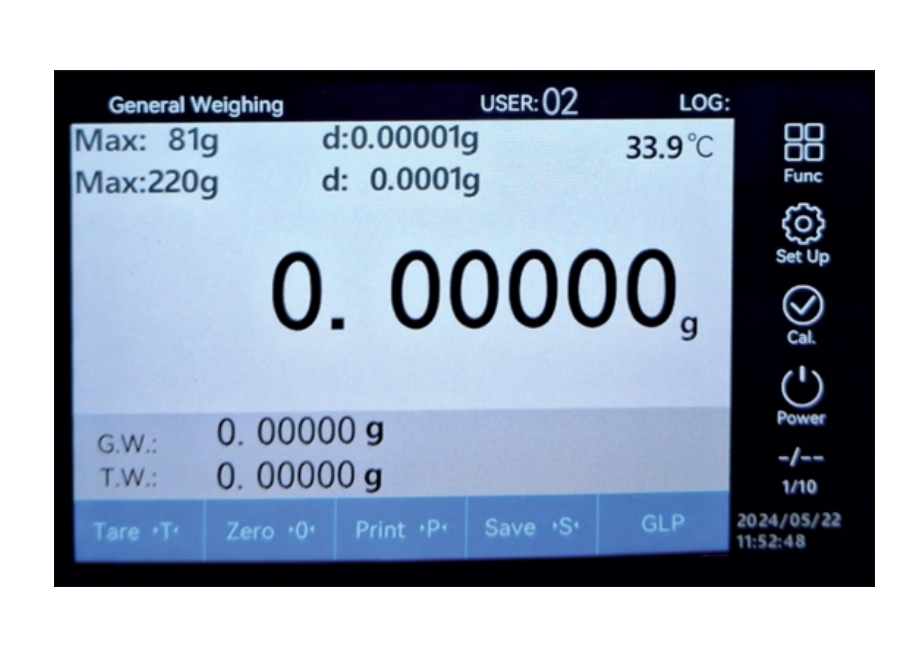

Equipped with a responsive 4.3-inch touchscreen display, TAB10T enables intuitive operation and access to multiple weighing functions including dynamic weighing, piece counting, percentage weighing, density determination, and summation weighing.
The system features GLP/GMP compliance support, multi-unit operation, integrated temperature sensing, RS232C and USB connectivity, and configurable output modes for laboratory workflow integration.
With compact construction, antistatic glass windshield design, and precision measurement capability, TAB10T is suitable for laboratories performing highly accurate analytical and semi-micro weighing applications.
Key Features
81 g / 220 g dual weighing capacity
Ultra-fine readability of 0.01 mg / 0.1 mg
EMFC weighing technology
Internal automatic calibration
4.3-inch touchscreen display
GLP / GMP compliant operation
Multiple weighing modes
Built-in temperature sensor
Glass antistatic windshield
Fast sensitivity adjustment
RS232C and USB communication
Density determination capability
Continuous and command output modes
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 81 g / 220 g |
| Readability | 0.01 mg / 0.1 mg |
| Repeatability | 0.01 mg / 0.1 mg |
| Linearity | ±0.04 mg / ±0.4 mg |
| Verification Scale Interval (e) | 1 mg |
| Calibration | Internal Calibration |
| Accuracy Class | Class I |
| Display | Touch Screen Display |
| Response Time | 4–6 sec |
| Pan Size | 90 mm Ø |
| Tare Range | Full |
| Operating Temperature | 15°C to 30°C |
| Sensitivity Drift | 2 ppm / °C |
| Density Function | Available |
| Data Output Mode | Command & Continuous Output |
| Factory Reset | Available |
| Weighing Chamber Size | 162 × 180 × 210 mm |
| Units | g, mg, oz, ct |
| Application Modes | Basic, Dynamic, Percentage, Piece Counting, Density, Σ Weighing |
| Baud Rate | 1200, 2400, 4800, 9600 |
| Interface | RS232C, USB |
| Power Supply | DC 9V Adapter, AC 220V / 50–60 Hz |
| Dimensions (L×W×H) | 420 × 315 × 445 mm |
| Weight | 9 kg |
Applications
Analytical laboratory weighing
Semi-micro precision measurement
Pharmaceutical and QC laboratories
Research and academic institutions
Density determination workflows
Sample preparation and formulation
High-accuracy analytical testing
