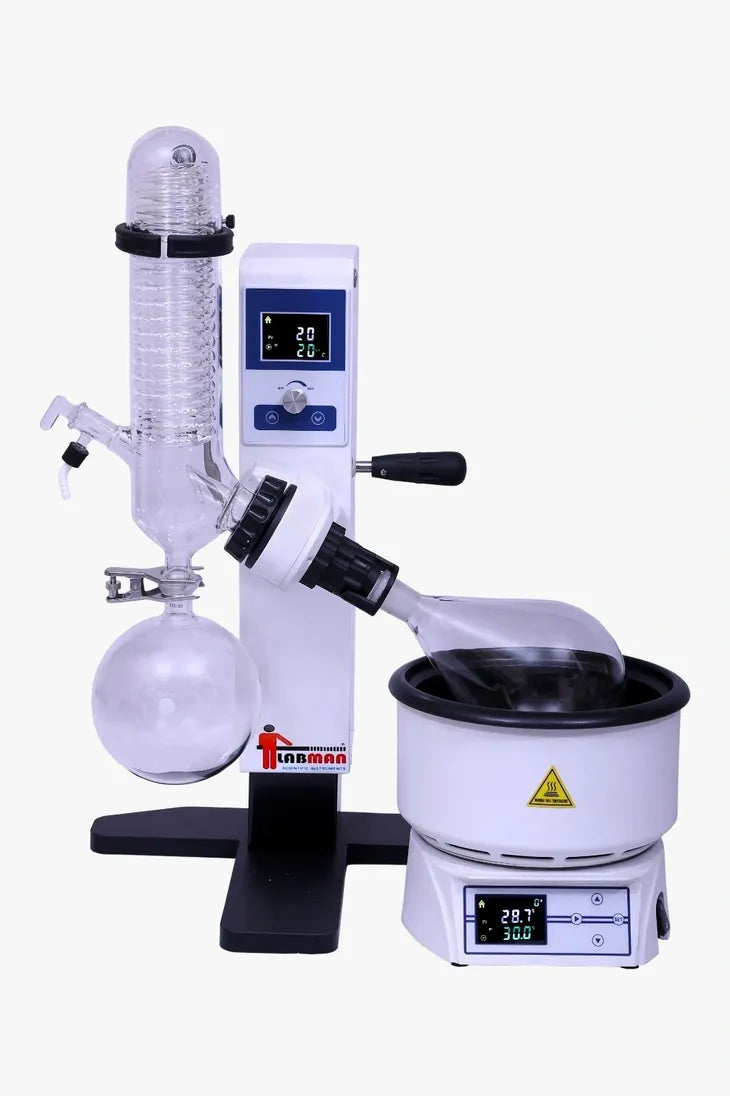

Rotary Evaporator LMRE25 (1L, Auto-Lift, 400°C Max)

The Rotary Evaporator LMRE25 is a professional-grade laboratory device engineered for the efficient and gentle removal of solvents from samples through evaporation. It is an essential tool for pilot testing in biological, pharmaceutical, chemical, and food industries. The system utilizes a combination of heat and vacuum to achieve rapid solvent evaporation while maintaining sample integrity.

Technically, the LMRE25 features an automatic lifting water bath with a wide temperature range of RT+5°C to 180°C and a high-efficiency vertical condenser with a 0.15 $m^2$ condensation area. The unit is constructed with an aluminum alloy bracket and a stainless steel pot liner for durability. It is equipped with a corrosion-resistant PTFE sealing system and an automatic switching valve for continuous collection, ensuring stable and low-noise operation for demanding laboratory workflows.

Key Features

Evaporation Capacity - Max. 25ml / min. (Water Evaporation)

1L Rotating bottle (evaporation area.)

Efficient solvent evaporation via heating and vacuum.

Material - Aluminum Alloy Bracket, Stainless steel Pot liner

Automatic lifting bath.

Stable, Low-noise

Adjustable double-layer condenser.

Anti-backflow condenser design.

Durable, corrosion-resistant PTFE sealing system.

Automatic switching valve for continuous collection.

Corrosion-resistant Teflon discharge valve.

Optional - Vacuum Pump & Water Chiller

Product Specification Table
