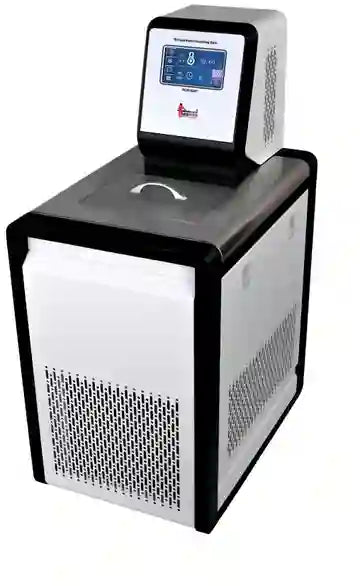

Refrigerated Circulating Bath RCB Series (-10°C to -30°C to 100°C, PID Control, Touchscreen)
Refrigerated Circulating Bath RCB Series (-10°C to -30°C to 100°C, PID Control, Touchscreen)
Low stock: 10 left
Couldn't load pickup availability
The Refrigerated Circulating Bath RCB Series is designed for precise temperature control in laboratory and industrial applications requiring both heating and cooling. The system integrates a high-performance refrigeration unit with a microprocessor-based PID controller to deliver stable and accurate temperature conditions across a wide range. It is suitable for applications such as viscometers, refractometers, polarimeters, spectrophotometers, rotary evaporators, electrophoresis systems, and chromatographic columns.
The unit features a touchscreen interface for intuitive operation and parameter setting. A PT100 temperature sensor ensures high measurement accuracy, while the internal and external circulation pump provides consistent fluid flow for uniform temperature distribution. The stainless steel bath tank ensures corrosion resistance and durability for long-term use.
The system includes safety features such as overheat protection and low water level alarm. With programmable temperature control and a circulation flow rate of 8 L/min, the RCB series ensures reliable and repeatable performance in demanding laboratory environments.
Key Features
Touchscreen display with user-friendly interface
Microprocessor PID temperature control
PT100 temperature sensor for high accuracy
Internal and external circulation capability
Pump flow rate up to 8 L/min
Air-cooled refrigeration system
Low noise and stable operation
Overheat protection and low water level alarm
Programmable temperature controller
Stainless steel inner tank
Technical Specifications
| Parameter | RCB1010T | RCB1020T | RCB1030T |
|---|---|---|---|
| Temperature Range | -10°C to 100°C | -20°C to 100°C | -30°C to 100°C |
| Temperature Resolution | 0.01°C | 0.01°C | 0.01°C |
| Temperature Accuracy | ±0.05°C | ±0.05°C | ±0.05°C |
| Temperature Control | Microprocessor PID | Microprocessor PID | Microprocessor PID |
| Display | Touchscreen | Touchscreen | Touchscreen |
| Refrigeration Type | Air-cooled compressor | Air-cooled compressor | Air-cooled compressor |
| Refrigerant | R-134A | R-134A | R-134A |
| Circulation | Internal & External | Internal & External | Internal & External |
| Pump Flow Rate | 8 L/min | 8 L/min | 8 L/min |
| Temperature Sensor | PT100 | PT100 | PT100 |
| Bath Capacity | 10 L | 10 L | 10 L |
| Tank Size (L×W×D) | 270×200×200 mm | 270×200×200 mm | 270×200×200 mm |
| Bath Opening | 180×140 mm | 180×140 mm | 180×140 mm |
| Bath Depth | 200 mm | 200 mm | 200 mm |
| Power Supply | AC 220V / 50Hz | AC 220V / 50Hz | AC 220V / 50Hz |
| Dimensions (L×W×H) | 530×380×790 mm | 535×380×800 mm | 580×505×940 mm |
| Weight | 41 kg | 41 kg | 63 kg |
Applications
Temperature control for analytical instruments
Chemical and pharmaceutical laboratories
Viscosity and refractive index measurements
Rotary evaporation processes
Chromatography systems
Research and academic laboratories
