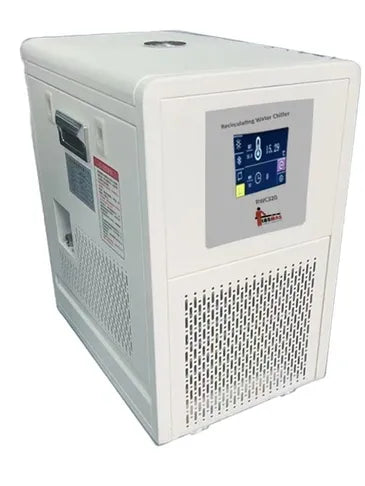

Recirculating Water Chiller RWC320 (-20°C to 100°C, PID Control, 8 L/min Flow)
Recirculating Water Chiller RWC320 (-20°C to 100°C, PID Control, 8 L/min Flow)
Low stock: 10 left
Couldn't load pickup availability
The Recirculating Water Chiller RWC320 is designed to deliver precise and stable temperature control for laboratory and industrial applications requiring continuous cooling and circulation. Equipped with a microprocessor-based PID control system and a high-precision temperature sensor, the unit ensures consistent thermal performance across a wide operating range.
The system features a 4.3-inch touchscreen display for easy operation and monitoring. Built with SS304 stainless steel internal components and connectors, it offers excellent corrosion resistance and durability. The integrated circulation pump provides a flow rate of 8 L/min, ensuring efficient heat exchange for connected instruments.
Designed for convenience and safety, the unit includes a built-in drain valve, automatic overflow drainage, and a transparent water level indicator. Its low-noise operation and compact structure make it suitable for laboratory environments requiring reliable and continuous cooling.
The RWC320 is widely used with rotary evaporators, glass reactors, viscometers, rheometers, electrophoresis systems, refractometers, and ultrasonic homogenizers.
Key Features
4.3 inch touchscreen display
PID temperature control system
SS304 internal material and connectors
Built-in drain valve with overflow management
Heatless circulation pump
Pump flow rate up to 8 L/min
Low noise operation
Transparent water level indicator
Compact design with side handles
Stable and continuous cooling performance
Technical Specifications
| Parameter | RWC320 |
|---|---|
| Make | LABMAN |
| Bath Capacity | 3.5 L |
| Pump Lift | 2 m |
| Pump Flow | 8 L/min |
| Total Power | 1200 W |
| Inner Material | SS304 |
| Circulation & Drainage Port | SS304 |
| Display | 4.3" TFT Touchscreen |
| Temperature Control | PID |
| Filling Port | 35 mm |
| Ambient Temperature | 10°C to 25°C |
| Temperature Range | -20°C to 100°C |
| Temperature Resolution | 0.01°C |
| Temperature Stability | ±0.1°C |
| Power Supply | AC 220V / 50Hz |
| Internal Size (L×W×H) | 180 × 170 × 130 mm |
| Instrument Size (L×W×H) | 440 × 300 × 510 mm |
| Packing Size (L×W×H) | 520 × 370 × 600 mm |
| Weight | 30 kg |
Applications
Rotary evaporator cooling
Glass reactor temperature control
Viscometer and rheometer applications
Electrophoresis systems
Abbe refractometer cooling
Ultrasonic homogenizer support
