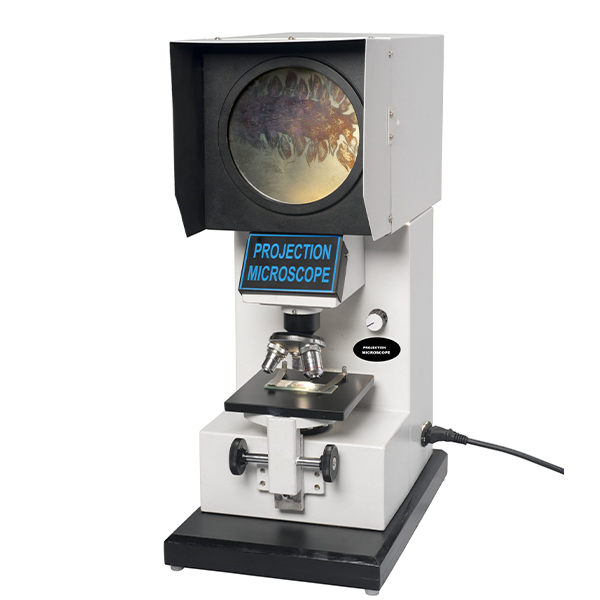

Projection Microscope (KW – 500)

Projection Microscope KW-500 is designed for non-contact measurement, profile analysis, and optical inspection of components in quality control and industrial environments. The system projects a magnified image of the specimen onto a screen, allowing accurate measurement of dimensions, angles, and contours without physical contact. It is widely used in tool rooms, manufacturing units, and inspection laboratories for precise evaluation of machined parts, templates, and small components.

Key Features

Projection system for enlarged shadow image and profile analysis
Non-contact measurement for delicate and precision components
High accuracy optical system for dimensional inspection
Suitable for measuring angles, contours and geometrical features
Stable construction for consistent measurement performance
Ideal for industrial inspection, tool rooms and quality control labs
Differentiator vs conventional microscopes: Enables projection-based measurement instead of direct viewing
Best for: manufacturing inspection, QA/QC labs, precision engineering

Technical Specifications
