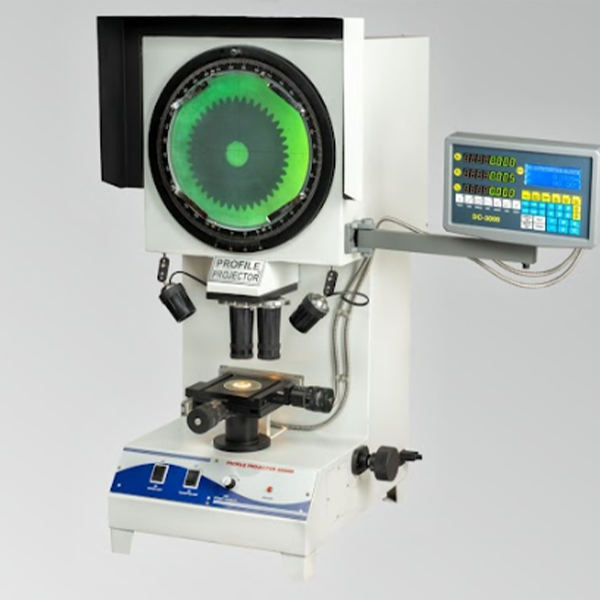

Profile Projector KW – 850 with DRO (EL- 250)

Profile Projector KW-850 with DRO EL-250 is an advanced optical measurement system designed for high-precision, non-contact inspection and dimensional analysis. It combines a large 300 mm projection screen with a digital readout system for accurate measurement of profiles, angles, and geometrical features. The DRO unit enhances usability with graphical display, data storage, and error compensation functions, making it suitable for QA/QC labs, tool rooms, and manufacturing environments requiring reliable and repeatable measurements.

Key Features

300 mm projection screen for clear and enlarged profile visualization
Digital Readout system for accurate and efficient measurement
Graphic LCD display for clear data viewing
Feather touch keyboard for easy operation and durability
Supports line, distance, angle, circle and point measurements
Skew and job rotation functionality for complex measurements
Linear and non-linear error compensation for improved accuracy
Memory storage for up to 50 measurement results
RS232 communication for data transfer and report backup
Foot pedal support for operator convenience
Ergonomic and compact design for laboratory use
CE and ROHS approved with ISO 9001 manufacturing standard
Differentiator vs KW-850: Integrated DRO system for digital measurement and data handling
Best for: QA/QC labs, tool rooms, precision manufacturing and inspection

Technical Specifications
