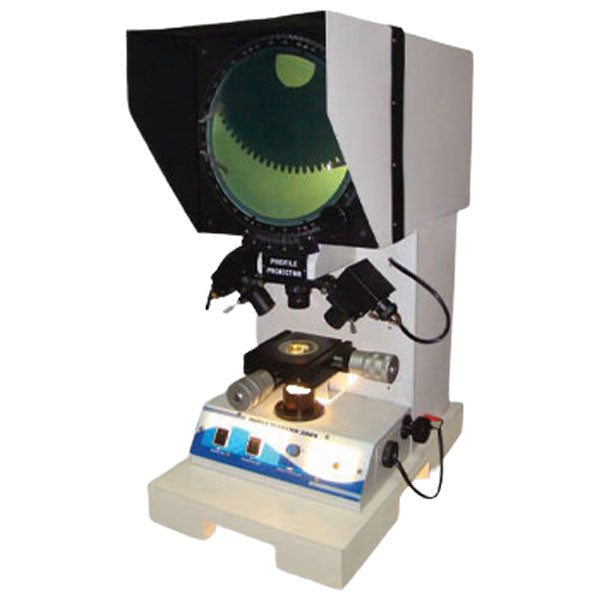

PROFILE PROJECTOR (KW- 850)

Profile Projector KW-850 is a compact table-top optical inspection system designed for precise, non-contact measurement and profile analysis. It features a large 300 mm diameter graduated screen with cross lines and vernier reading for accurate angular measurement. The system provides both transmitted and incident illumination, enabling inspection of profiles as well as surface features. With a precision X-Y stage, micrometer-based measurement, and low optical distortion, it is ideal for tool rooms, quality control labs, and manufacturing inspection environments.

Key Features

Compact table-top design with easy operation
300 mm diameter screen with 90° cross line and chart holders
Screen graduated to 360° with vernier reading up to 1 minute
Transmitted illumination using 12V 100W halogen lamp
Double incident LED illumination for surface inspection
Manual focusing using hand wheel for precise adjustment
Optical distortion below 0.15% for accurate measurement
Standard magnification 10X with optional 20X, 50X, 80X, 100X
Cross travel stage 150 × 150 mm with smooth X-Y movement
Table travel up to 50 × 50 mm for precise positioning
Micrometer heads 0–50 mm with 0.005 mm least count
Optional digital readout system for enhanced measurement accuracy
Built-in cooling fan for noise-free and vibration-free operation
Supplied with operating manual and protective packaging
Differentiator vs KW-800: Larger 300 mm screen with dual illumination and lower distortion
Best for: QA/QC labs, tool rooms, manufacturing and precision inspection
