Profile Projector (KW – 800)

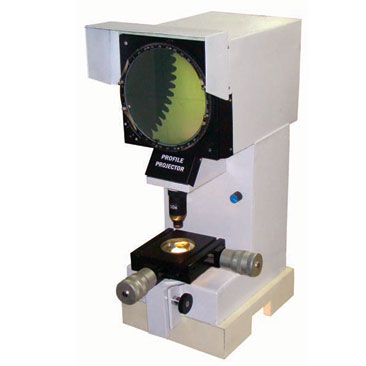

Profile Projector KW-800 is designed for precision measurement and optical inspection of components using non-contact projection technology. It features a 200 mm diameter rotatable graduated screen for accurate profile analysis and measurement. The system uses a high-intensity halogen light source with variable control to ensure clear and sharp image projection. The X-Y stage with ball bearing slides enables smooth and precise specimen movement, while the built-in micrometer provides accurate dimensional measurement. It is suitable for tool rooms, quality control laboratories, and manufacturing inspection applications.

Key Features

200 mm diameter rotatable graduated projection screen
Fixed magnification options 10X or 20X
High-intensity 12V 100W halogen illumination with variable control
Smooth X-Y stage movement on ball bearing slides
Precision micrometer with 50 mm diameter
Least count 0.01 mm or 0.005 mm for accurate measurement
Transmitted light system for profile inspection
Stable construction for consistent measurement performance
Suitable for non-contact dimensional and contour measurement
Differentiator vs basic models: Larger screen with micrometer-based precision measurement
Best for: QA/QC labs, tool rooms, manufacturing inspection
