Labman

Probe Sonicator with Sound Proof Enclosure PRO656 / PRO900 / PRO1200 / PRO1800 (20–25 kHz, up to 1800W, Touch Screen)

Rs. 0.00

Sale Sold out

Shipping calculated at checkout.

Model PRO656 PRO900 PRO1200 PRO1800

Low stock: 10 left

Quantity

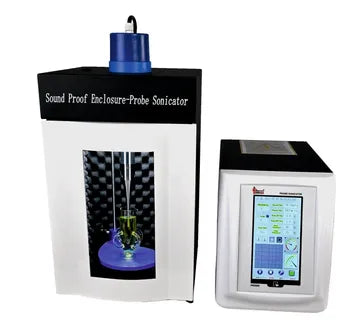

The Probe Sonicator series with soundproof enclosure is a high-performance ultrasonic processing system designed for demanding laboratory and industrial applications. It utilizes high-intensity ultrasound to perform homogenization, emulsification, dispersion, cell disruption, extraction, and chemical acceleration processes. The system operates with automatic frequency tracking in the 19.5–25 kHz range to ensure consistent energy delivery and process stability. Equipped with a 7-inch TFT touchscreen, the instrument allows precise control of parameters such as amplitude, time, temperature, and pulse settings. The integrated soundproof enclosure reduces operational noise while incorporating built-in LED lighting for clear sample visibility. The system includes a circulating glass beaker mechanism for uniform sample processing and improved efficiency. With adjustable amplitude from 0 to 100 percent, programmable methods, and comprehensive safety features such as overload and over-temperature protection, this sonicator series is suitable for high-throughput and critical applications.

Key Features

7 inch TFT touchscreen display for easy operation
Soundproof enclosure with built-in LED illumination
Microprocessor controlled and fully programmable system
Automatic frequency tracking for stable ultrasonic output
Adjustable amplitude from 0 to 100 percent
Pulse, frequency and time graph display in waveform format
Temperature monitoring and display
Circulating glass beaker for uniform sample processing
User password protection for secure operation
Overload, no-load and over-temperature alarm functions

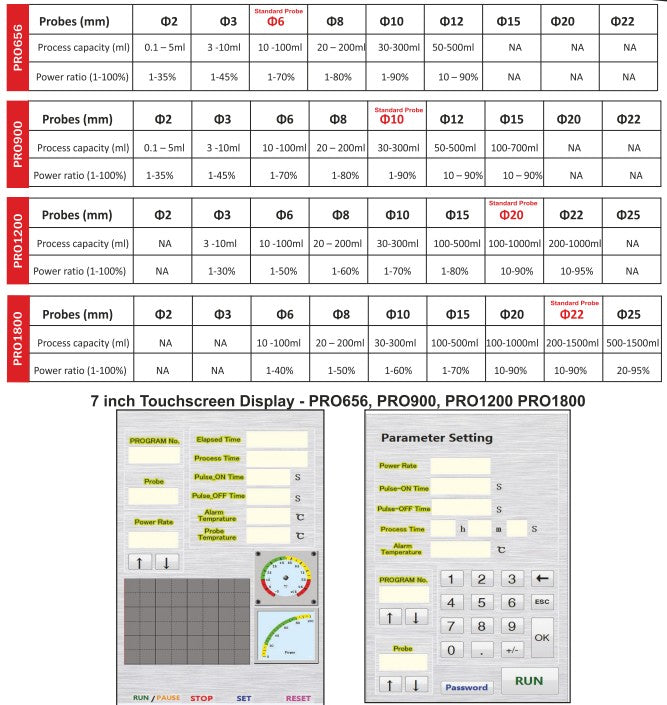

Technical Specifications

Parameter	PRO656	PRO900	PRO1200	PRO1800
Frequency	20–25 kHz	20–25 kHz	19.5–20.5 kHz	19.5–20.5 kHz
Power	6.5–650 W	9–900 W	12–1200 W	18–1800 W
Processing Capacity	0.2–500 ml	0.5–700 ml	3–1000 ml	10–1500 ml
Standard Probe	6 mm	10 mm	20 mm	22 mm
Optional Probes	2/3/6/8/10/12 mm	6/8/10/12/15 mm	10/15/20/22 mm	6/8/10/15/20/25 mm
Display	7 inch color touchscreen
Temperature Range	0–100°C
Timer Range	0.1 – 999.9 s
Data Storage	20 methods
Waveform Display	Pulse, frequency and time
Alarm System	Time, overload, no-load, over-temperature
Power Supply	AC 220V / 50/60Hz
Soundproof Enclosure Dimensions	355 × 355 × 545 mm
Packing Dimensions	490 × 320 × 450 mm / 480 × 320 × 450 mm / 490 × 325 × 450 mm
Gross Weight	32 kg (approx.)

Applications

Cell disruption and lysis in biotechnology and microbiology
Nanomaterial dispersion and emulsification
Protein extraction and DNA/RNA preparation
Pharmaceutical formulation and chemical synthesis
Food processing and cosmetic applications
Material science and industrial processing
