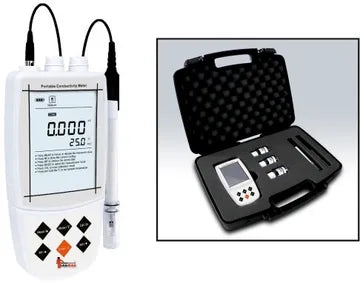

Portable Conductivity Meter LMCM2P (Auto Range, USB Interface)
Portable Conductivity Meter LMCM2P (Auto Range, USB Interface)
Low stock: 10 left
Couldn't load pickup availability
Portable Conductivity Meter LMCM2P is designed for accurate conductivity, TDS, and temperature measurement in laboratory, industrial, environmental, and field testing applications. The handheld instrument combines portable operation with reliable analytical performance for routine water quality analysis.
The meter features automatic ranging conductivity measurement with selectable cell constants (K=0.1/1/10), allowing accurate testing across low and high conductivity samples. It supports 1 to 3-point calibration with automatic conductivity standard recognition for simplified operation and improved accuracy.
LMCM2P provides simultaneous conductivity and TDS analysis with automatic or manual temperature compensation to ensure stable and precise readings under varying sample conditions. Auto-read endpoint detection locks stable measurements for consistent analytical results.
The instrument includes a backlit LCD display for easy viewing, internal memory for storing up to 100 data sets, and USB communication interface for data transfer and external power connectivity. Battery-powered operation and automatic shutdown functions make the meter suitable for portable field analysis.
With compact construction, high measurement flexibility, and multi-parameter capability, LMCM2P is ideal for water treatment plants, environmental monitoring, industrial process control, aquaculture, food processing, educational laboratories, and routine water quality testing.
Key Features
Portable conductivity, TDS, and temperature measurement
Auto-ranging conductivity measurement system
Selectable cell constants K=0.1/1/10
1 to 3-point conductivity calibration
Automatic conductivity standard recognition
Automatic and manual temperature compensation
Auto-read endpoint detection
Backlit LCD display
USB communication interface
Internal memory for up to 100 data sets
Battery and DC adaptor operation
Compact handheld design with carrying case
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductivity Range | 0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm (Auto Range) |
| Conductivity Resolution | 0.01, 0.1, 1 |
| Conductivity Accuracy | ±0.5% F.S. |
| Conductivity Calibration | 1 to 3 Points |
| Conductivity Buffer Options | 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS |
| TDS Range | 0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt |
| TDS Resolution | 0.01, 0.1, 1 |
| TDS Accuracy | ±1% F.S. |
| Temperature Range | 0 to 105°C / 32 to 221°F |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.5°C / ±0.9°F |
| Temperature Compensation | 0 to 100°C / 32 to 212°F, Manual or Automatic |
| Conductivity Cell | Cell Constant K=0.1 / 1 / 10 |
| Display | LCD with White Backlight |
| Hold Function | Yes |
| Auto Power OFF | 15 Minutes, If Not in Use |
| Memory | Stores up to 100 Data Sets |
| Interface | USB |
| Connector | 6-pin Mini-DIN, 3.5 mm Jack Socket |
| Power Supply | 3 × 1.5V AA Batteries or 5V DC Power Adaptor |
| Dimensions (L×W×H) | 350 × 90 × 300 mm |
| Weight | 1 kg |
Applications
Portable water quality testing
Environmental monitoring and field analysis
Industrial process water testing
Aquaculture and hydroponics
Food and beverage quality control
Educational and research laboratories
Routine conductivity and TDS measurement
