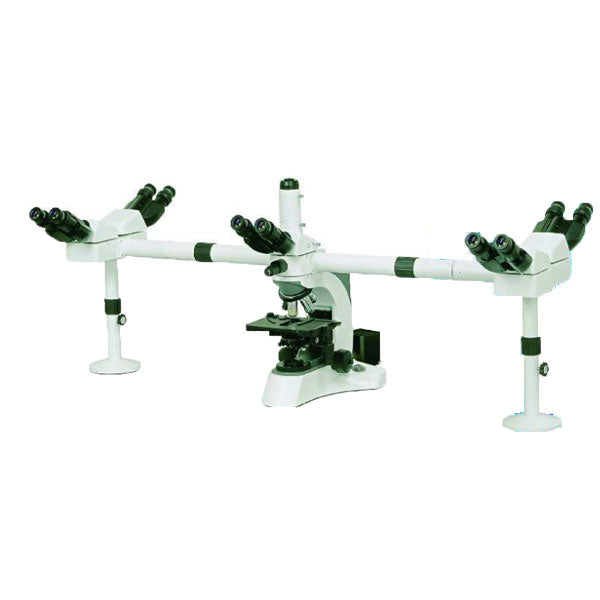

Penta Head Microscope X – 555 Plus
Penta Head Microscope X – 555 Plus
Low stock: 10 left
Couldn't load pickup availability
Penta Head Microscope X-555 Plus is designed for advanced teaching, demonstration, and collaborative laboratory observation. The system supports five users simultaneously through one trinocular head and four binocular heads, making it ideal for medical colleges, training institutes, and research labs. It features an infinite optical system for stable and high-quality imaging, plan achromatic objectives for accurate visualization, and a precision coaxial focusing mechanism. The Kohler illumination system ensures uniform and bright lighting, while the green LED pointer enables clear demonstration for all viewers.
Key Features
Infinite optical system for stable and high-quality image formation
One trinocular head and four binocular heads for multi-user observation
30° inclined and 360° rotatable heads for flexible viewing
Interpupillary adjustment range 18–75 mm and 48–75 mm
EW10X wide-field eyepieces (10 pcs) for clear observation
Inverse quintuple nosepiece for fast and smooth objective switching
Plan achromatic objectives 4X, 10X, 40X, 100X
Double-layer mechanical stage 185 × 142 mm for stable specimen handling
Coaxial coarse and fine focusing with 0.001 mm precision
Swing condenser N.A. 0.97 / 0.25 for illumination control
Kohler illumination with 24V / 100W halogen lamp
Green LED pointer with adjustable brightness for teaching
Stable construction for continuous laboratory and classroom use
Differentiator vs X-555: Infinite optics, higher precision focusing and Kohler illumination
Best for: medical colleges, pathology labs, training centers and research labs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | X-555 Plus |
| Optical System | Infinite optical system |
| Viewing Heads | 1 trinocular + 4 binocular |
| Head Inclination | 30° inclined, 360° rotatable |
| Interpupillary Distance | 18–75 mm (one head), 48–75 mm (others) |
| Eyepieces | EW10X wide-field (10 pcs) |
| Nosepiece | Inverse quintuple |
| Objectives | Plan achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical |
| Stage Size | 185 × 142 mm |
| Focusing System | Coaxial coarse & fine |
| Fine Focus Precision | 0.001 mm |
| Condenser | Swing condenser N.A. 0.97 / 0.25 |
| Illumination | 24V / 100W halogen, Kohler illumination |
| Pointer | Green LED pointer, adjustable |
| Application | Teaching labs, medical colleges, research labs |
| Country of Origin | India |
Working Principle
The microscope uses a halogen light source with Kohler illumination to provide uniform lighting through the condenser and specimen. The objectives magnify the image, which is distributed across all viewing heads simultaneously. Users adjust the stage and focusing system for clarity, while the LED pointer highlights specific areas for group observation.
Applications
Medical colleges for group microscopy training
Pathology labs for teaching and demonstration
Microbiology and biology departments
Clinical and diagnostic training institutes
Research laboratories requiring shared observation
