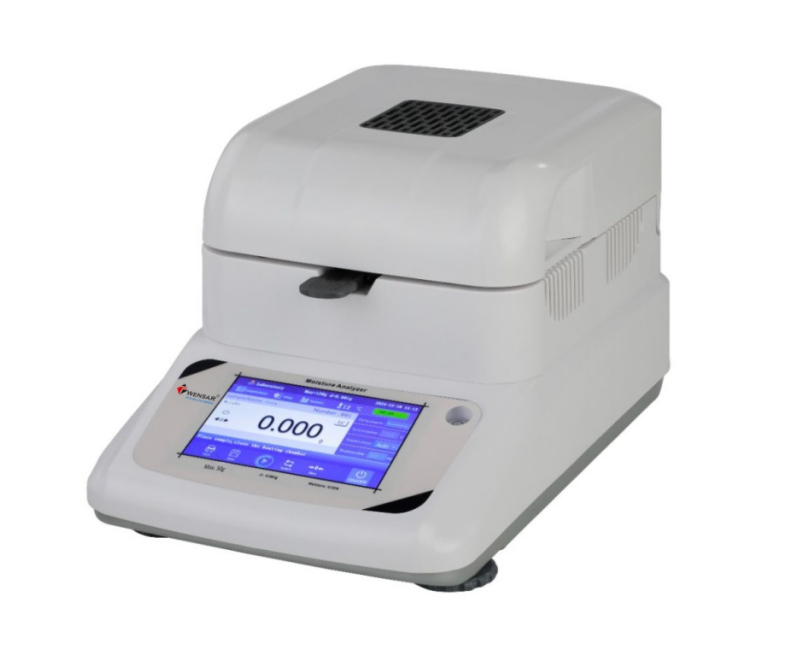

Moisture Analyzer – LMB5 (50g, 1mg Readability, Halogen Heating)

The LMB5 Moisture Analyzer is designed for determining moisture content in laboratory samples using a halogen heating system and precision weighing technology. With a maximum capacity of 50g and readability of 0.001g (1mg), it supports routine moisture analysis and quality control applications.

The instrument features a 5-inch touch screen display, HBM load cell sensor, and multiple drying modes, including Standard, Fast, and Soft. Auto, Timing, and Manual testing modes provide flexibility for different sample types. The built-in memory stores up to 100 data sets, while the graph function, RS232C and USB interfaces, and user ID and password controls support data management and routine laboratory operation.

Key Features

50g maximum weighing capacity.

1mg (0.001g) readability.

Halogen heating system.

5-inch touch screen display.

HBM load cell sensor.

Standard, Fast, and Soft drying modes.

Auto, Timing, and Manual testing modes.

Temperature setting from 50°C to 180°C.

Adjustable drying time from 1 to 99 minutes.

Moisture and dry range from 0 to 100%.

Built-in memory for 100 data sets.

Graph function for result monitoring.

RS232C and USB interfaces.

Aluminium alloy base.

Voice speaker option.

5 user IDs with password protection.

Product Specification Table

Standard Supplies

Main Instrument

SS Pan

Dust Plate

Touch Pen

Pan Supporter

Pan Holder

Power Cable

Instruction Manual

Test Certificate

Applications

Moisture content determination in laboratory samples.

Raw material and finished product quality control.

Food and agricultural sample testing.

Pharmaceutical sample analysis.

Industrial material testing and moisture monitoring.
