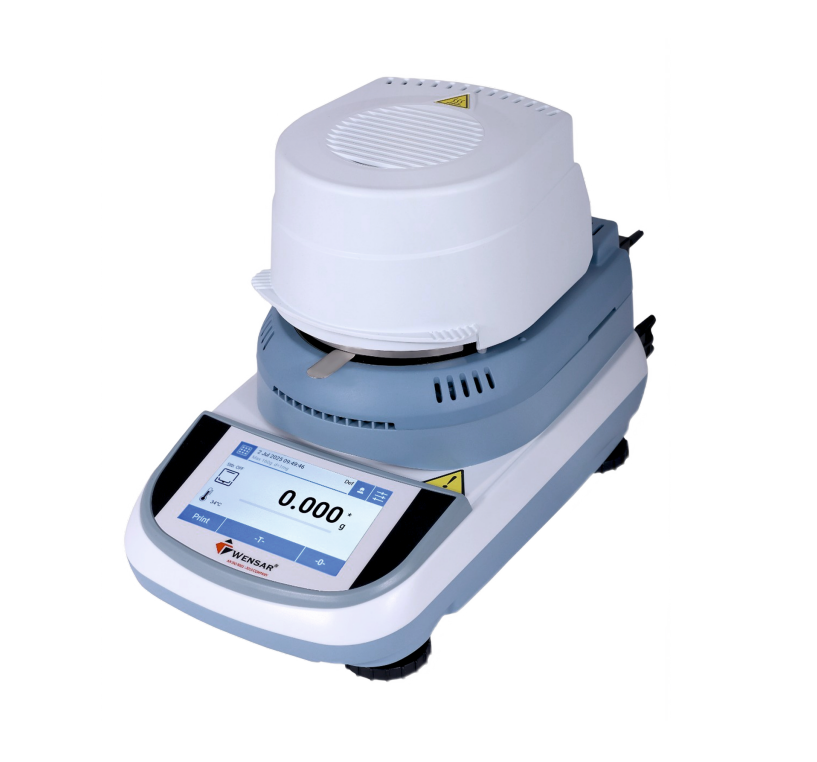

Moisture Analyzer – LMB17T (160g Capacity | 1mg Readability | 5" Touch Screen & Halogen Heating)
Moisture Analyzer – LMB17T (160g Capacity | 1mg Readability | 5" Touch Screen & Halogen Heating)
Low stock: 10 left
Couldn't load pickup availability
LMB17T Moisture Analyzer is an advanced touch screen moisture determination system designed for laboratory, pharmaceutical, food, chemical and industrial quality control applications. The analyzer combines precision weighing technology with halogen heating for fast, accurate and repeatable moisture analysis.
The instrument offers a 160 g weighing capacity with 1 mg readability and features a 5-inch colour touch screen display for intuitive operation and real-time graphical monitoring. It supports moisture %, dry residue %, ATRO and weight analysis for versatile laboratory testing applications.
Equipped with a halogen heating source and adjustable temperature settings from 40°C to 160°C, the analyzer provides efficient moisture testing with standard and rapid heating profiles. The live graph display helps monitor humidity content changes during the drying process for improved analysis accuracy.
The analyzer includes GLP/ISO compliant calibration records, multi-user password protection, product database storage, rapid operation keys and RS232C/USB communication interfaces for efficient workflow integration and data management.
Key Features
5" touch screen 800×480 colour display
Halogen heating system
GLP / ISO calibration record storage
Standard and rapid heating modes
Temperature range from 40°C to 160°C
Temperature profiles: standard, fast, mild and steps

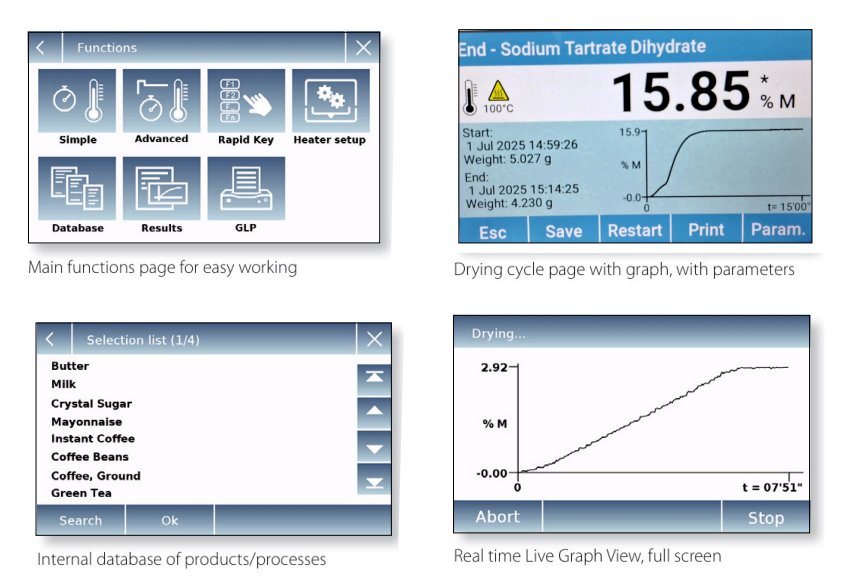

Live graph for humidity content monitoring
Database storage for up to 30 products
Stores up to 3000 reports
Multi-user password protection
Rapid key operation and sample preheating
RS232C and USB communication
Loadcell based weighing system
Date and time display
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 160 g |
| Readability | 0.001 g (1 mg) |
| Repeatability | 0.001 g (1 mg) |
| Linearity (±) | 0.002 g |
| Display | 5" Touch Screen Colour Display |
| Display Results | Moisture %, Dry Residue %, ATRO, Weight |
| Printout Results | Date, Time, Instrument ID, User ID, Project ID, Temp., Mode, Moisture %, Signature |
| Pan Size | 100 mm |
| Sensor | Loadcell |
| Calibration | External |
| Operating Temperature | 5°C – 35°C |
| Heating Source | Halogen Lamp |
| Interface | RS232C, USB |
| Temperature Profiles | Standard and Rapid |
| Temperature Setting | 40°C – 160°C |
| Temperature Step | 1°C |
| Time Setting | Time (1–99 min) / Autostop |
| Dry Readability | 0.01% |
| Memory | 3000 |
| Database | 30 Products |
| Rapid Key | 10 Key |
| Power Supply | AC 220V / 50–60 Hz |
| Packing Dimension (L×W×H) | 450 × 285 × 390 mm |
| Gross Weight | 7 kg |
Applications
Food moisture analysis
Pharmaceutical laboratories
Chemical and research laboratories
Agriculture and grain testing
Plastic and polymer testing
Powder and raw material analysis
Industrial quality control laboratories
Paper and textile industry
Moisture determination in production processes
Scientific laboratory moisture testing
