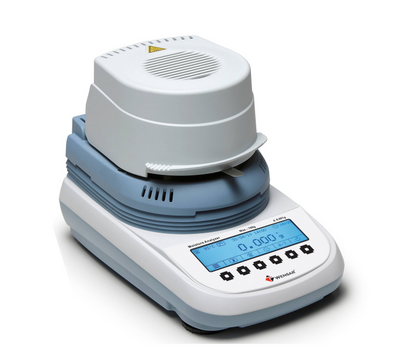

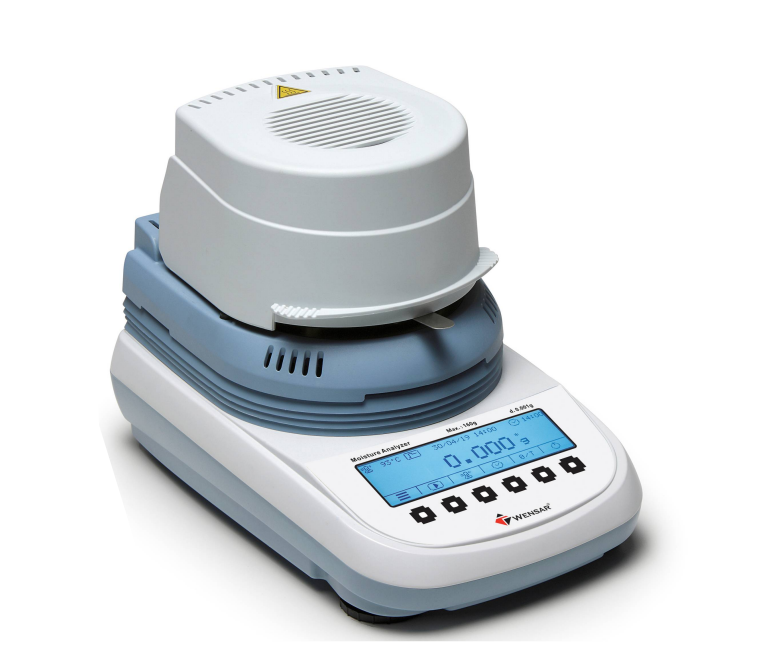

Moisture Analyzer – LMB16 (160g Capacity | 1mg Readability | Halogen Heating & Graphic Display)
Moisture Analyzer – LMB16 (160g Capacity | 1mg Readability | Halogen Heating & Graphic Display)
Low stock: 10 left
Couldn't load pickup availability
LMB16 Moisture Analyzer is a precision laboratory moisture determination instrument designed for fast, reliable and repeatable moisture analysis across research, industrial and quality control environments. Combining loadcell-based weighing technology with halogen heating, the analyzer delivers accurate moisture percentage and dry residue measurements for routine and advanced laboratory workflows.
The instrument offers a 160 g capacity with 1 mg readability, supported by a large graphic display with backlight for clear parameter monitoring and result visualization. Its dual operating profiles—Standard and Rapid—allow users to optimize testing speed and sample heating conditions according to application requirements.
LMB16 features automatic external calibration, configurable temperature settings from 40°C to 160°C, moisture result reporting and integrated GLP/ISO record management for calibration traceability. RS232C connectivity enables efficient data export and documentation for regulated environments.
Designed for scientific laboratories and industrial process monitoring, LMB16 supports dependable moisture analysis with user-friendly operation and multilingual functionality.
Key Features
Halogen heating system
Large graphic display with backlight
Loadcell-based weighing technology
GLP / ISO record of stored calibration data
Dual heating modes – Standard and Rapid
Temperature range from 40°C to 160°C
RS232C communication interface
Multi-language support
Pre-heating on/off function
Date and time function
Automatic external calibration
Moisture and dry residue analysis
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LMB16 |
| Capacity | 160 g |
| Readability | 0.001 g (1 mg) |
| Repeatability | 0.001 g (1 mg) |
| Linearity (±) | 0.002 g |

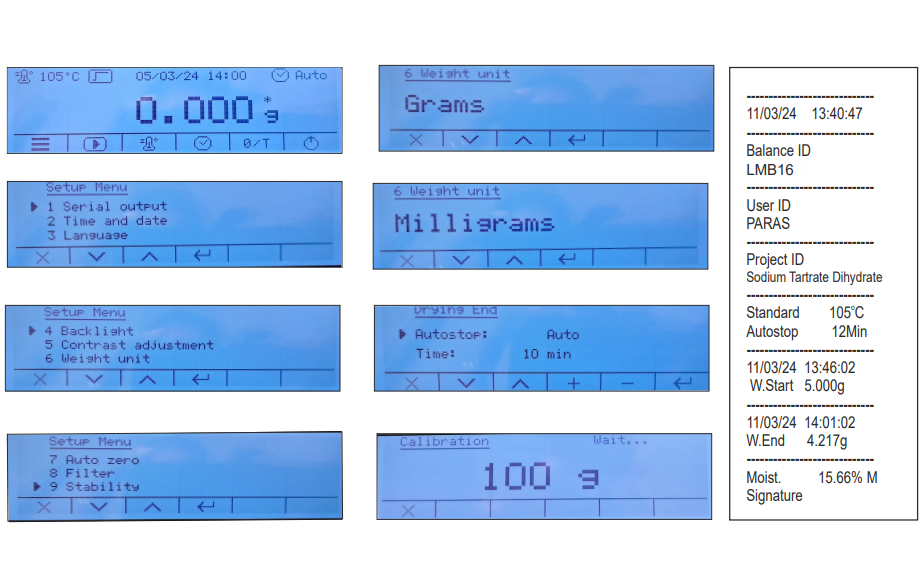

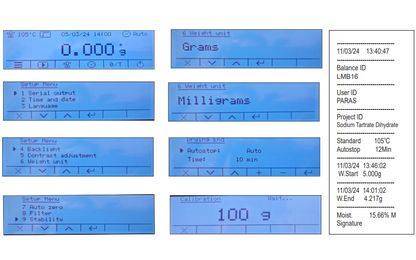

| Display | Graphic Display with Back Light |
| Display Results | Moisture %, Dry Residue %, ATRO, Weight |
| Printout Results | Date, Time, Instrument ID, User ID, Project ID, Temperature, Mode, Moisture %, Signature |
| Pan Size | 100 mm |
| Sensor | Loadcell |
| Calibration | Automatic External |
| Operating Temperature | 5°C–35°C |
| Heating Source | Halogen Lamp |
| Interface | RS232C |
| Temperature Profiles | Standard and Rapid |
| Temperature Setting | 40°C–160°C |
| Temperature Step | 1°C |
| Time Setting | 1–99 min / Autostop |
| Dry Readability | 0.01% |
| Aluminium Sample Pan | 10 pcs |
| Power Supply | AC 220V / 50–60 Hz |
| Dimensions (L×W×H) | 450 × 280 × 390 mm |
| Gross Weight | 7 kg |
Applications
Moisture determination laboratories
Food and beverage testing
Agriculture and grain analysis
Pharmaceutical laboratories
Chemical and petrochemical testing
Plastic and polymer moisture analysis
Paper and pulp industry
Textile laboratories
Research and quality control laboratories
Raw material inspection
Industrial production monitoring
