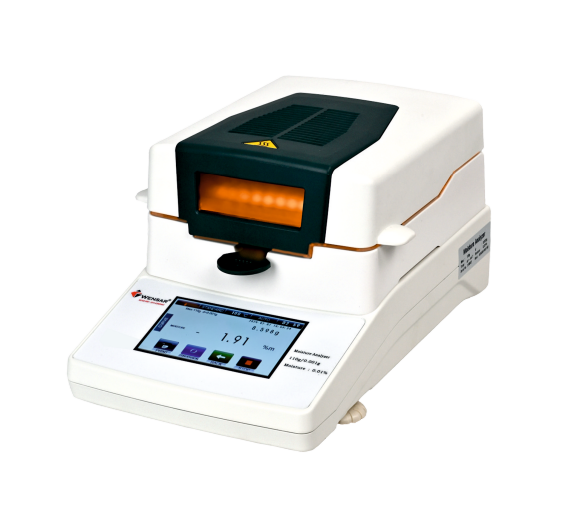

LMB1 and LMB1IR Moisture Analyzers are precision moisture determination instruments designed for laboratory, research, food, chemical and industrial moisture analysis applications. These analyzers combine accurate weighing performance with controlled heating technology to deliver reliable moisture measurement and fast testing results.
The instruments feature a 110 g weighing capacity with 1 mg readability and a user-friendly touch screen interface for convenient operation and parameter management. LMB1 operates using a halogen lamp heating system, while LMB1IR uses an infrared lamp heating source, allowing users to select the most suitable heating technology for different sample types.
The analyzers support moisture %, dry %, residual curve analysis and historical storage functions to improve testing repeatability and process monitoring. Adjustable temperature and time settings provide flexibility for a wide range of moisture testing requirements.
Equipped with loadcell sensing technology, RS232 communication and multiple testing modes, LMB1 and LMB1IR are suitable for routine laboratory and industrial moisture analysis workflows.
Key Features
Halogen lamp heating system (LMB1)
Infrared lamp heating system (LMB1IR)

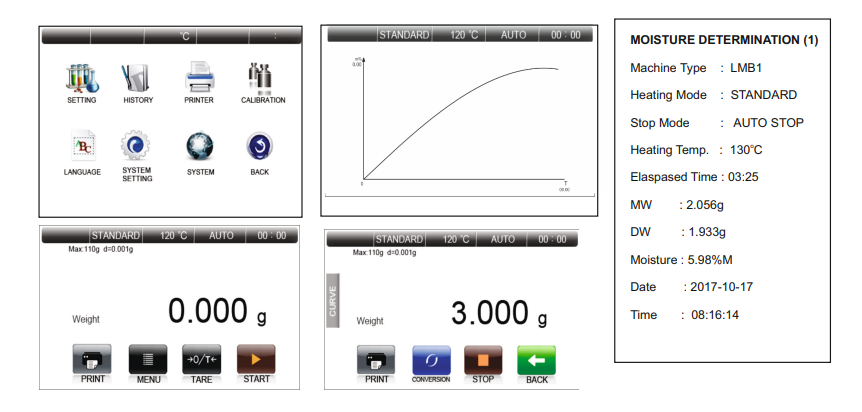

Touch screen display
Loadcell sensor technology
Adjustable temperature and time settings
Moisture percentage measurement
Dry percentage determination
Residual curve (graph) analysis
Historical setting storage
RS232C communication interface
Fast moisture testing performance
User-friendly operation
Technical Specifications
| Parameter | LMB1 | LMB1IR |
|---|---|---|
| Heating Source | Halogen Lamp | Infrared Lamp |
| Temperature Setting | 40°C–199°C | 40°C–160°C |
| Capacity | 110 g | 110 g |
| Readability | 1 mg | 1 mg |
| Repeatability | 1 mg | 1 mg |
| Linearity (±) | 3 mg | 3 mg |
| Display | Touch Screen | Touch Screen |
| Pan Size | 90 mm Ø | 90 mm Ø |
| Sensor | Loadcell | Loadcell |
| Calibration | External | External |
| Operating Temperature | 5°C to 35°C | 5°C to 35°C |
| Temperature Sensor | PT-100 | PT-100 |
| Interface | RS232C | RS232C |
| Temperature Step | 1°C | 1°C |
| Time Setting | 1–99 minutes | 1–99 minutes |
| Dry Readability | 0.01% | 0.01% |
| Dry Range | 100.00%–0.00% | 100.00%–0.00% |
| Curve Function | Yes | Yes |
| Aluminium Sample Pan | Available | Available |
| Storage Capacity | 20 | 20 |
| Power Supply | AC 220V / 50–60 Hz | AC 220V / 50–60 Hz |
| Packing Dimensions (L×W×H) | 485 × 340 × 355 mm | 485 × 340 × 355 mm |
| Gross Weight | 7 kg | 7 kg |
Applications
Moisture analysis laboratories
Food industry testing
Agriculture and grain testing
Chemical laboratories
Pharmaceutical laboratories
Plastic and polymer testing
Paper industry testing
Sugar processing applications
Raw material moisture determination
Quality control laboratories
Research laboratories
Industrial moisture testing
