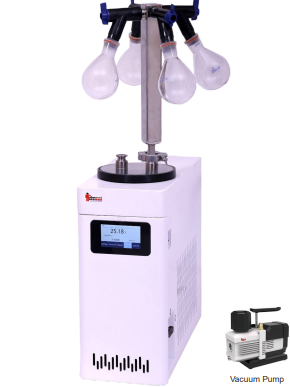

Mini Freeze Dryer – LMFD160F (-60°C | 1–1.8 L/24h Ice Condenser Capacity | 4.3" Touch Screen)
Mini Freeze Dryer – LMFD160F (-60°C | 1–1.8 L/24h Ice Condenser Capacity | 4.3" Touch Screen)
Low stock: 10 left
Couldn't load pickup availability
The LMFD160F Mini Freeze Dryer is a compact freeze-drying system designed for small-scale experimental applications. It removes water from frozen materials through sublimation using controlled vacuum and low-temperature condensation.
The system features a -60°C condenser, single-cascade refrigeration system, Tree Type 4 Manifold Valve and 250 ml flask capacity. A 4.3-inch touch screen displays condenser temperature, sample temperature and vacuum conditions.
The LMFD160F incorporates a high-precision vacuum gauge and heating-coil defrost system. The DSVP57 double-stage oil-lubricated rotary vane vacuum pump is specified as the standard supply.
Key Features
Small-scale experimental freeze drying
-60°C condenser temperature
1–1.8 L/24h ice condenser capacity
4.3" touch screen display
Tree Type 4 Manifold Valve
High-precision vacuum gauge
Single Cascade refrigeration system
Heating Coil defrost
Compact design
Technical Specifications
| Parameter | Specification |
|---|---|
| Ice Condenser Capacity | 1–1.8 L / 24h |
| Condenser Temperature | -60°C |
| Freeze Dryer Configuration | Tree Type 4 Manifold Valve |
| Flask Size | 250 ml × 4 nos |
| Vacuum Pressure | <1 Pa (standard <5 Pa) |
| Refrigeration System | Single Cascade |
| Display | 4.3" Touch Screen |
| Ambient Temperature | 15°C to 25°C |
| Relative Humidity | ≤70% |
| Defrost | Heating Coil |
| Vacuum Pump | Standard Supply (DSVP57) |
| Vacuum Pump Type | Double Stage Oil-Lubricated Rotary Vane Vacuum Pump |
| Vacuum Pump Rotary Speed | 1400 RPM |
| Vacuum Pump Oil Capacity | 600 ml |
| Vacuum Pump Noise Level | 57 dB |
| Power Supply | AC 220–240 V / 50 Hz |
| Vacuum Pump Weight | 17 kg |
| Vacuum Pump Packing Dimensions | 350 × 140 × 310 mm |
| Accessories Box Weight | 9 kg |
| Accessories Box Packing Dimensions | 470 × 315 × 555 mm |
| Machine Size (without Tree) | 530 × 250 × 485 mm |
| Main Unit Packing Dimensions | 570 × 250 × 530 mm |
| Net Weight – Main Unit | 29 kg |
| Total Gross Weight (3 Boxes) | 34 + 17 + 9 = 60 kg |
Applications
Small-scale experimental freeze drying
Laboratory freeze drying
Research and development
Sample preservation
Manifold freeze drying
Flask freeze drying
Standard Accessories
Main Instrument
Top Glass with Holder
Valve Rubber
Vacuum Pump (DSVP57)
Vacuum Pump Tube
250 ml Flask
Vacuum Pump Oil 300 ml & 200 ml
Point-to-Point Power Cord
Tree Type 4 Manifold Valve
Instruction Manual
Test Certificate
