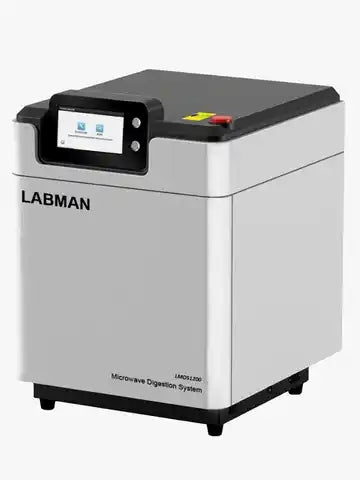

Microwave Digestion System LMDS600 / LMDS1200 (Up to 400°C, 15 MPa, 6/12 Vessels)
Microwave Digestion System LMDS600 / LMDS1200 (Up to 400°C, 15 MPa, 6/12 Vessels)
Low stock: 10 left
Couldn't load pickup availability
Microwave Digestion System LMDS600 / LMDS1200 is designed for high-performance sample preparation in analytical laboratories requiring fast, uniform, and contamination-free digestion. Utilizing controlled microwave energy, the system ensures efficient decomposition of complex samples for applications in environmental analysis, pharmaceuticals, petrochemicals, food testing, and material science.
The system features precise control over temperature and pressure with contactless monitoring, ensuring safety and reproducibility. Its vertical microwave distribution design guarantees uniform heating across all vessels, while the robust construction enhances durability and operational safety.
With a user-friendly touchscreen interface and programmable methods, it supports flexible workflows for both routine and advanced analytical procedures.
Key Features
Uniform microwave distribution with vertical cavity design
Real-time monitoring of temperature and pressure for each vessel
Contactless IR temperature sensing for accurate control
High-pressure digestion capability up to 15 MPa
Adjustable microwave power up to 1000 W
Available in 6-vessel (LMDS600) and 12-vessel (LMDS1200) configurations

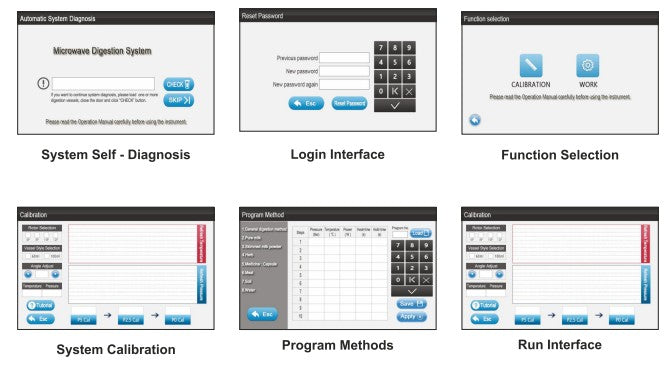

7-inch touchscreen interface with method programming
Robust CFRP outer shell for impact resistance
High-quality vessel materials for chemical resistance and safety
Pre-installed and customizable digestion methods
Efficient air exhaust system for safe operation
Technical Specifications
| Parameter | LMDS600 | LMDS1200 |
|---|---|---|
| Vessel Capacity | 6 | 12 |
| Temperature Range | 50°C – 400°C | 50°C – 400°C |
| Temperature Accuracy | ±0.1°C | ±0.1°C |
| Pressure Range | 0 – 15 MPa | 0 – 15 MPa |
| Pressure Accuracy | ±0.01 MPa | ±0.01 MPa |
| Vessel Volume | 100 ml | 100 ml |
| Vessel Material | TFM (modified PTFE) | TFM (modified PTFE) |
| Protection Vessel | PEEK + Glass Fiber | PEEK + Glass Fiber |
| Rotation | 360° continuous | 360° continuous |
| Display | 7" Touchscreen | 7" Touchscreen |
| Microwave Power | 0 – 1000 W adjustable | 0 – 1000 W adjustable |
| Microwave Leakage | <5 mW/cm² | <5 mW/cm² |
| Exhaust System | High power air blower | High power air blower |
| Power Supply | AC 220V ±10%, 50/60Hz | AC 220V ±10%, 50/60Hz |
| Dimensions | 715 × 630 × 815 mm | 715 × 630 × 815 mm |
| Weight | 62 kg | 78 kg |
Applications
Environmental sample digestion
Pharmaceutical and chemical analysis
Food and agriculture testing
Geology and mining analysis
Material characterization and research labs
