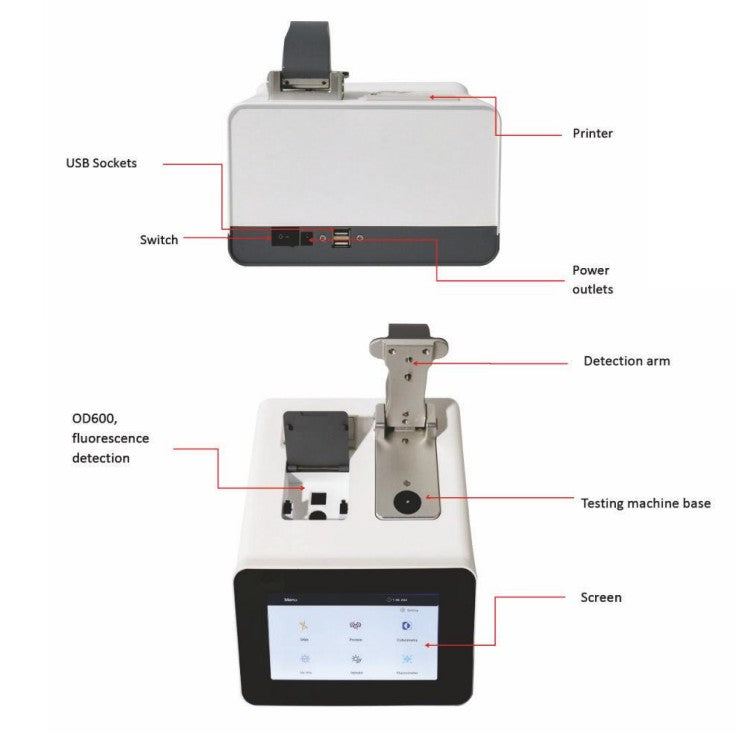

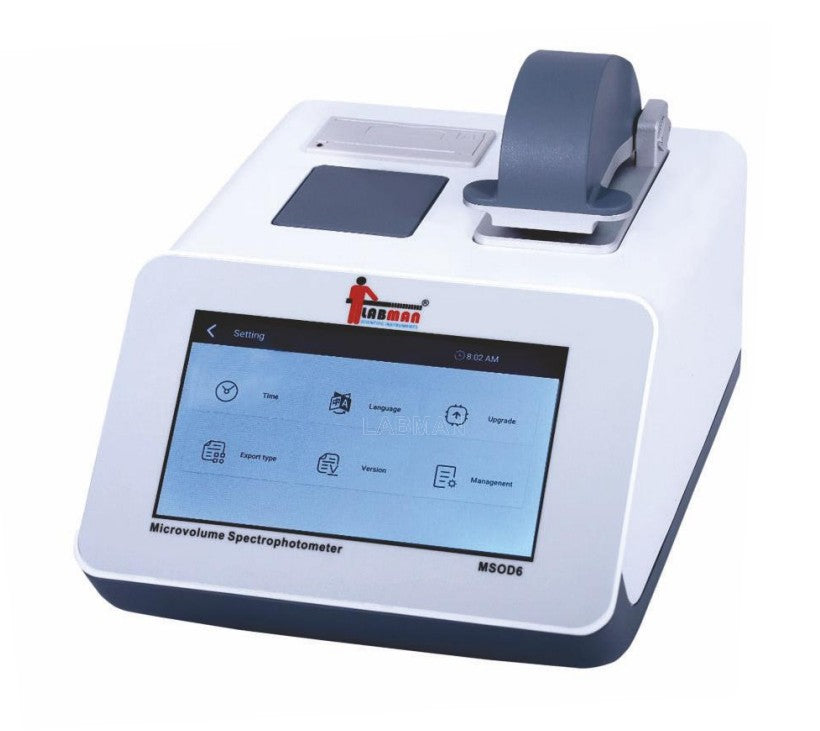

Microvolume Spectrophotometer MSOD6 (Biophotometer)

The MSOD6 is a high-performance Microvolume Spectrophotometer and Biophotometer designed for the precise quantification of nucleic acids, proteins, and cell cultures using microliter-range sample volumes. By requiring only 0.5 to 2 $\mu$L of sample, this instrument allows researchers to analyze precious samples with high accuracy while eliminating the need for cuvettes or capillaries in most assays.

Technically, the MSOD6 features a full-wavelength scanning range of 190–850nm and utilizes four optical paths to ensure linearity across varying concentrations. It integrates a Xenon flash lamp and UV-enhanced CMOS sensors for rapid measurements in under 6 seconds. The built-in Android operating system and 7-inch touch screen provide an intuitive interface for Nucleic Acid Testing (dsDNA range 2-27500ng/$\mu$L), Protein Analysis, OD600 measurement, and Kinetics. Additionally, the unit features built-in fluorescence detection for sensitive quantification of DNA and RNA using fluorescent dyes.

Key Features

Microvolume Spectrophotometer has full wavelength detection 190-850nm.

4 Optical path detection Technology Mode, Stability Repeatability, Linearity

OD600 measurement optical path detection system, Nucleic Acid Test, Protein Analysis, Colorimetric Method UV-Vis Detection, Kinetics

Fluorescence quantitative reagent can detect pg concentration dsDNA

Micro Sample Volume can accurately detect nucleic acid, protein, and cell solutions using only 0.5 to 2 $\mu$L of sample.

Cuvette Mode for bacteria and other culture fluid concentration detection.

Fluorescence detection for precise quantification of DNA, RNA, and protein concentrations using fluorescent dyes.

Nucleic acid assays can be performed by directly spotting the sample onto the spiking plate eliminating the need for colorimetric cups or capillaries.

Quick and simple measurement steps.
