Micro Balance – TAB21T, TAB61T (2.1g / 6.1g, 0.001mg Readability, Internal Calibration)
Micro Balance – TAB21T, TAB61T (2.1g / 6.1g, 0.001mg Readability, Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability

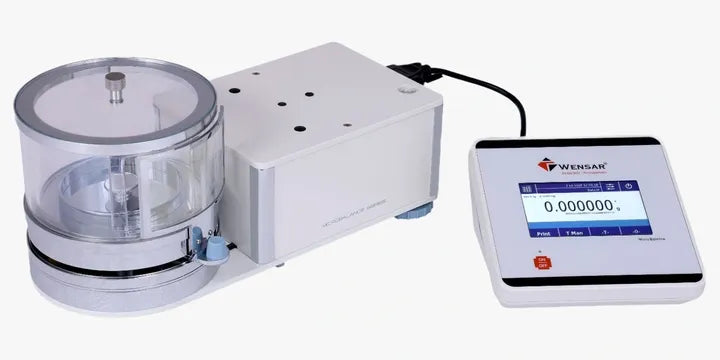

The TAB21T and TAB61T Micro Balances are high-precision laboratory weighing instruments designed for applications requiring microgram-level readability. The models provide maximum capacities of 2.1g and 6.1g respectively, with a readability of 0.001mg.

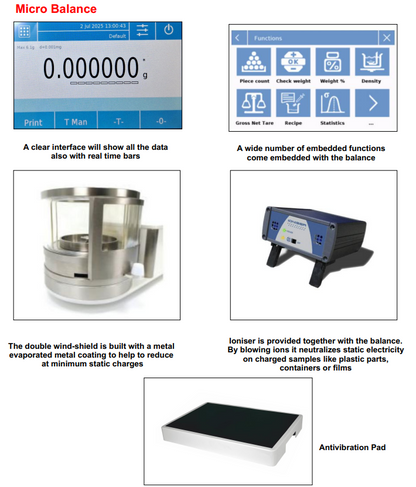

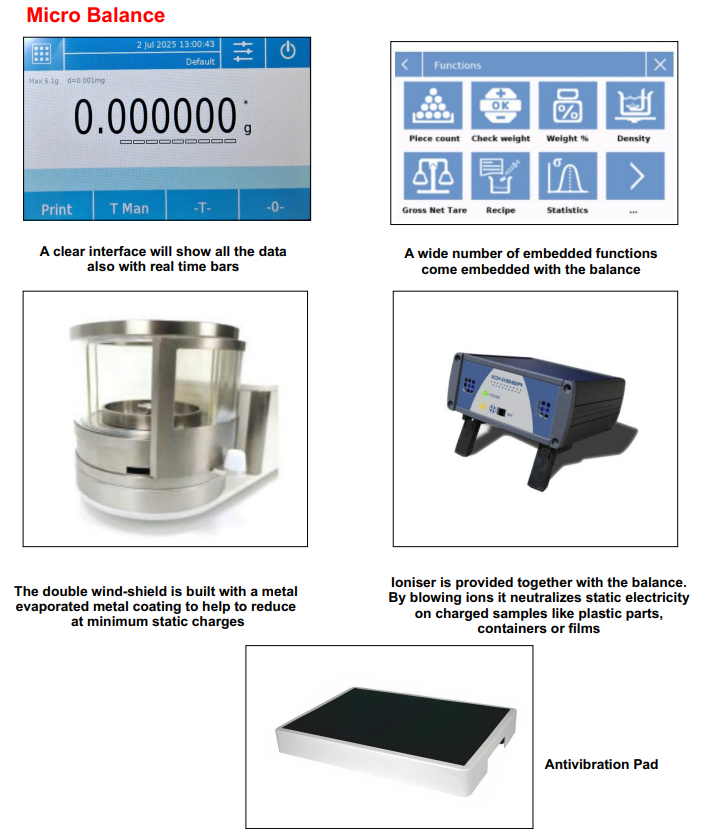

Both models feature a 5" touch screen display, automatic internal calibration, double wind shield, external ionizer for static charge elimination, multi-user password protection, and RS232C and USB interfaces. Embedded functions include formulation, GLP, piece counting, animal weighing, percentage weighing, totalizing, and threshold weighing.
Key Features
2.1g and 6.1g maximum capacity options.
0.001mg readability.
0.004mg repeatability.
0.005mg linearity.
Automatic internal calibration.
5" touch screen display.
Double wind shield for protection against ventilation and temperature variation.
External ionizer for eliminating static charges.
Formulation and GLP functions.
Advanced piece-counting function.
Animal weighing function.
Percentage weighing function.
Totalizing (Add) function.
Threshold function with High & Low settings.
Multi-user password protection.
Date & time function.
Multiple weighing units.
RS232C and USB interfaces.
Product Specification Table
| Specification Detail | TAB21T | TAB61T |
|---|---|---|
| Maximum Capacity | 2.1g | 6.1g |
| Readability (d) | 0.001mg | 0.001mg |
| Repeatability | 0.004mg | 0.004mg |
| Linearity (±) | 0.005mg | 0.005mg |
| Calibration | Internal Calibration | Internal Calibration |
| Display | 5" Touch Screen Display | 5" Touch Screen Display |
| Indicator Dimension (L x W x H) | 173 x 180 x 92mm | 173 x 180 x 92mm |
| Distance Pan / Top Windshield | 75mm | 75mm |
| Windshield Internal Diameter | 165mm | 165mm |
| Response Time | ≤ 8Sec | ≤ 8Sec |
| Pan Size | 30mm | 30mm |
| Tare Range | Full | Full |
| Operating Temperature | 18°C to 24°C | 18°C to 24°C |
| Weighing Chamber Size | 165 x 165 x 75mm | 165 x 165 x 75mm |
| Unit | g, mg, oz, ct, lb, ozt, dwt, GN, K1, K2, K3 | g, mg, oz, ct, lb, ozt, dwt, GN, K1, K2, K3 |
| Baud Rate Options | 1200, 2400, 4800, 9600, 19200, 38400 | 1200, 2400, 4800, 9600, 19200, 38400 |
| Interface | RS232C, USB | RS232C, USB |
| Power Supply | Adaptor, Using AC220V/50-60Hz | Adaptor, Using AC220V/50-60Hz |
| Packing Dimension (L x W x H) | 555 x 385 x 470mm | 555 x 385 x 470mm |
| Gross Weight | 11kg | 11kg |

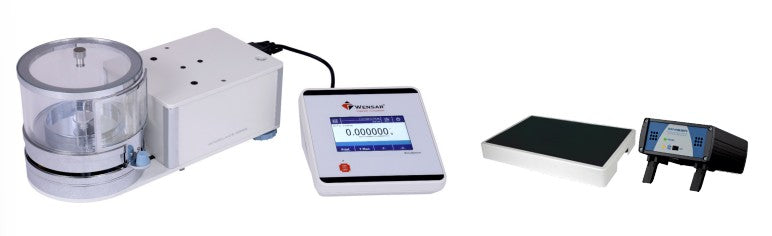

Standard Supplies
Main Instrument
Weighing PAN
Ring
Power Adaptor
Antivibration Pad
Ionizer
Instruction Manual
Test Certificate
Applications
Microgram-level laboratory weighing.
Precision sample weighing.
Formulation applications.
Piece-counting weighing.
Animal weighing.
Percentage weighing.
Totalizing and threshold weighing.
