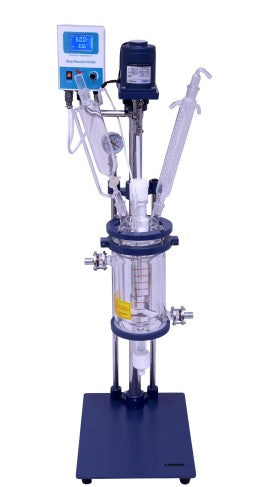

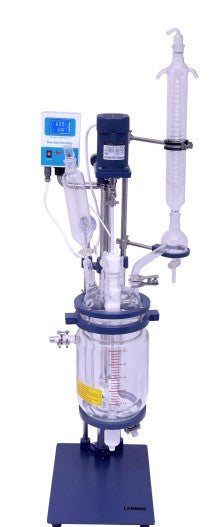

Jacketed Glass Reactor – JGR2L / JGR5L (2L & 5L Capacity | High Borosilicate Glass | SS304 Frame)

JGR2L and JGR5L Jacketed Glass Reactors are compact laboratory reactors designed for temperature-controlled chemical processes requiring precise heating and cooling circulation. Constructed with high borosilicate glass and SS304 stainless steel frame, the reactors provide excellent chemical resistance and durability for research and production environments.

The reactors feature frequency-controlled variable speed stirring with ceramic bearing and mechanical seal construction for stable and reliable mixing. PTFE sealing materials ensure chemical compatibility, while the multi-port reactor lid allows convenient addition of reagents, condenser connections and temperature sensing.

JGR2L offers a 2 L vessel capacity with 40 W motor, whereas JGR5L provides 5 L capacity with a 90 W motor for higher throughput applications. Both models support operation over a wide temperature range from -80°C to +250°C, making them suitable for synthesis, extraction, distillation and concentration processes.

JGR2L and JGR5L Jacketed Glass Reactors are widely used in pharmaceutical laboratories, chemical industries, academic institutions and R&D facilities requiring controlled reaction conditions and process visibility.

Key Features

Jacketed glass reactor design

Laboratory-scale operation

High borosilicate glass construction

SS304 stainless steel frame

Wide temperature operating range

Frequency-controlled stirring system

Stepless speed adjustment

Ceramic bearing and mechanical seal

PTFE sealing material

Multiple ports for flexible operation

Clear process visibility

Vacuum operation capability

Integrated condenser connection

Temperature sensor provision

Suitable for heating and cooling circulation

Technical Specifications
