High Speed Automatic Polarimeter ADP95CFR (Single Wavelength 589 nm, ±0.004° Accuracy, Peltier Control)
High Speed Automatic Polarimeter ADP95CFR (Single Wavelength 589 nm, ±0.004° Accuracy, Peltier Control)
Low stock: 10 left
Couldn't load pickup availability
High Speed Automatic Polarimeter ADP95CFR is a precision analytical instrument designed for accurate measurement of optical rotation, specific rotation, sugar concentration, and related parameters in optically active substances. Operating at a fixed wavelength of 589 nm, it delivers highly stable and repeatable results across routine and advanced laboratory applications.
The instrument incorporates an advanced control system with Android-based interface, enabling intuitive operation through a large touchscreen display. Built-in Peltier temperature control ensures consistent sample conditions, enhancing measurement reliability.
With compliance to GMP, GLP, and 21 CFR Part 11 standards, along with large internal storage and automated calibration, the system is ideal for regulated environments such as pharmaceutical quality control and research laboratories.
Key Features
Single wavelength operation at 589 nm for stable measurements
High accuracy up to ±0.004° with excellent repeatability
Advanced Peltier temperature control for precise thermal stability

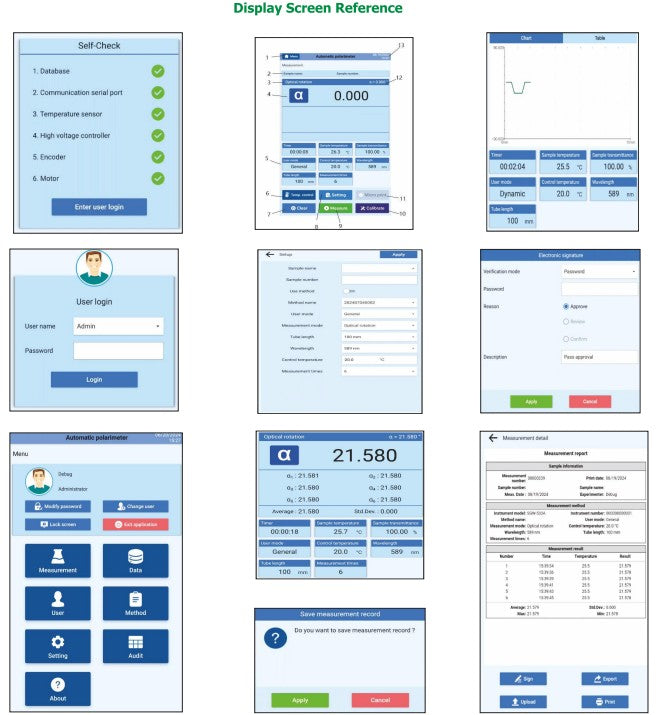

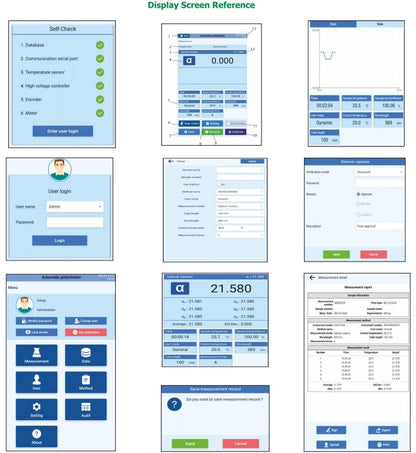

Android-based operating system with intuitive interface
10.1-inch color touchscreen display
Multiple measurement modes including optical rotation and sugar analysis
Multipoint automatic calibration for enhanced accuracy
Large internal storage up to 128GB
Fast measurement with high response speed
21 CFR Part 11 compliance for secure data management
USB and RS232 connectivity for data transfer
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | ±90° Optical Rotation, ±259°Z Sugar |
| Minimum Reading | 0.001° |
| Accuracy | ±0.004° |
| Repeatability | ±0.002° |
| Wavelength | 589 nm |
| Light Source | LED |
| Measurement Speed | 6 measurements / 26 sec |
| Response Speed | 8°/sec |
| Temperature Control | Peltier (In-built) |
| Temperature Range | 10°C – 50°C |
| Temperature Accuracy | ±0.2°C |
| Display | 10.1" Color Touchscreen |
| Memory | 128GB |
| Software | In-built |
| Compliance | GMP / GLP / 21 CFR Part 11 |
| Interface | USB, RS232 |
| Test Tube Length | 100 mm & 200 mm |
| Dimensions | 870 × 520 × 475 mm |
| Weight | 34 kg |
Applications
Pharmaceutical analysis and quality control
Sugar and food industry testing
Chemical and petrochemical laboratories
Academic and research institutions
Optical activity and concentration measurement
