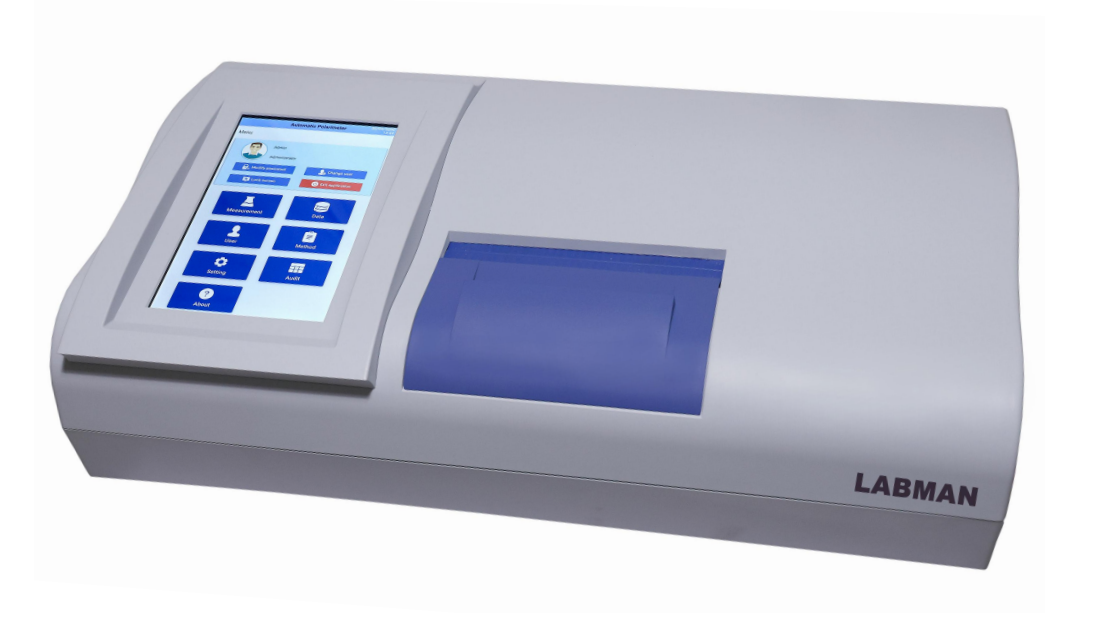

High Speed Automatic Polarimeter – ADP400CFR, ADP100CFR (589nm / Dual Wavelength, Automatic Calibration, Peltier Temperature Control)

Rs. 644,000.00

Sale Sold out

Shipping calculated at checkout.

Model ADP400CFR ADP100CFR

Low stock: 10 left

Quantity

The ADP400CFR and ADP100CFR High Speed Automatic Polarimeters are designed for optical rotation, specific rotation, sugar, concentration, and user-defined measurements. Both models feature in-built software, Peltier temperature control, multipoint automatic calibration, and a 10.1" colour touchscreen.

The ADP400CFR operates at 589nm with an LED light source, while the ADP100CFR provides dual wavelengths of 589nm/546nm with a Tungsten Halogen Lamp. Both models provide a measuring range of ±90° optical rotation and ±259° sugar, with temperature control from 10°C to 50°C.

The instruments provide in-built software with Android operation and 128GB database storage. Compliance with GMP, GLP and 21CFR Part 11 is specified for both models.

Key Features

High-speed automatic polarimetric measurement.

Optical rotation, specific rotation, sugar and concentration measurement.

ADP400CFR with 589nm LED light source.

ADP100CFR with 589nm/546nm dual wavelength.

In-built Peltier temperature control.

Multipoint automatic calibration.

10.1" colour touchscreen display.

128GB database storage.

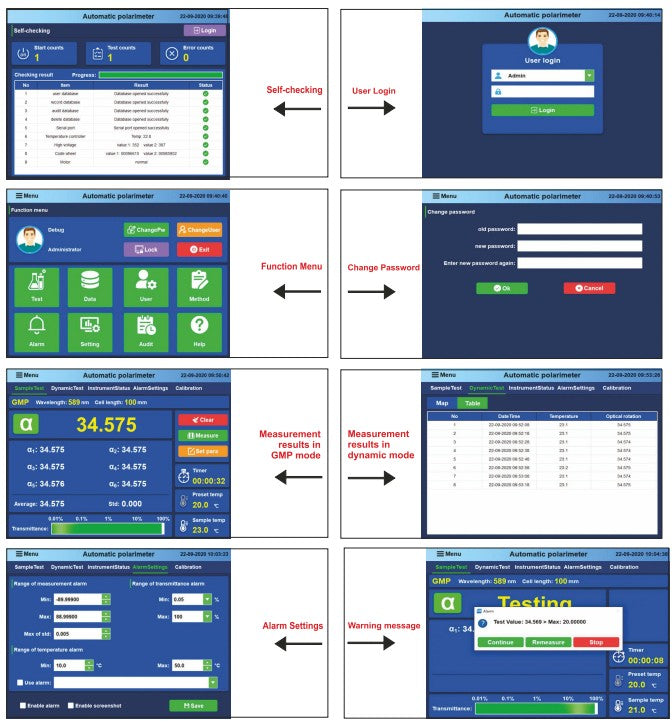

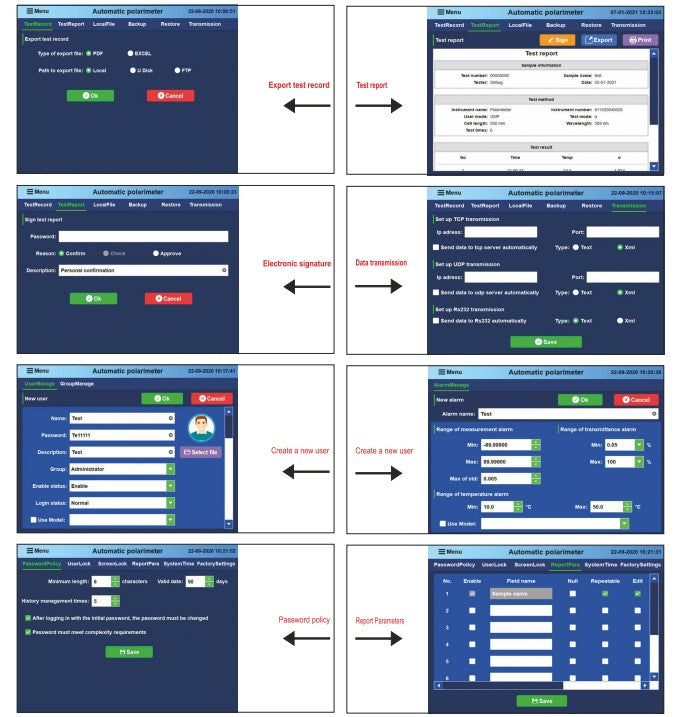

In-built software with Android operating system.

GMP / GLP / 21CFR Part 11 compliance.

Sample temperature control.

RS232 and USB interfaces.

Product Specification Table

Specification Detail	ADP400CFR	ADP100CFR
Operational Wavelength	589nm	589nm/546nm
Minimum Reading	0.0001°	0.0001°
Accuracy	±0.003°	±0.004°
Repeatability	±0.002°	±0.002°
Min. Transmission of Samples	0.01%	0.10%
Light Source	LED	Tungsten Halogen Lamp
Measuring Mode	Optical Rotation, Specific Rotation, Sugar, Concentration, User Define	Optical Rotation, Specific Rotation, Sugar, Concentration, User Define
Measuring Range	±90° Optical Rotation ±259° Sugar	±90° Optical Rotation ±259° Sugar
Response Speed	8°/s	8°/s
Measurement Time	6 times / 26s	6 times / 26s
Temperature Control Mode	Peltier (In-Built)	Peltier (In-Built)
Temperature Control Range	10°C–50°C	10°C–50°C
Temperature Control Accuracy	±0.2°C	±0.2°C
Display	10.1" Colour Touchscreen	10.1" Colour Touchscreen
Calibration Method	Multipoint - Automatic Calibration	Multipoint - Automatic Calibration
Memory	128GB Database	128GB Database
Compliance with Regulations	GMP / GLP / 21CFR PART 11	GMP / GLP / 21CFR PART 11
Frequently Used Method	300	300
Software	In Built	In Built
Operation System	Android	Android
Sample Temperature Control	Yes	Yes
Length of Test Tube	100mm & 200mm	100mm & 200mm
Test Tubes	200mm, 100mm (regular), 100mm (temp control)	200mm, 100mm (regular), 100mm (temp control)
Interface	RS232, USB, Keyboard / Mouse / VGA / Ethernet / Optical wireless card for internet access	RS232, USB, Keyboard / Mouse / VGA / Ethernet / Optical wireless card for internet access
Packing Dimension (L x W x H)	865 x 515 x 470mm	865 x 515 x 470mm
Gross Weight	36kg	36kg
