Gradient PCR Thermal Cycler GPTC96 (96-Well, 0–105°C, Gradient 30–105°C)
Gradient PCR Thermal Cycler GPTC96 (96-Well, 0–105°C, Gradient 30–105°C)
Low stock: 10 left
Couldn't load pickup availability

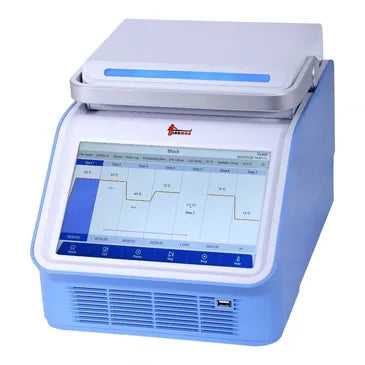

Gradient PCR Thermal Cycler GPTC96 is designed for accurate and efficient DNA and RNA amplification across a wide range of molecular workflows. It features a high-performance temperature control system with rapid heating and cooling, ensuring precise thermal cycling. The gradient function allows simultaneous optimization of annealing temperatures, improving experimental efficiency. Equipped with a touchscreen interface, programmable methods and data storage capabilities, it enables easy operation and reproducible results. The system supports multiple formats and offers advanced features such as auto restart, USB data handling and wireless connectivity for streamlined laboratory workflows.
Key Features
96-well block supporting multiple tube and plate formats
Wide temperature range from 0 to 105°C for flexible applications
Gradient function from 30°C to 105°C for optimization studies
High ramp rate up to 6°C/s for fast cycling
Touchscreen interface for intuitive operation
Programmable methods with large storage capacity
Accurate temperature control with high uniformity and precision
Adjustable heated lid temperature for condensation prevention
USB and Wi-Fi connectivity for data transfer and control
Auto restart function after power interruption
Graphical interface for easy program navigation
Compact design suitable for laboratory integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Equipment Type | PCR Thermal Cycler |
| Model | GPTC96 |
| Capacity | 96 × 0.2 ml |
| Formats | 0.2 ml tubes, strips, 96-well plates |
| Reaction Volume | 5 – 100 µl |
| Temperature Range | 0 – 105°C |
| Ramp Rate | 6°C/s |
| Temperature Uniformity | ≤ ±0.2°C |
| Temperature Accuracy | ≤ ±0.1°C |
| Display Resolution | 0.1°C |
| Gradient Range | 30 – 105°C |
| Gradient Type | Normal / Linear |
| Gradient Spread | 0.1 – 42°C |
| Heated Lid Temperature | 30 – 115°C |
| Programs | Up to 2,000,000 (USB) |
| Steps per Program | 30 |
| Max Cycles | 200 (up to 1,000,000 nested) |
| Time Range | 1 – 600 s |
| Temperature Increment | 0.1 – 10°C |
| Data Output | CSV export |
| Display | Touchscreen |
| Connectivity | USB, Wi-Fi |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power | 600 W |
| Dimensions | 520 × 400 × 390 mm |
| Weight | Approx. 13 kg |
| Application | DNA/RNA amplification |
| Usage | Molecular workflows, genetic analysis |
