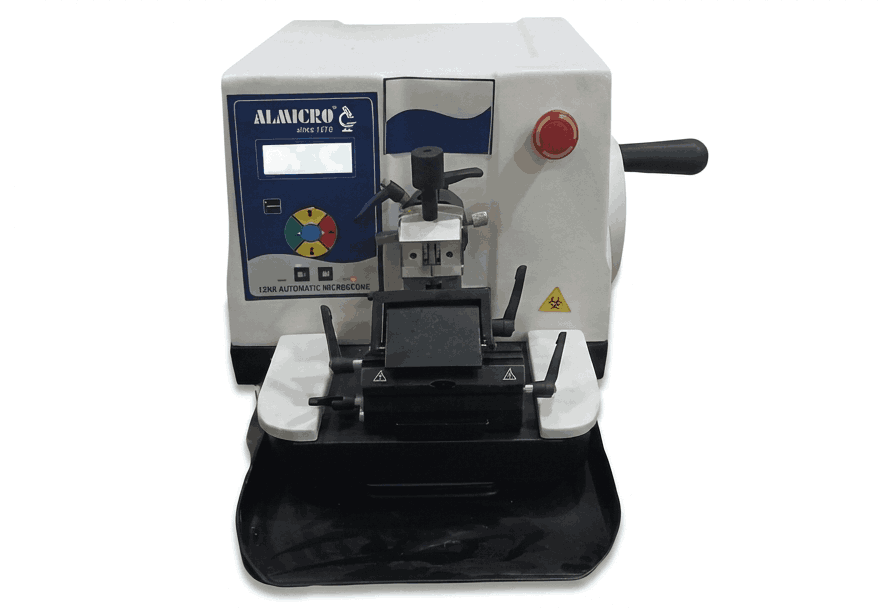

Fully Automatic Microtome ARM – 400

Fully Automatic Microtome ARM-400 is a high-end precision sectioning instrument designed for advanced histology and pathology laboratories. It features a stepper motor-driven feed system for highly accurate and repeatable sectioning. The microtome offers multiple automated sectioning modes, adjustable speed control, and advanced specimen protection mechanisms such as retraction during return stroke. Built with cross-roller bearing guidance, it ensures vibration-free operation and superior stability. The system is equipped with ergonomic controls, safety features, and a complete set of accessories, making it ideal for high-throughput clinical and research applications.

Key Features

Fully automatic rotary microtome for high precision sectioning
Stepper motor driven feed for accurate and repeatable results
Section thickness range 0.5 to 100 microns
Trimming thickness range 5 to 500 microns
Specimen retraction up to 40 microns to prevent damage
Cross roller bearing system for vibration-free movement
Motorized sectioning speed adjustable up to 420 mm/s
Dynamic speed control during operation
Multiple sectioning modes including single, multi-cut, continuous and rocking
Footswitch control for hands-free operation
Smooth handwheel for manual override operation
Compatible with high-profile and low-profile blade holders
Anti-static waste tray for clean operation
Advanced safety with overload protection and locking system
Differentiator vs ARM-300: Fully automated operation with multiple cutting modes and higher precision control
Best for: histopathology labs, diagnostic labs, research institutes and medical colleges

Technical Specifications

Standard Accessories

High-profile blades (200 nos.)
Low-profile blades (50 nos.)
Cleaning brush and sectioning brushes
Tissue flotation bath with digital display
Slide warmer
Laboratory work bench with granite top and storage cabinet
Ergonomic laboratory chair

Certifications

CE Certified
USFDA Approved
ISO 13485 Certified
ISO 9001 Certified
