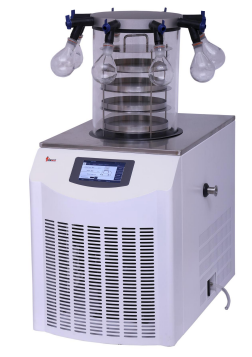

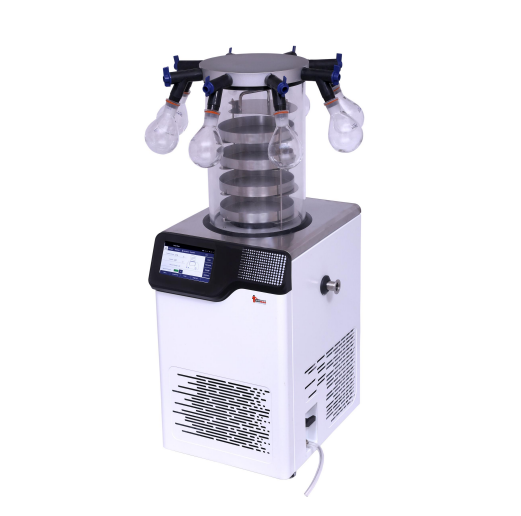

Floor Freeze Dryer – LMFD460C / LMFD660C / LMFD1060C / LMFD1260C / LMFD480C / LMFD680C (-60°C / -80°C | 4–12 kg/24h Ice Capacity | 7" Touch Screen)

Floor Freeze Dryer – LMFD460C / LMFD660C / LMFD1060C / LMFD1260C / LMFD480C / LMFD680C (-60°C / -80°C | 4–12 kg/24h Ice Capacity | 7" Touch Screen)

Rs. 470,000.00
Rs. 470,000.00
Sale Sold out
Shipping calculated at checkout.
Model Number

Low stock: 10 left

LMFD460C, LMFD660C, LMFD1060C and LMFD1260C are floor freeze dryers with a -60°C condenser temperature, while LMFD480C and LMFD680C provide a -80°C condenser temperature. The systems are designed for freeze drying applications requiring controlled condenser temperature, vacuum and sample conditions.

The series provides ice condenser capacities from 4 kg/24h to 12 kg/24h and freeze drying areas from 0.12 m² to 0.283 m² depending on the model. All models use a 7-inch touch screen display with vacuum control and curve functions, together with heating-coil defrosting.

The units feature power-off auto-recovery, alarm and prompt functions, high-precision vacuum measurement and vacuum and temperature correction for long-term operating accuracy. Pre-freezing shelves are available for LMFD460C and LMFD480C.

A DSVP55 double-stage oil-lubricated rotary vane vacuum pump is specified as the standard vacuum pump and should be ordered separately.

Key Features

-60°C condenser temperature models

-80°C condenser temperature models

4–12 kg/24h ice condenser capacity

0.12–0.283 m² freeze drying area

7-inch touch screen display

Vacuum control function

Vacuum curve function

Heating-coil defrosting

Power-off auto-recovery

Condenser and sample temperature display

Vacuum and temperature correction

High-precision vacuum gauge

Alarm and prompt functions

Manifold configuration

Pre-freezing shelves available for LMFD460C and LMFD480C

Wheels with locking mechanism

Technical Specifications

LMFD460C / LMFD660C / LMFD1060C / LMFD1260C – -60°C Series

Parameter LMFD460C LMFD660C LMFD1060C LMFD1260C
Ice Condenser Capacity 4 kg/24h 6 kg/24h 10 kg/24h 12 kg/24h
Freeze Drying Area 0.12 m² 0.2 m² 0.283 m² 0.283 m²
Tray Size 200 mm × 4 240 mm × 4 300 mm × 4 300 mm × 4
Condenser Temperature -60°C -60°C -60°C -60°C
Refrigeration System Single Cascade Single Cascade Single Cascade Single Cascade
Freeze Dryer Configuration Manifold Manifold Manifold Manifold
Vacuum Pressure <5 Pa <5 Pa <5 Pa <5 Pa
Tray Spacing 70 mm 70 mm 70 mm 70 mm
Vacuum Control Function Available Function Available Function Available Function Available
Curve Function Available Available Available Available
Ambient Temperature 15°C to 25°C 15°C to 25°C 15°C to 25°C 15°C to 25°C
Relative Humidity ≤70% ≤70% ≤70% ≤70%
Defrost Heating Coil Heating Coil Heating Coil Heating Coil
Vacuum Pump Type Double Stage Oil-Lubricated Rotary Vane Vacuum Pump Double Stage Oil-Lubricated Rotary Vane Vacuum Pump Double Stage Oil-Lubricated Rotary Vane Vacuum Pump Double Stage Oil-Lubricated Rotary Vane Vacuum Pump
Vacuum Pump DSVP55, ordered separately DSVP55, ordered separately DSVP55, ordered separately DSVP55, ordered separately
Vacuum Pump Rotary Speed 1400 RPM 1400 RPM 1400 RPM 1400 RPM
Vacuum Pump Oil Capacity 0.8 L 0.8 L 0.8 L 0.8 L
Vacuum Pump Noise Level 55 dB 55 dB 55 dB 55 dB
Vacuum Pump Weight 25 kg 25 kg 25 kg 25 kg
Power Supply 220–240 V / 50 Hz 220–240 V / 50 Hz 220–240 V / 50 Hz 220–240 V / 50 Hz
Power 950 W 1200 W 1300 W 1500 W
Instrument Dimension (without chamber) 500 × 430 × 690 mm 820 × 570 × 710 mm 820 × 570 × 710 mm 820 × 570 × 710 mm
Main Instrument Dimension 820 × 570 × 1110 mm 820 × 570 × 1130 mm 820 × 570 × 1130 mm 820 × 570 × 1100 mm
Accessories Box Dimension 730 × 580 × 660 mm 730 × 580 × 660 mm 730 × 580 × 660 mm 730 × 580 × 660 mm
Vacuum Pump Dimension 785 × 410 × 550 mm 785 × 410 × 550 mm 785 × 410 × 550 mm 785 × 410 × 550 mm
Total Gross Weight (3 Boxes) 123 kg 154 kg 165 kg 185 kg

LMFD480C / LMFD680C – -80°C Series

Parameter LMFD480C LMFD680C
Ice Condenser Capacity 4 kg/24h 6 kg/24h
Freeze Drying Area 0.12 m² 0.18 m²
Tray Size 200 mm × 4 240 mm × 4
Condenser Temperature -80°C -80°C
Refrigeration System Dual Cascade Dual Cascade
Freeze Dryer Configuration Manifold Manifold
Vacuum Pressure <5 Pa <5 Pa
Tray Spacing 70 mm 70 mm
Vacuum Control Function Available Function Available
Curve Function Available Available
Ambient Temperature 15°C to 25°C 15°C to 25°C
Relative Humidity ≤70% ≤70%
Defrost Heating Coil Heating Coil
Vacuum Pump Type Double Stage Oil-Lubricated Rotary Vane Vacuum Pump Double Stage Oil-Lubricated Rotary Vane Vacuum Pump
Vacuum Pump DSVP55, ordered separately DSVP55, ordered separately
Vacuum Pump Rotary Speed 1400 RPM 1400 RPM
Vacuum Pump Oil Capacity 0.8 L 0.8 L
Vacuum Pump Noise Level 55 dB 55 dB
Vacuum Pump Weight 25 kg 25 kg
Power Supply 220–240 V / 50 Hz 220–240 V / 50 Hz
Power 1000 W 1550 W
Instrument Dimension (without chamber) 500 × 430 × 690 mm 820 × 570 × 710 mm
Main Instrument Dimension 820 × 570 × 1100 mm 820 × 570 × 1130 mm
Accessories Box Dimension 730 × 580 × 660 mm 730 × 580 × 660 mm
Vacuum Pump Dimension 785 × 410 × 550 mm 785 × 410 × 550 mm
Total Gross Weight (3 Boxes) 132 kg 163 kg

Applications

Laboratory lyophilization

Pilot-scale freeze drying

Pharmaceutical research

Biotechnology research

Biological sample preservation

Chemical laboratory applications

Research and development

Manifold freeze drying

Vial freeze drying

Ampoule freeze drying

Food research

Temperature-sensitive sample processing

Standard Accessories

Main Instrument

Pre-freezing Shelves for LMFD460C and LMFD480C

Manifold Assembly

Vacuum Pump Connection Components

Vacuum Oil

Oil Mist Filter

SS Tube

Vacuum Pump Cable

Power Cable

Instruction Manual

Test Certificate
