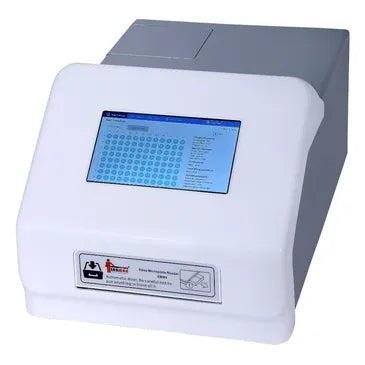

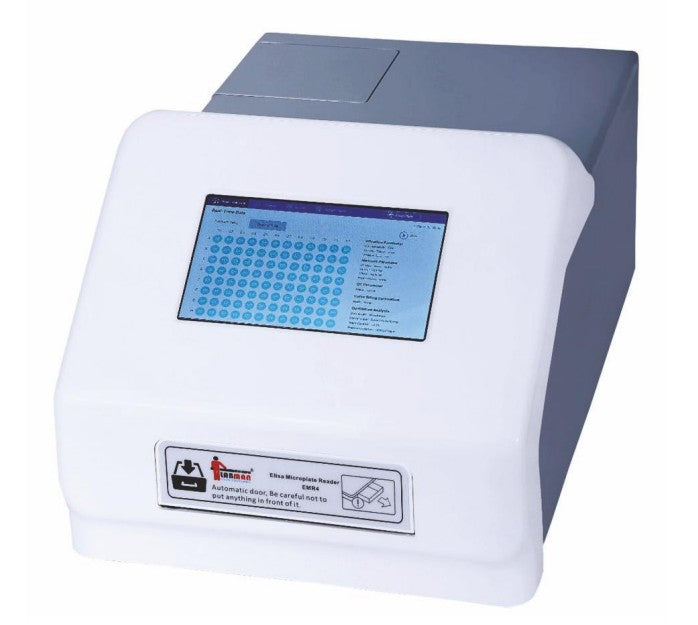

ELISA Microplate Reader EMR4 (340–750 nm, 0–4.000 Abs, 96-Well)
ELISA Microplate Reader EMR4 (340–750 nm, 0–4.000 Abs, 96-Well)
Low stock: 10 left
Couldn't load pickup availability
ELISA Microplate Reader EMR4 is designed for quantitative absorbance measurement in microplate-based assays. It utilizes a filter-based optical system with a halogen light source to deliver stable and accurate readings across multiple wavelengths. The system supports rapid detection of 96-well plates with high precision and repeatability. Equipped with a touchscreen interface and built-in software, it enables easy operation, data analysis and result storage. The instrument offers automatic calibration, diagnostic functions and flexible filter configurations, making it suitable for routine and advanced analytical workflows.
Key Features
Wide wavelength range from 340 to 750 nm
Absorbance range from 0 to 4.000 Abs
Fast measurement of 96-well plates in under 6 seconds
8-position filter wheel with expandable filter options
Touchscreen interface with Android-based system
High accuracy and repeatability across measurement range
Automatic calibration and positioning system
Built-in software for data analysis and result management
Halogen lamp light source for stable optical performance
Dual USB interface for connectivity and data transfer
Supports standard and fast measurement modes
Technical Specifications
| Parameter | Specification |
|---|---|
| Equipment Type | ELISA Microplate Reader |
| Model | EMR4 |
| Wavelength Range | 340 – 750 nm |
| Filter System | 8 position filter wheel |
| Standard Filters | 405 nm, 450 nm, 492 nm, 630 nm |
| Filter Bandwidth | 8 – 10 nm |
| Reading Range | 0.000 – 4.000 Abs |
| Linear Range (405 nm) | 0 – 3.0 Abs ±1%, 3 – 4.0 Abs ±2% |
| Accuracy | ±1% (0–3 Abs), ±2% (3–4 Abs) |
| CV (405 nm) | ≤0.2% (0–3 Abs), ≤1.0% (3–4 Abs) |
| Resolution | 0.001 Abs |
| Measurement Speed | <6 sec (96-well plate) |
| Measurement Mode | Standard / Fast |
| Light Source | Halogen lamp |
| Display | 7 inch Touchscreen |
| Operating System | Android |
| Interface | USB |
| Memory | 200 programs, 100,000 results |
| Calibration | Automatic |
| Power | 60 W |
| Power Supply | AC 220V / 50Hz |
| Dimensions | 560 × 400 × 325 mm |
| Weight | Approx. 11 kg |
| Application | Absorbance measurement, microplate analysis |
| Usage | Immunoassay workflows, laboratory testing |
