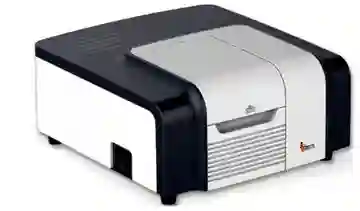

Double Beam UV-Vis Spectrophotometer with Mercury Lamp LUV6HG (190–900 nm, PMT Detector)
Double Beam UV-Vis Spectrophotometer with Mercury Lamp LUV6HG (190–900 nm, PMT Detector)
Low stock: 10 left
Couldn't load pickup availability
The Double Beam UV-Vis Spectrophotometer LUV6HG is designed for high-precision optical analysis across a wide wavelength range of 190 to 900 nm. Equipped with a double beam optical system and a highly sensitive photomultiplier tube detector, it delivers excellent signal stability and accuracy, even at low light levels.
The system integrates three built-in light sources including deuterium, tungsten, and mercury lamps. The mercury lamp enables real-time wavelength calibration, significantly improving measurement reliability and long-term accuracy. The Czerny-Turner optical system ensures high resolution and minimal stray light, making it suitable for demanding analytical applications.

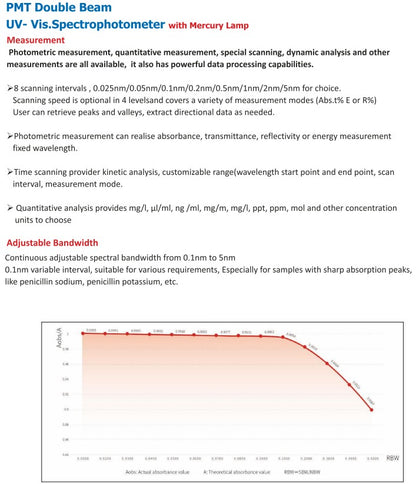

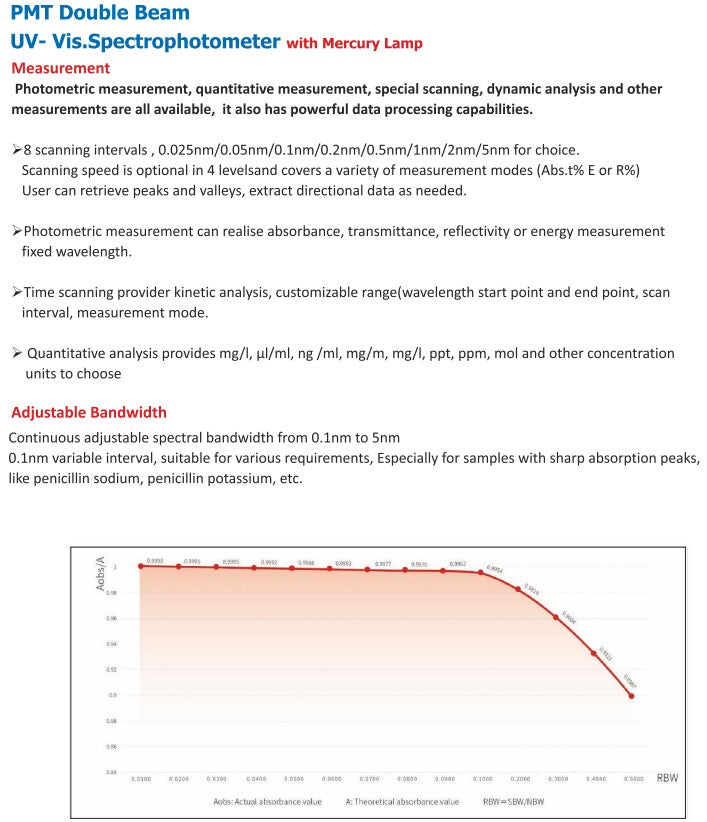

The instrument supports continuously adjustable spectral bandwidth from 0.1 nm to 5 nm, allowing flexibility for different analytical requirements, especially for samples with sharp absorption peaks. A large sample chamber accommodates standard 10 mm cells for both sample and reference measurements.

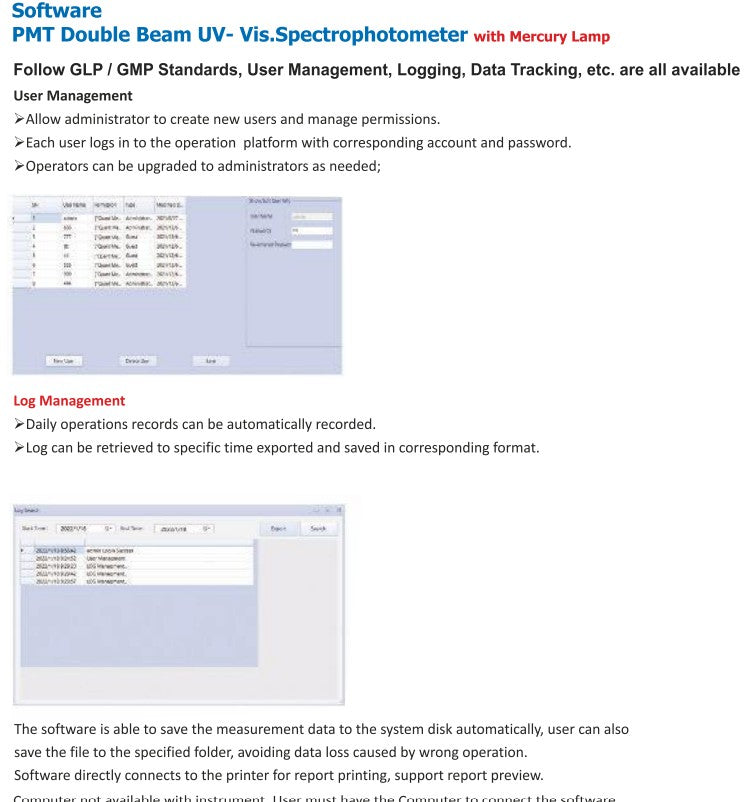

The system is controlled via PC software and supports advanced analytical functions such as photometric analysis, wavelength scanning, kinetic studies, and quantitative analysis. It complies with GLP/GMP requirements and includes features such as user management, audit trails, and data logging for regulated environments.
Key Features
Double beam optical system for enhanced stability
PMT detector for high sensitivity and low light detection
Deuterium, tungsten, and mercury lamps for accurate measurement
Real-time wavelength calibration using mercury lamp
Czerny-Turner monochromator for high resolution
Adjustable spectral bandwidth from 0.1 to 5 nm
Large sample chamber for easy handling
Advanced PC-based analysis software
GLP/GMP compliant with user management and data tracking
Low stray light and high baseline stability
Technical Specifications
| Parameter | LUV6HG |
|---|---|
| Make | LABMAN |
| Optical System | Double Beam |
| Detector | PMT (Photomultiplier Tube) |
| Light Sources | Deuterium, Tungsten, Mercury |
| Wavelength Range | 190 – 900 nm |
| Spectral Bandwidth | 0.1 – 5 nm (continuous) |
| Resolution | 0.1 nm |
| Wavelength Accuracy | ±0.3 nm |
| Photometric Range | 0 – 10,000,000%T, -4A to 6A |
| Photometric Accuracy | ±0.3% |
| Stray Light | ≤0.005% (at 220 nm & 360 nm) |
| Baseline Flatness | ±0.0005 Abs |
| Stability | ≤0.0001 Abs/h |
| Cell Holder | 10 mm (Sample & Reference) |
| Sample Chamber | Large |
| Interface | USB, RS232, Ethernet |
| Compliance | GLP / GMP |
| Password Protection | Yes |
| Scanning Intervals | 0.025 to 5 nm (multiple steps) |
| Power Supply | AC 220V / 50-60Hz |
| Dimensions (L×W×H) | 710 × 690 × 540 mm |
| Weight | 49 kg |
Applications
Pharmaceutical analysis and quality control
Chemical and environmental analysis
Biotechnology and life sciences research
Food and beverage testing
Academic and research laboratories
