Labman

Double Beam UV-Vis Spectrophotometer LUV2000T / 2008T / 2100T / 2108T (190–1100 nm, Touchscreen)

Rs. 300,000.00

Sale Sold out

Shipping calculated at checkout.

Model LUV2000T LUV2008T LUV2100T LUV2108T

Low stock: 10 left

Quantity

The Double Beam UV-Vis Spectrophotometer LUV Series is designed for high-accuracy spectroscopic analysis across the UV, visible, and near-infrared regions from 190 to 1100 nm. It features a double beam optical system with dual detectors to ensure excellent stability, reduced noise, and high measurement reliability.

The system uses a precision grating monochromator combined with a sealed optical structure and SiO₂-coated mirrors to minimize stray light and environmental interference. This enhances long-term stability and ensures consistent analytical performance even in demanding laboratory conditions.

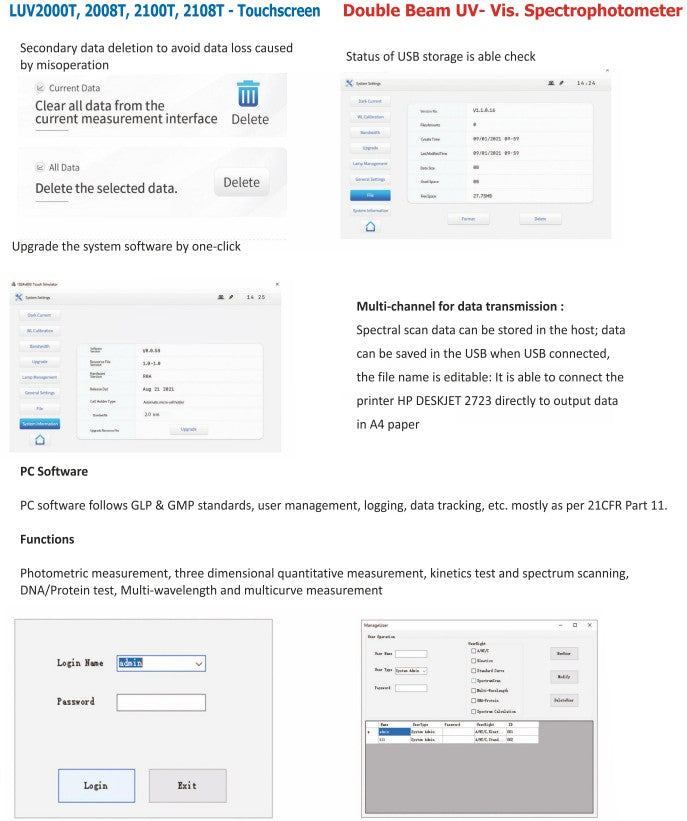

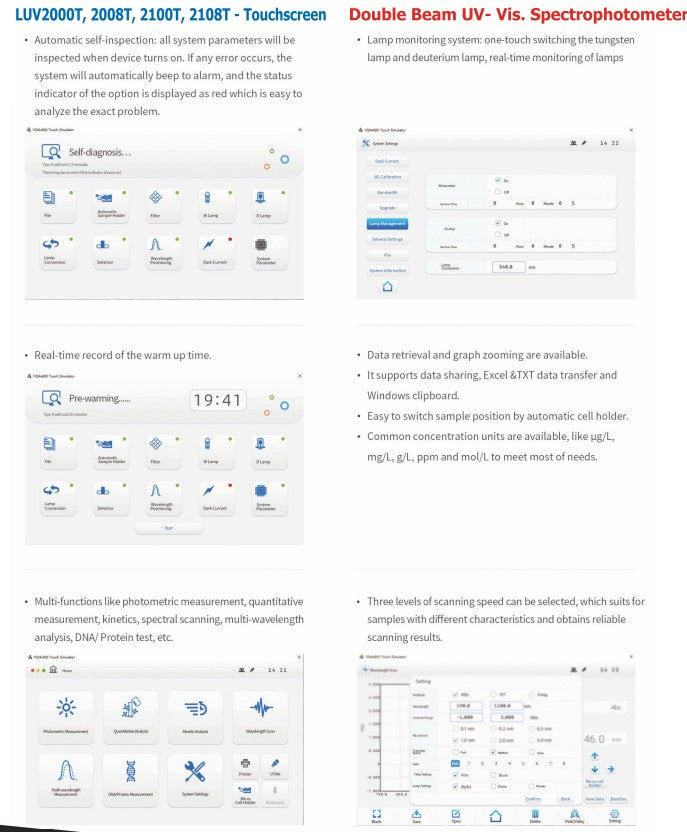

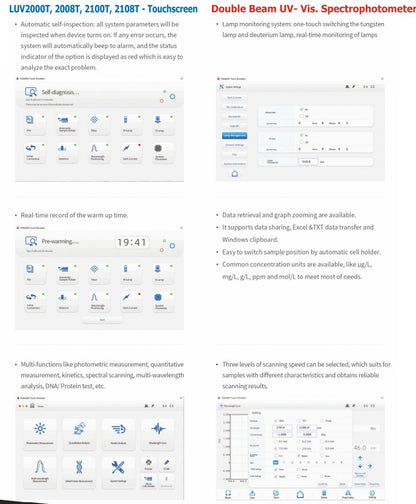

Equipped with a 10-inch touchscreen interface and built-in computing system, the instrument operates independently without requiring an external PC. It supports a wide range of analytical functions including photometric measurement, quantitative analysis, spectral scanning, kinetics, and DNA/protein analysis.

The system includes tungsten and deuterium lamps with automatic switching and lamp life monitoring. Data can be stored internally and exported via USB, with direct printing support. Compliance with GLP/GMP standards ensures suitability for regulated laboratories with features such as user management, audit trails, and data tracking.

Key Features

Double beam optical system with dual detectors
Wide wavelength range from 190 to 1100 nm
10-inch touchscreen with standalone operation
Built-in 32GB storage for data management
SiO₂ coated optics to reduce stray light
Automatic lamp switching and life monitoring
Advanced analysis including kinetics and DNA/protein
USB data export and direct printing capability
GLP/GMP compliant software with audit trail
High stability and low baseline drift

Technical Specifications

Parameter	LUV2000T	LUV2008T	LUV2100T	LUV2108T
Make	LABMAN	LABMAN	LABMAN	LABMAN
Optical System	Double Beam	Double Beam	Double Beam	Double Beam
Detector	Silicon Photodiode	Silicon Photodiode	Silicon Photodiode	Silicon Photodiode
Wavelength Range	190–1100 nm	190–1100 nm	190–1100 nm	190–1100 nm
Bandwidth	1.0 nm	1.0 nm	Variable (1, 2, 4, 5 nm)	Variable (1, 2, 4, 5 nm)
Wavelength Accuracy	±0.1 nm (656.1 nm), ±0.3 nm full range
Wavelength Repeatability	±0.1 nm
Photometric Range	0–200%T, -0.3 to 3A, 0–9999C
Photometric Accuracy	±0.2%T, ±0.002 Abs
Photometric Repeatability	≤0.05%T
Stability	±0.0004 Abs/h @ 500 nm
Stray Light	≤0.03%T (220 nm, 360 nm)
Light Source	Tungsten & Deuterium Lamp
Resolution	0.1 nm
Display	10-inch Touchscreen (800×480)
Memory	32 GB
Control Mode	Standalone / PC Software
Data Output	USB
Baseline Flatness	±0.0008 Abs
Power Supply	AC 220V / 50-60Hz
Dimensions (L×W×H)	785×585×400 mm	785×585×400 mm	790×600×400 mm	790×600×400 mm
Weight	35 kg	35 kg	36 kg	36 kg

Applications

Pharmaceutical and QC laboratories
Chemical and environmental testing
Biotechnology and life sciences
Food and beverage analysis
Academic and research institutions
