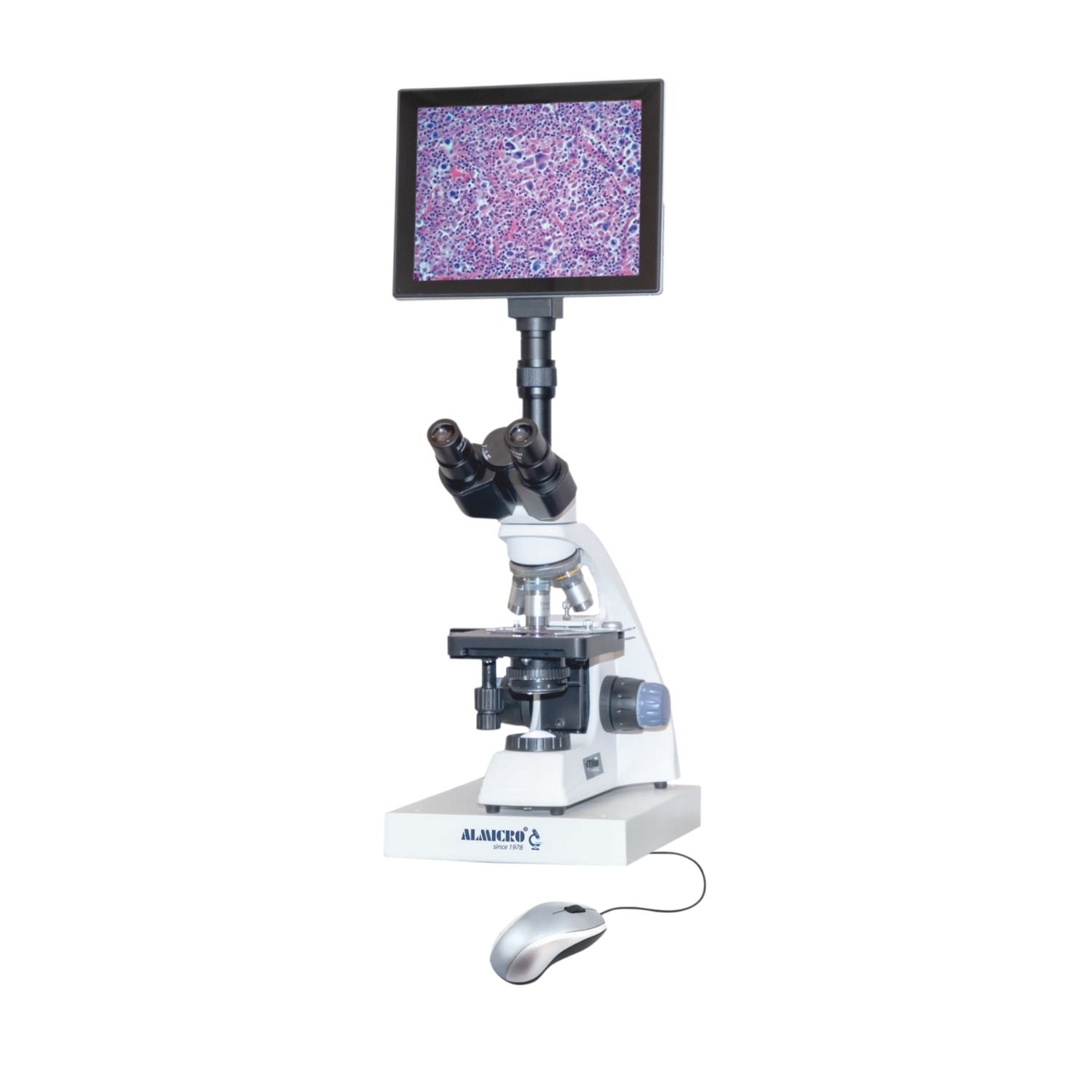

Digital Video Microscope (with Tablet ) (DVM – 03 Plus)
Digital Video Microscope (with Tablet ) (DVM – 03 Plus)
Low stock: 10 left
Couldn't load pickup availability
Digital Video Microscope DVM-03 Plus is an advanced integrated system designed for real-time observation, measurement, and digital analysis in laboratories, research, and industrial inspection. It combines a trinocular optical microscope with a 5MP CMOS camera and a tablet display, enabling seamless viewing, image capture, and analysis. The system features plan achromatic optics for improved image clarity, a precision mechanical stage, and stable LED illumination. Built-in software supports measurement and particle analysis, while USB connectivity allows easy data transfer, making it suitable for education, QA/QC, and research applications.
Key Features
Trinocular head, 30° inclined, 360° rotatable for versatile viewing
Wide-field eyepiece WF10X/18mm for comfortable observation
Plan achromatic objectives 4X, 10X, 40Xs, 100Xs oil
Quadruple nosepiece for quick objective changes
Coaxial coarse and fine focusing with 0.002 mm precision
Adjustable rack stop and friction control for specimen protection
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Double-layer mechanical stage 110×125 mm with 30×75 mm travel
3W LED illumination with adjustable brightness
Eyepiece tube adapter with inbuilt battery backup
5 MP CMOS camera with 2592 × 1944 resolution
9-inch tablet with IPS display and built-in measurement software
USB output to PC with mouse support for easy operation
Differentiator vs DVM-03: Trinocular optical system with plan optics and mechanical stage
Best for: research labs, QA/QC, education and industrial inspection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DVM-03 Plus |
| Viewing Head | Trinocular, 30° inclined, 360° rotatable |
| Interpupillary Distance | 54 – 75 mm |
| Diopter Adjustment | ±5 |
| Eyepiece | WF10X / 18 mm |
| Objectives | Plan Achromatic 4X, 10X, 40Xs, 100Xs (oil) |
| Nosepiece | Quadruple |
| Focusing System | Coaxial coarse & fine |
| Fine Focus Precision | 0.002 mm |
| Coarse Stroke | 36 mm |
| Condenser | Abbe N.A. 1.25 with iris diaphragm & filter holder |
| Stage | Double-layer mechanical |
| Stage Size | 110 × 125 mm |
| Stage Travel | 30 × 75 mm |
| Illumination | 3W LED, adjustable |
| Power Supply | 110 – 240V |
| Adapter | Eyepiece tube adapter with battery backup |
| Packaging | Thermocol inner, outer cardboard box |
Camera Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/2.5" 5 MP CMOS |
| Resolution | 2592 × 1944 pixels |
| Dynamic Range | 66.5 dB |
| Frame Rate | 1024 × 600 @ 30 fps |
Tablet Specifications
| Parameter | Specification |
|---|---|
| Display | 9-inch IPS LCD (1024 × 768) |
| RAM | 1 GB |
| Power | DC 5V |
| Software | Built-in measurement & analysis |
| Connectivity | USB output to PC, mouse support |
Working Principle
Light from the LED source passes through the specimen placed on the mechanical stage. The objectives magnify the image, which is captured by the 5 MP camera and displayed on the tablet in real time. The user adjusts focus, stage position, and illumination for clarity. The integrated software enables measurement, analysis, and image capture, while USB connectivity allows data transfer to a PC.
Applications
Educational laboratories for demonstrations and training
Research laboratories for biological and material analysis
Industrial inspection for particle and surface evaluation
Quality control and documentation in laboratories
Student training for digital microscopy applications
Fieldwork requiring portable microscopy systems
