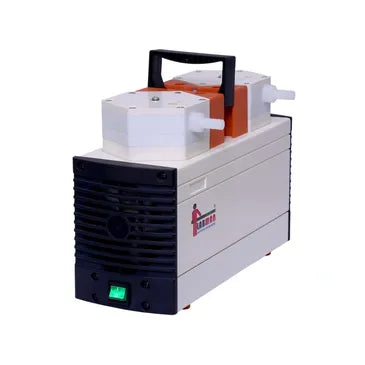

Diaphragm Vacuum Pump LMVP20 (PTFE Coated, Two-Stage Chemical Resistant)
Diaphragm Vacuum Pump LMVP20 (PTFE Coated, Two-Stage Chemical Resistant)
Low stock: 10 left
Couldn't load pickup availability
Diaphragm Vacuum Pump LMVP20 is a chemical-resistant oil-free vacuum pump designed for laboratory applications involving corrosive gases, solvent vapors, and chemical processing environments. The pump features a two-stage diaphragm system with PTFE-coated wetted components for enhanced chemical resistance and long-term durability.
The oil-free operating mechanism eliminates contamination risks and reduces maintenance requirements, making the pump suitable for sensitive analytical and chemical workflows. Its two-stage pump design provides stable vacuum generation with improved operational efficiency for demanding laboratory applications.
LMVP20 delivers a flow rate of 20 L/min with an ultimate vacuum of 20 mbar, supporting applications such as vacuum filtration, rotary evaporation, vacuum distillation, centrifugal concentration, and solid phase extraction.
The PTFE-coated diaphragm and corrosion-resistant construction enable reliable handling of aggressive chemical vapors and corrosive gases commonly encountered in chemical, pharmaceutical, and petrochemical laboratories.
Designed with low vibration and direct motor power transmission, the pump maintains stable operation with low noise levels below 70 dB. An integrated overheat protection mechanism and automatic temperature stabilization system further improve operational safety and reliability during continuous use.
Key Features
Chemical-resistant diaphragm vacuum pump
Two-stage oil-free vacuum system
PTFE-coated diaphragm and pump head
20 L/min vacuum flow rate
Ultimate vacuum up to 20 mbar
Corrosion-resistant construction
Low vibration and low-noise operation
Suitable for corrosive gas handling
Overheat protection mechanism
Pollution-free vacuum generation
Stable vacuum performance for laboratory applications
Compact and durable laboratory design
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 120 W |
| Pump Head Type | Two-stage |
| Ultimate Vacuum | 20 mbar |
| Operation Pressure | 1 bar (Max) |
| Flow Rate at Atmospheric Pressure | 20 L/min |
| Connector Size | 10 mm |
| Ambient Temperature | +5°C to +40°C |
| Pump Head Material & Diaphragm | PTFE Coated |
| Valves | FFPM |
| Noise Level | <70 dB |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L×W×H) | 465 × 325 × 270 mm |
| Weight | 11 kg |
Applications
Chemical laboratory filtration
Rotary evaporation systems
Vacuum distillation applications
Solid phase extraction systems
Centrifugal concentration workflows
Pharmaceutical laboratories
Petrochemical laboratories
Corrosive gas and solvent handling applications
