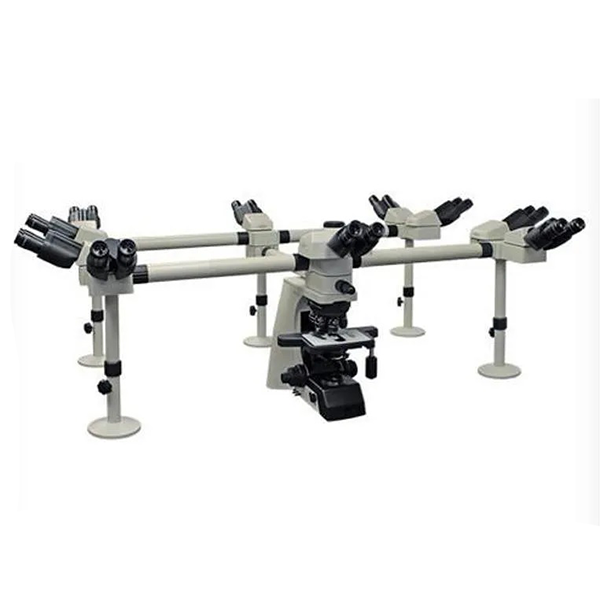

Deca Head Microscope (X-10)
Deca Head Microscope (X-10)
Low stock: 10 left
Couldn't load pickup availability
Deca Head Microscope X-10 is designed for collaborative teaching, demonstration, and advanced laboratory observation where multiple users can observe the same specimen simultaneously. The system supports up to 10 observers through a multi-head viewing arrangement, making it ideal for universities, medical colleges, and training centers. It features infinity plan achromatic objectives for high-resolution imaging, a precision coaxial focusing system for accurate control, and Kohler illumination for uniform light distribution. The large mechanical stage and ergonomic viewing heads ensure stable specimen handling and comfortable long-duration observation.
Key Features
Multi-viewing system supporting simultaneous observation by up to 10 users
Trinocular main head inclined at 30° and rotatable 360°
Includes 1 dual head and 8 binocular heads for group observation
Wide-field WF10X eyepieces for clear and high-contrast imaging
Infinity plan achromatic objectives for sharp and color-corrected images
Coaxial coarse and fine focusing with 0.002 µm graduation and safety stop
Kohler illumination with 12V 100W halogen lamp and LED cursor
Large double-layer mechanical stage with double slide holder
Swing-out condenser with centering system for optimal illumination
Ergonomic design with diopter adjustment and interpupillary adjustment
Robust construction for continuous teaching and laboratory use
Differentiator vs standard microscopes: Multi-head system for group teaching and demonstrations
Best for: medical colleges, universities, training labs and group learning
Technical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Multi-Head Teaching Microscope |
| Viewing System | Trinocular main head + 1 dual head + 8 binocular heads |
| Viewing Angle | 30° inclined, 360° rotatable |
| Interpupillary Distance | 55 – 75 mm |
| Eyepieces | WF 10X (FN 22 main, FN 20 discussion) |
| Objectives | Infinity Plan 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil |
| Focusing System | Coaxial coarse & fine |
| Fine Focus Precision | 0.002 µm |
| Focus Range | With upper stop and tension adjustment |
| Stage | Double-layer mechanical stage |
| Stage Size | 180 × 160 mm |
| Stage Travel | 80 × 50 mm |
| Slide Holder | Double slide holder |
| Condenser | Swing-out type N.A. 0.9 / 1.2 with centering |
| Illumination | Kohler illumination, 12V 100W halogen with LED cursor |
| Application | Teaching labs, research labs, clinical labs, training centers |
| Country of Origin | India |
Working Principle
The microscope uses Kohler illumination to provide uniform light through the specimen. Light passes through the condenser and objective lenses to form a magnified image. The image is distributed through the multi-head optical system, allowing multiple users to observe simultaneously. Coaxial focusing enables precise adjustment, ensuring sharp and consistent viewing for all observers.
Applications
University and school biology laboratories for teaching and demonstrations
Research laboratories for detailed biological studies
Clinical and diagnostic labs for sample observation
Industrial labs for material analysis and quality control
Training centers for group learning and collaborative microscopy
