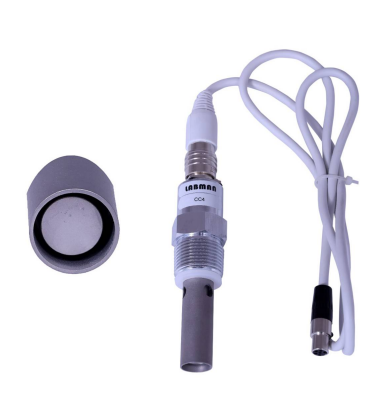

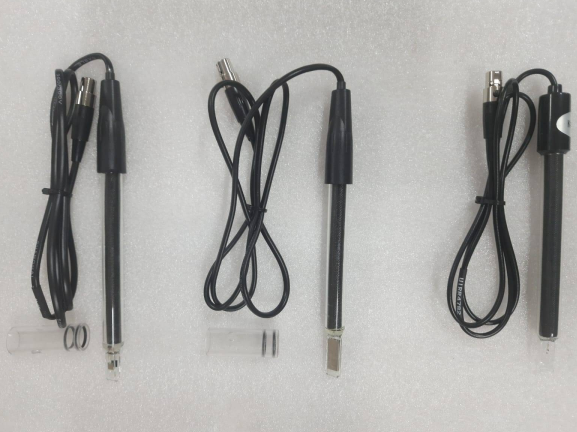

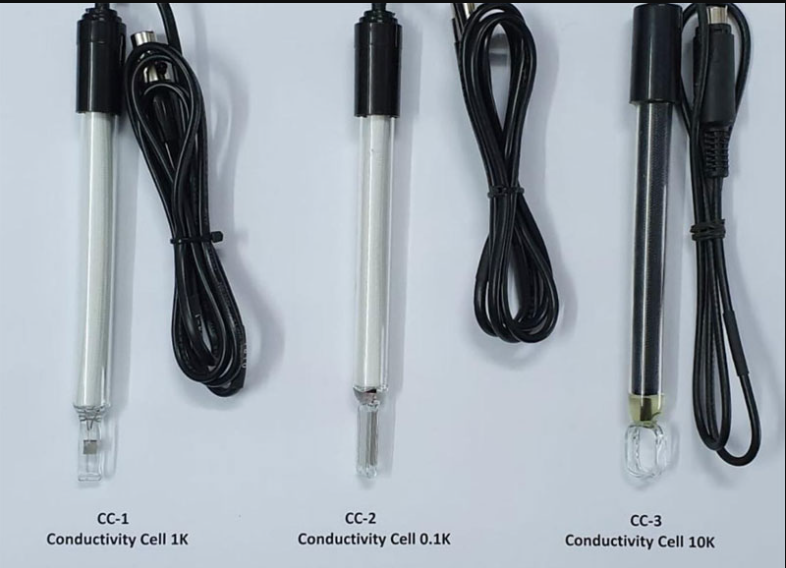

Conductivity Cell – CC1, CC2, CC3, CC4 (Multiple Cell Constants, 0–60°C)
Conductivity Cell – CC1, CC2, CC3, CC4 (Multiple Cell Constants, 0–60°C)
Low stock: 10 left
Couldn't load pickup availability
The CC1, CC2, CC3, and CC4 Conductivity Cells are designed for measuring the ability of a solution to conduct electrical current. The conductivity measurement depends on the presence and concentration of ions in the solution.
The same electrode can also be used for measuring resistivity and TDS/salinity of aqueous solutions when the compatible meter provides these measurement functions. Different cell constants and measuring ranges are available according to the conductivity level of the solution.
Key Features
Multiple cell constant options: 1K, 0.1K, 10K, and 0.01K.
Platinum foil electrode material.
Glass body material.
Temperature range from 0 to 60°C.
Pressure capability up to 2 Bar.
6-pin mini plug connector.
12mm electrode diameter.
160mm electrode length.
Suitable for laboratory use.
Compatible with LABMAN meters.
Suitable for conductivity measurement.
Can also be used for resistivity and TDS/salinity measurement when supported by the meter.
Product Specification Table
| Specification Detail | CC1 | CC2 | CC3 | CC4 |
|---|---|---|---|---|
| Cell Constant | 1K | 0.1K | 10K | 0.01K |
| Measuring Range | 0.01~10ms/cm | 0.1~100µs/cm | 0.1~200ms/cm | 0.05 to 2µs/cm |
| Material | Platinum Foils | Platinum Foils | Platinum Foils | Platinum Foils |
| Body Material | Glass | Glass | Glass | Glass |
| Temperature Range | 0–60°C | 0–60°C | 0–60°C | 0–60°C |
| Pressure | Up to 2 Bar | Up to 2 Bar | Up to 2 Bar | Up to 2 Bar |
| Connector | 6 pin mini plug | 6 pin mini plug | 6 pin mini plug | 6 pin mini plug |
| Electrode Dia | 12mm | 12mm | 12mm | 12mm |
| Electrode Length | 160mm | 160mm | 160mm | 160mm |
| Suitability | For Lab Use | For Lab Use | For Lab Use | For Lab Use |
| Compatibility | With LABMAN Meters | With LABMAN Meters | With LABMAN Meters | With LABMAN Meters |
| Dimension (L x W x H) | 185 x 64 x 50mm | 185 x 64 x 50mm | 185 x 64 x 50mm | 185 x 64 x 50mm |
| Weight | 130g | 130g | 130g | 130g |
Applications
Conductivity measurement of aqueous solutions.
Resistivity measurement when supported by the meter.
TDS measurement when supported by the meter.
Salinity measurement when supported by the meter.
Pharmaceutical applications.
Food and beverage testing.
Quality control.
Environmental studies.
Academic and research applications.
