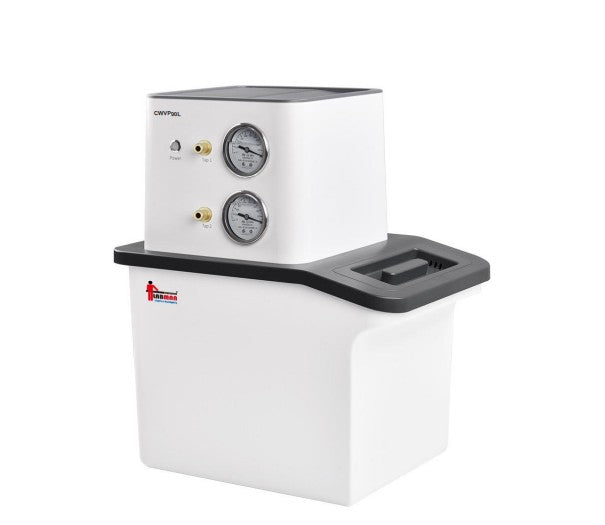

Circulating Water Vacuum Pump – CWVP60L / CWVP90L (60–90 L/min Flow Rate | Water Circulating Vacuum | Dual Pressure Gauges)
Circulating Water Vacuum Pump – CWVP60L / CWVP90L (60–90 L/min Flow Rate | Water Circulating Vacuum | Dual Pressure Gauges)
Low stock: 10 left
Couldn't load pickup availability
CWVP60L and CWVP90L Circulating Water Vacuum Pumps are designed to generate vacuum using circulating water and negative pressure produced by a jet system. These pumps are widely used in chemical, pharmaceutical and research laboratories for evaporation, distillation, crystallization, decompression and sublimation processes.
The units feature a multi-tap design allowing independent or parallel operation and incorporate turbine culvert construction for maximum flow efficiency. Anti-corrosion motor shaft construction and oil-free operation ensure contamination-free performance and long service life.
Equipped with dual pressure gauges and a high-efficiency copper coil AC motor with cooling fan, the pumps deliver reliable operation with low noise levels. An integrated check valve prevents backflow during operation and improves process safety.
Available in 60 L/min and 90 L/min capacities, CWVP60L and CWVP90L provide dependable vacuum generation for routine laboratory applications.
Key Features
Water circulating vacuum system
Oil-free operation
Contamination-free performance
Multi-tap design
Parallel operation capability
Dual pressure gauges
High flow efficiency
Copper coil AC motor
Cooling fan design
Anti-corrosion motor shaft
Integrated check valve
Low noise operation
Suitable for continuous operation
Stable vacuum generation
Technical Specifications
| Parameter | CWVP60L | CWVP90L |
|---|---|---|
| Flow Rate | 60 L/min | 90 L/min |
| Tapping Material | PTFE | Copper |
| Tank Capacity | 9 L | 9 L |
| Tank Dimensions (L×W×D) | 280 × 230 × 180 mm | 280 × 230 × 180 mm |
| Lift Height | 8 m (26 ft) | 8 m (26 ft) |
| Vacuum Type | Water Circulating | Water Circulating |
| Ultimate Pressure | 0.098 MPa | 0.098 MPa |
| Display Mode | Pressure Gauge ×2 | Pressure Gauge ×2 |
| Single Tap Pumping Volume | 10 L/min | 10 L/min |
| Operating Temperature | 10°C to 30°C | 10°C to 30°C |
| Power | 260 W | 250 W |
| Power Supply | AC 220V, 50–60 Hz | AC 220V, 50–60 Hz |
| Machine Dimensions (L×W×H) | 360 × 255 × 415 mm | 360 × 255 × 415 mm |
| Packing Dimensions (L×W×H) | 455 × 365 × 560 mm | 455 × 365 × 560 mm |
| Net Weight | 7.5 kg | 8 kg |
| Gross Weight | 10 kg | 11 kg |
