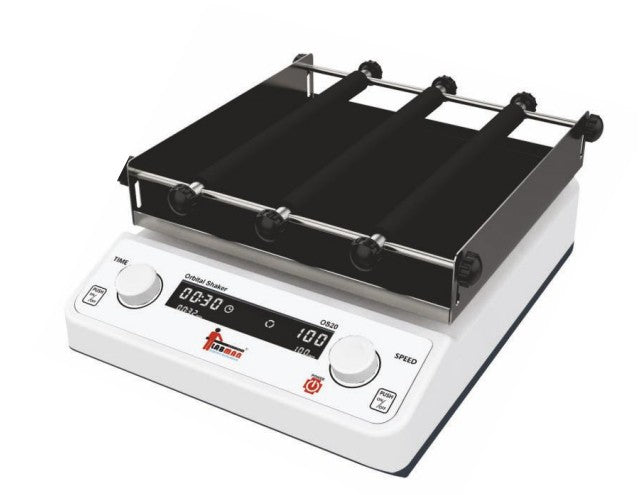

Benchtop Orbital Shaker OS20 (Circular, 40 – 200 rpm)
Benchtop Orbital Shaker OS20 (Circular, 40 – 200 rpm)
Out of stock
Couldn't load pickup availability
The OS20 Orbital Shaker is a compact benchtop device ideal for mixing, aerating, and incubating samples in laboratories. It’s suitable for cell culture, biochemical reactions, and general sample preparation tasks.
The shaker operates with a circular orbital motion (20 mm orbit diameter) and a speed range of 40 – 200 rpm. Powered by a brushless motor, it ensures stable, low-noise performance and long operational life. The universal tray platform (250 × 250 mm) accommodates a variety of containers, while the speed and timer knobs allow precise, user-friendly control of shaking duration and intensity.
Key Features
Speed Range: Adjustable from 40 – 200 rpm.
Orbital Motion: Smooth 20 mm circular orbit.
Brushless Motor: Ensures quiet, stable, and durable operation.
Universal Platform: 250 × 250 mm tray holds multiple vessel types.
Load Capacity: Up to 2 kg.
User Controls: Digital display with speed and timing knobs.
Ease of Use: Start/Pause switch for quick control.
Operating Environment: Functions efficiently at 5 – 40 °C ambient temperature.
Product Specification Table
| Specification | Detail |
|---|---|
| Model | OS20 |
| Display | LCD |
| Speed Range | 40 – 200 rpm |
| Orbital Motion | Circular |
| Orbit Diameter | 20 mm |
| Plate Type | Universal Tray Platform |
| Plate Size | 250 × 250 × 50 mm |
| Max Load | 2 kg |
| Motor Type | Brushless Motor |
| Timing Range | Yes |
| Ambient Temperature | 5 – 40 °C |
| Power Supply | AC 220 V / 50 – 60 Hz |
| Gross Weight | 5 kg |
| Standard Accessories | Main Instrument, Power Cord, O-Ring, Instruction Manual, Test Certificate |
