BIOTRON
Automatic Video Melting Point Apparatus MPA200CFR (21CFR Compliant)
Automatic Video Melting Point Apparatus MPA200CFR (21CFR Compliant)
Out of stock
Couldn't load pickup availability

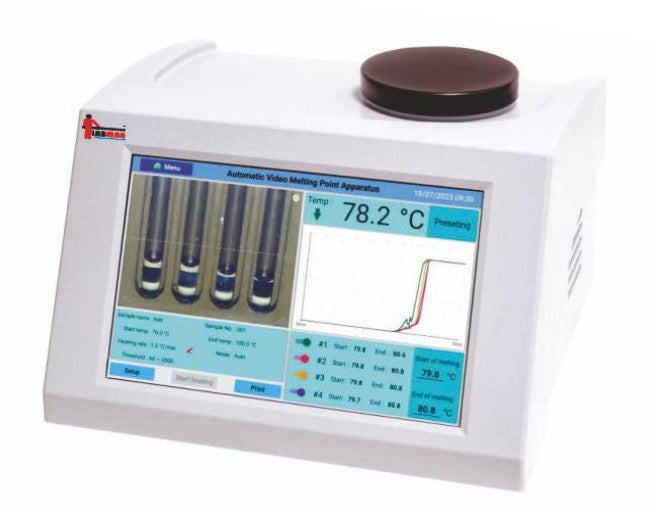

The MPA200CFR Automatic Video Melting Point Apparatus measures the melting point of solid substances using video-based detection in a capillary tube. It is designed for quality control and R&D applications in pharmaceutical and fine chemical industries. The system integrates a 720P HD camera for live and recorded melting video observation. Fully compliant with 21CFR Part 11, GMP, and GLP standards, it includes audit trail, user management, and electronic signature functions for regulatory data integrity.
Key Features
21CFR Part 11, GMP, GLP compliant with audit trail and e-signature
Integrated 720P HD camera with real-time and playback video observation
4-capillary simultaneous measurement for high throughput
Temperature range RT+5 °C to 400 °C
PID and PWM temperature control for precision
10.1″ touchscreen display with Android OS
Adjustable light and sensitivity for dark samples
128 GB data storage with 40,000 chart capacity
User access control for up to 200 users
Multiple connectivity options: RS232C, USB, RJ45, Wi-Fi
Product Specification Table
| Specification | Detail |
|---|---|
| Model | MPA200CFR |
| Measuring Range | RT+5 °C – 400 °C |
| Number of Capillaries | 4 |
| User Capacity | 200 |
| Temperature Resolution | 0.01 °C |
| Accuracy | ±0.5 °C |
| Electronic Signature | Yes |
| GMP / GLP / Audit Trail | Yes |
| Melting Video Playback | Yes |
| Display | 10.1″ Touchscreen |
| Operating System | Android |
| Data Storage | 128 GB |
| Chart Storage | 40,000 sets |
| Interface | RS232C ×1, USB ×3, RJ45 ×1, Wi-Fi |
| Power Supply | AC 220 V, 50/60 Hz |
| Packing Dimension (L×W×H) | 495 × 493 × 350 mm |
| Gross Weight | 10 kg |
| Standard Accessories | Main Instrument, Power Cord, Capillary Tubes, Instruction Manual, Test Certificate |
