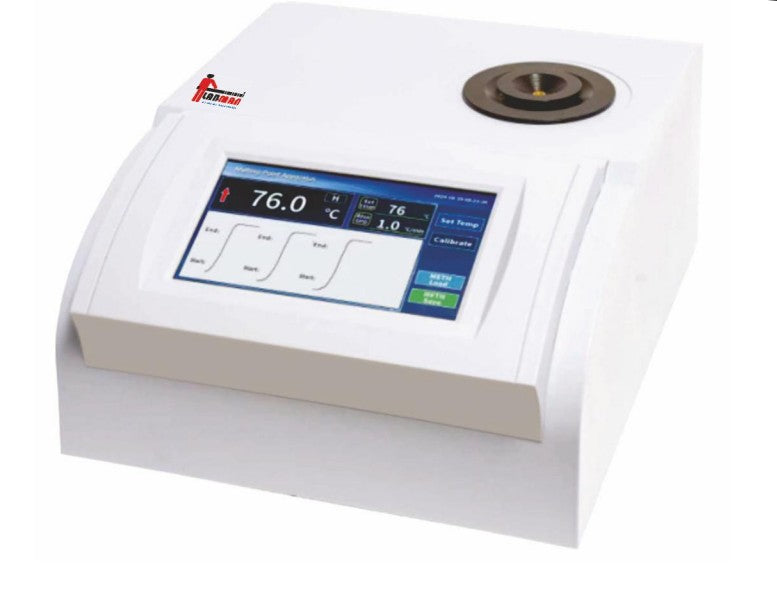

Melting Point Apparatus MPA8A (RT +5°C to 400°C)
Melting Point Apparatus MPA8A (RT +5°C to 400°C)
Low stock: 10 left
Couldn't load pickup availability
The MPA8A Melting Point Apparatus is a high-precision laboratory instrument designed to determine the melting point of various substances. By measuring the exact temperature at which a solid sample transitions into a liquid state within a capillary tube, this device provides critical data for the analysis of pharmaceuticals, dye-stuffs, perfumes, and other organic crystal substances.
Technically, the MPA8A utilizes an advanced PID and PWM temperature control system to ensure stable and accurate heating. It is equipped with a 7-inch touch screen for intuitive operation and provides automated functions including melting curve recording and calculation of average initial and final melting points. With a measurement range reaching 400°C and a resolution of 0.1°C, this apparatus is a robust solution for both research and quality control laboratories.
Key Features
7" Touch Screen. LCD Display
Use PID & PWM to control the temperature.
Automatically records the melting curve.
Calculate average value of initial and final melting points automatically.
Equipped with clock function.
Can connect to a computer for data transferring.
Product Specification Table
| Specification | Detail |
| Model | MPA8A |
| Measurement Range | RT +5°C ~ 400°C |
| Measurement Mode | Auto |
| Measurement Methods | 8 |
| Resolution | 0.1 °C |
| Linear heating-up rate | 0.1 °C/min ~ 20 °C/min |
| Accuracy | ≤200 °C: ±0.4°C, >200 °C: ±0.7°C |
| Repeatability | 0.3 °C (heating rate: 1.0°C/min) |
| Temperature Control | PID & PWM |
| Number of Capillary | 1 |
| Capillary Inner Size | Φ 1.0 mm |
| Data Storage | 1000 set |
| Display | 7" Touch Screen |
| Communication Port | RS232C / USB Interface |
| Power Supply | AC 220V, 50/60Hz |
| Gross Weight (Approx.) | 10 kg |
