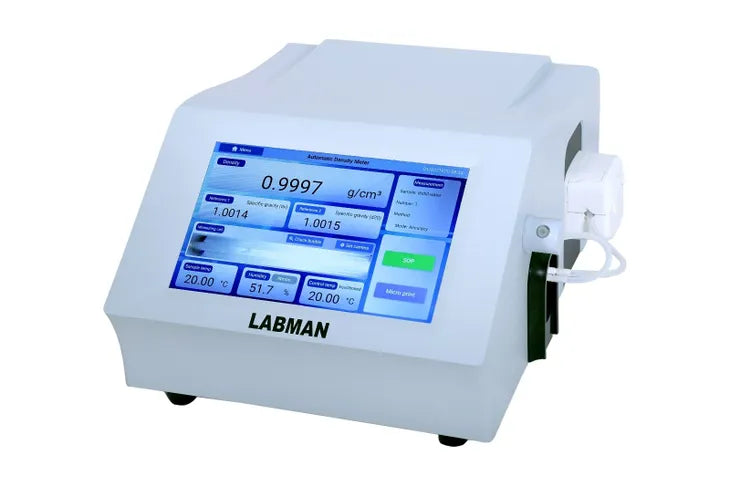

Automatic Density Meter ADM3 (0 to 3.0000 g/cm³)

The Automatic Density Meter is a high-precision laboratory instrument designed for the rapid and accurate measurement of liquid density. Operating on the advanced principle of U-tube vibration, the device utilizes electronic excitation and vibration frequency counting to calculate density based on frequency changes in the sample tube. This model is engineered for high-performance analysis in physics, chemistry, and food safety industries, as well as petroleum, pharmaceutical, and chemical sectors.

The ADM3 features a built-in Peltier temperature control system and a 10.1-inch Android-based touch screen for intuitive operation. With an integrated 1080P HD camera, users can monitor the sample injection process in real-time, ensuring the absence of bubbles or impurities that could affect measurement integrity. Technical highlights include a density resolution of 0.0001 g/cm³ and a robust data management system capable of storing up to 200,000 records.

Key Features

Automatic Density Meter function is to quickly measure the density of liquids

Quartz glass U-Shaped Tube and photoelectric detection methods

High definition camera video for detection

Minimum sample 2~3 ml for each measurements

Built-in Peltier Temperature control

Compatible with Manual sampling and automatic sampling

10.1" Touch screen display with an Android operating system.

1080P high-definition camera for observing the sample injection process

Bubble Detection users observe and identify bubbles or impurities in the sample.

Measurement results can be saved as PDF reports and exported via USB

Batch data collection and storage

RS232C Serial port, USB

Air pump for drying and cleaning

Print results by thermal printers (Optional)

Product Specification Table
