Analytical Balance – TAB5T, TAB11T, TAB12T (220g / 310g / 510g, 0.1mg Readability)
Analytical Balance – TAB5T, TAB11T, TAB12T (220g / 310g / 510g, 0.1mg Readability)
Low stock: 10 left
Couldn't load pickup availability

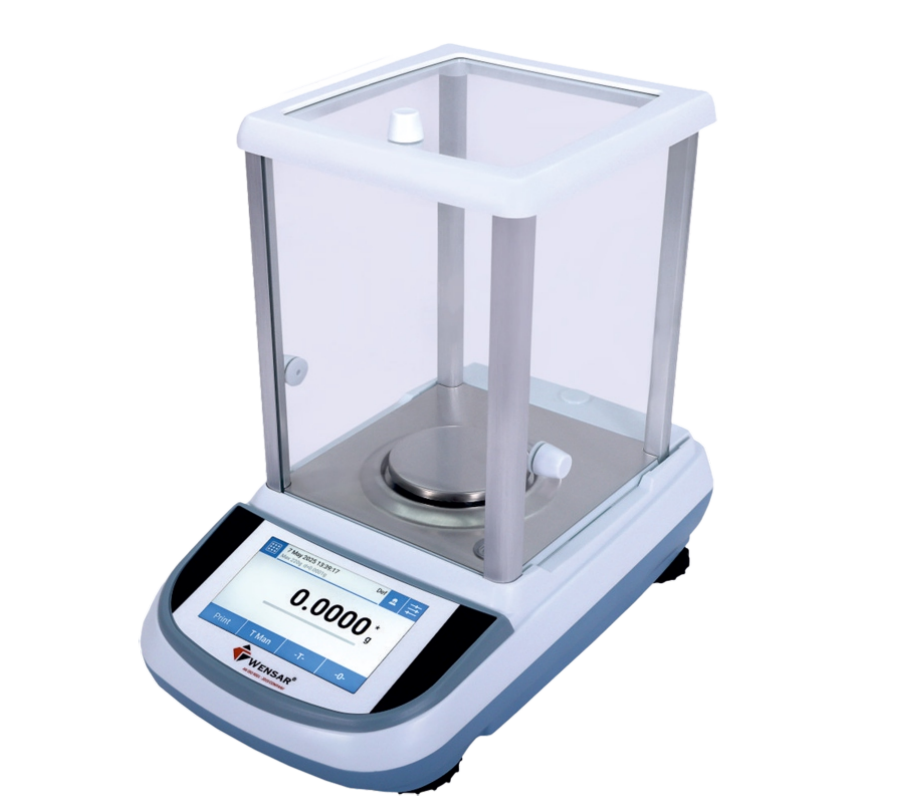

The TAB5T, TAB11T, and TAB12T Analytical Balances are precision laboratory weighing instruments designed for analytical measurements, sample preparation, and quantitative laboratory workflows. The models offer maximum capacities of 220g, 310g, and 510g respectively, with a readability of 0.1mg.
All three models feature a 5" touch screen display, internal calibration, an internal database with GLP reporting, and RS232C and USB interfaces for data import and export. Advanced functions include density determination, statistical reporting, piece counting, percentage weighing, animal weighing, formulation, and underhook weighing. Multi-user password protection and stored measurement data support controlled laboratory workflows.
Key Features
220g, 310g, and 510g weighing capacity options.
0.1mg readability and repeatability.
5" touch screen display.
Internal calibration.
EMFC technology.
GLP reporting and internal database.

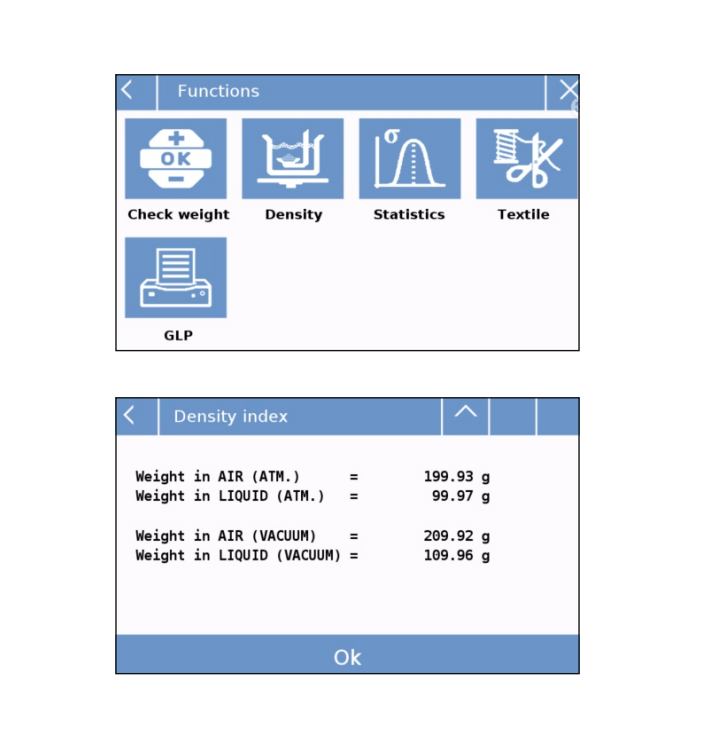

Density determination with density index calculation.
Statistical reporting and piece counting.
Percentage weighing and check weighing.
Animal weighing and textile functions.
Underhook weighing and formulation (recipe) function.
RS232C and USB interfaces for data import and export.
Multi-user password protection.
Storage capacity of 3,000 records.
Date, time, instrument ID, and weighing GLP printout.
Product Specification Table
|
Specification Detail |
TAB5T |
TAB11T |
TAB12T |
|---|---|---|---|
|
Maximum Capacity |
220g |
310g |
510g |
|
Readability |
0.1mg |
0.1mg |
0.1mg |
|
Repeatability |
0.1mg |
0.1mg |
0.1mg |
|
Linearity (±) |
0.3mg |
0.3mg |
0.5mg |
|
Verification Scale Interval |
1mg |
1mg |
1mg |
|
Display |
5" Touch Screen Display |
5" Touch Screen Display |
5" Touch Screen Display |
|
Response Time |
4 to 5 sec |
4 to 5 sec |
4 to 5 sec |
|
Pan Size |
80mm |
80mm |
80mm |
|
Windshield Dimension |
162 x 171 x 225mm (3 sides) |
162 x 171 x 225mm (3 sides) |
162 x 171 x 225mm (3 sides) |
|
Printout Results |
Date, Time, Instrument ID, Weigh GLP |
Date, Time, Instrument ID, Weigh GLP |
Date, Time, Instrument ID, Weigh GLP |
|
Calibration |
Internal |
Internal |
Internal |
|
Class |
I |
I |
I |
|
Operating Temperature |
15°C to 30°C |
15°C to 30°C |
15°C to 30°C |
|
Interface |
RS232C, USB |
RS232C, USB |
RS232C, USB |
|
Density Function |
Available |
Available |
Available |
|
Password Protection |
Yes |
Yes |
Yes |
|
Memory |
3000 records |
3000 records |
3000 records |
|
Sensitivity Drift (±) |
3ppm/°C |
3ppm/°C |
3ppm/°C |
|
Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400 |
1200, 2400, 4800, 9600, 19200, 38400 |
1200, 2400, 4800, 9600, 19200, 38400 |
|
Power Supply |
Adaptor using 24V, 1A; AC 220V / 50–60Hz |
Adaptor using 24V, 1A; AC 220V / 50–60Hz |
Adaptor using 24V, 1A; AC 220V / 50–60Hz |
|
Dimensions (L x W x H) |
515 x 400 x 525mm |
515 x 400 x 525mm |
515 x 400 x 525mm |
|
Gross Weight |
8kg |
8kg |
8kg |
Standard Supplies
Main Instrument
Weighing Pan
Power Adaptor
Instruction Manual
Test Certificate
Applications
Analytical and quantitative laboratory weighing.
Chemical sample preparation.
Pharmaceutical quality control and research.
Density determination of liquids and solids.
Formulation and recipe preparation.
Piece counting and percentage weighing.
Animal weighing and statistical analysis.
GLP-compliant laboratory measurements and data recording.
