Analytical Balance – TAB2T, TAB3T (220g/320g Capacity | 0.1mg Readability | Touch Screen & Internal Calibration)
Analytical Balance – TAB2T, TAB3T (220g/320g Capacity | 0.1mg Readability | Touch Screen & Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability

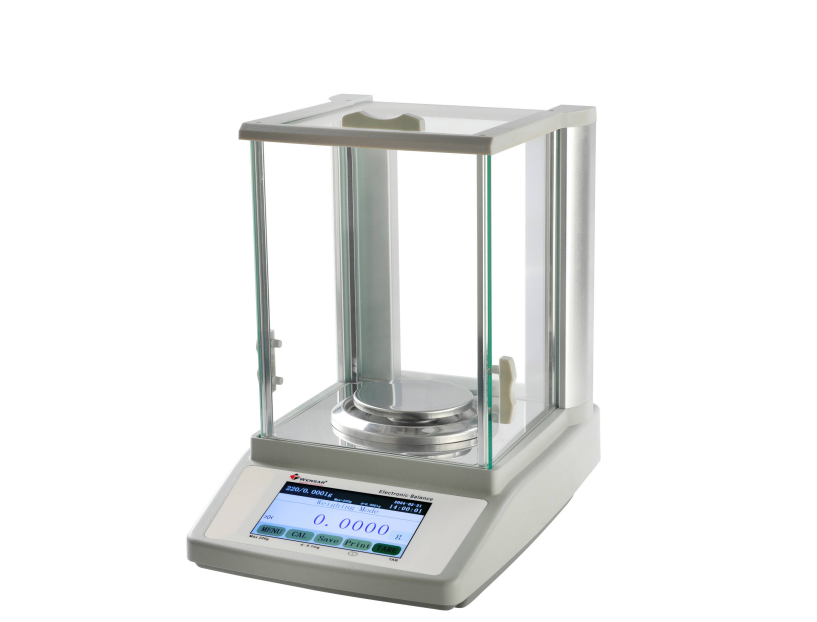

The TAB2T and TAB3T Analytical Balances are high-performance precision weighing instruments designed for laboratory, pharmaceutical, research and industrial applications requiring highly accurate measurements. Built using Electro Magnetic Force Compensation (EMFC) technology, these balances deliver reliable performance with fast stabilization and repeatable results.

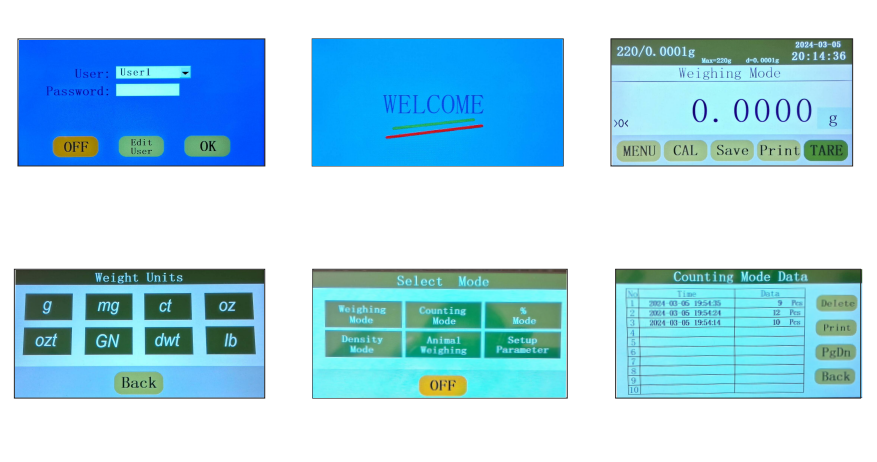

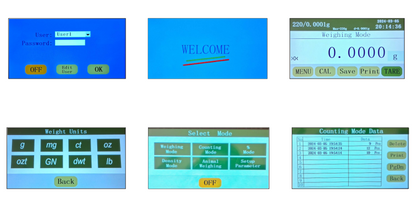

Available in 220 g and 320 g capacities with 0.1 mg readability, the balances support analytical testing, formulation, density determination and routine laboratory workflows. The integrated touch screen interface improves usability and operational efficiency.
The balances feature internal calibration, percentage weighing, piece counting, underhook weighing, multiple weighing units and RS232 communication for seamless laboratory integration and controlled data output.
Their precision and repeatability also make them suitable for gold, jewellery, precious metals and gemstone weighing applications.
Key Features
Internal calibration
EMFC based weighing technology
Touch screen display
User password protection
Percentage weighing
Multiple weighing units
RS232C interface
Piece counting function
Underhook weighing
Date and time display
Memory storage up to 20 records
Stable and continuous data output
Technical Specifications
| Parameter | TAB2T | TAB3T |
|---|---|---|
| Capacity | 220 g | 320 g |
| Readability (d) | 0.1 mg | 0.1 mg |
| Repeatability | 0.1 mg | 0.1 mg |
| Linearity (±) | ±0.3 mg | ±0.3 mg |
| Minimum Capacity | 10 mg | 10 mg |
| Display | Touch Screen | Touch Screen |
| Pan Size | 90 mm Ø | 90 mm Ø |
| Response Time | 4–6 sec | 4–6 sec |
| Calibration | Internal Calibration | Internal Calibration |
| Tare Range | Full | Full |
| Operating Temperature | 15°C to 30°C | 15°C to 30°C |
| Units | mg, g, ct, oz, ozt, GN, dwt, lb | mg, g, ct, oz, ozt, GN, dwt, lb |
| Weighing Chamber Height | 210 mm | 210 mm |
| User Password | Yes | Yes |
| Class | I | I |
| Interface | RS232C | RS232C |
| Data Output Mode | Command, Continuous and Stable Output | Command, Continuous and Stable Output |
| Power Supply | AC 220V / 50–60Hz | AC 220V / 50–60Hz |
| Packing Dimensions (L × W × H) | 505 × 390 × 520 mm | 505 × 390 × 520 mm |
| Gross Weight | 10 kg | 10 kg |
Applications
Analytical laboratories
Pharmaceutical laboratories
Research laboratories
Chemical laboratories
Quality control laboratories
Precision sample preparation
Analytical testing
Academic laboratories
Gold industry
Jewellery industry
Precious metal weighing
Gemstone testing laboratories
