Analytical Balance TAB1T (220g Capacity, 0.1mg Readability, 5" Touch Screen & Internal Calibration)
Analytical Balance TAB1T (220g Capacity, 0.1mg Readability, 5" Touch Screen & Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability

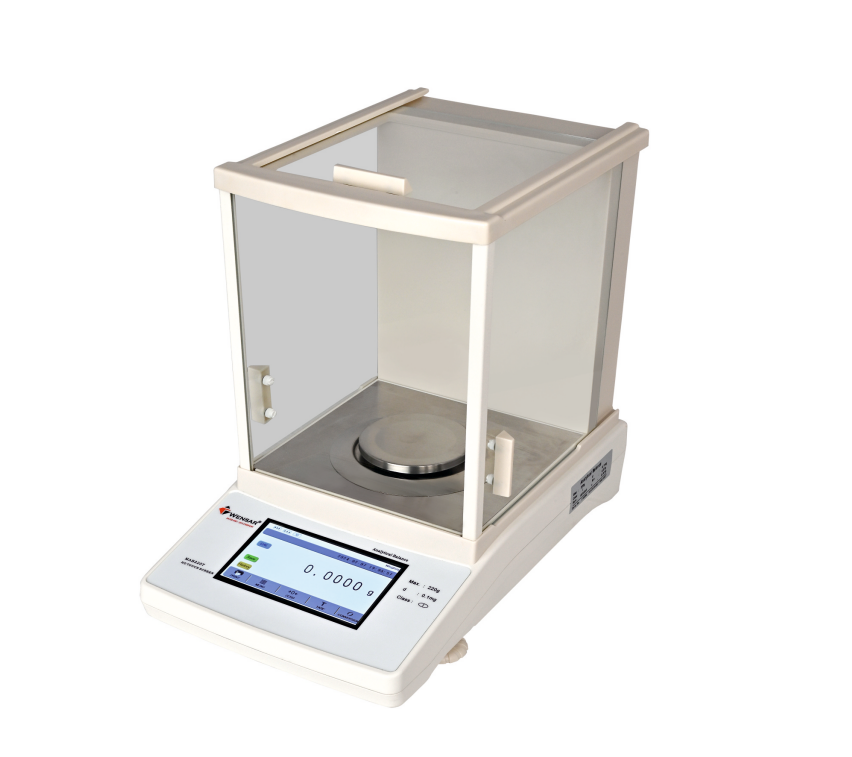

The TAB1T Analytical Balance is a high-precision weighing instrument designed for analytical laboratories, pharmaceutical environments, research facilities and precision industrial applications. Built with Electro Magnetic Force Compensation (EMFC) technology, it delivers stable and highly repeatable weighing performance.

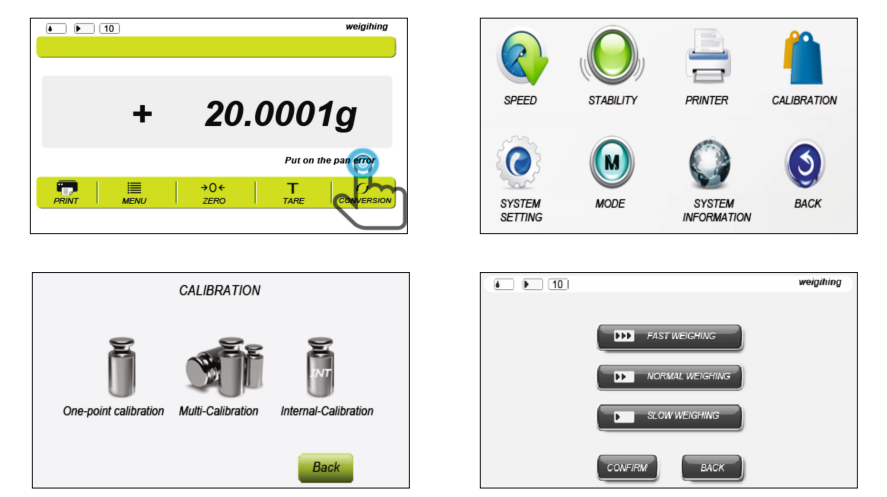

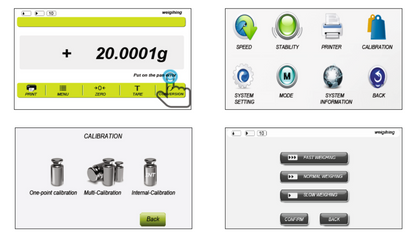

With a 220 g capacity and 0.1 mg readability, TAB1T enables accurate measurement for analytical testing, formulation, density determination and quality control operations. The integrated 5-inch touch screen display provides intuitive operation and faster workflow execution.
The balance includes internal calibration, density determination, percentage weighing, piece counting, underhook weighing and multiple weighing unit support. RS232 communication enables convenient data transfer and laboratory integration.
TAB1T is also suitable for gold, jewellery, precious metal and gemstone weighing applications where high precision and repeatability are required.
Key Features
Electro Magnetic Force Compensation (EMFC) technology
5-inch touch screen display
Percentage weighing function
Multiple weighing units
Density determination function
RS232C communication interface
Piece counting function
Underhook weighing
Internal calibration with built-in weight
Date and time function
Fast weighing response
Stable analytical performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 220 g |
| Readability (d) | 0.1 mg |
| Repeatability | 0.2 mg |
| Linearity (±) | 0.4 mg |
| Minimum Capacity | 10 mg |
| Verification Scale Interval (e) | 1 mg |
| Calibration | Internal Calibration |
| Class | Class I |
| Display | 5-inch Touch Screen |
| Response Time | 3–5 sec |
| Pan Size | 80 mm Ø |
| Tare Range | Full |
| Operating Temperature | 15°C to 30°C |
| Sensitivity Drift | 2 ppm/°C |
| Density Function | Available |
| Key Sound | Yes |
| Weighing Chamber | 240 × 190 × 265 mm |
| Units | g, mg, ct, oz |
| Baud Rate Options | 1200, 2400, 4800, 9600 |
| Interface | RS232C |
| Power Supply | AC 220V / 50–60 Hz |
| Packing Dimensions (L × W × H) | 510 × 370 × 515 mm |
| Gross Weight | 10 kg |
Applications
Analytical laboratories
Pharmaceutical laboratories
Research laboratories
Chemical laboratories
Quality control laboratories
Density determination applications
Precision sample preparation
Gold industry
Jewellery industry
Precious metal weighing
Gemstone testing laboratories
