Analytical Balance KAB5L & KAB6L (220g/320g Capacity, 0.1mg Readability, Internal Calibration)
Analytical Balance KAB5L & KAB6L (220g/320g Capacity, 0.1mg Readability, Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability

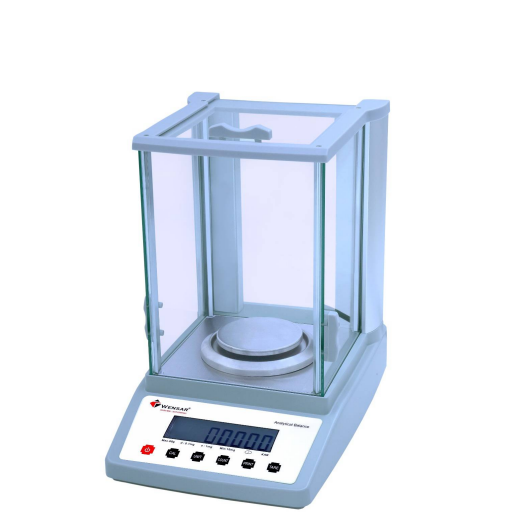

Analytical Balance KAB5L and KAB6L are precision laboratory weighing instruments designed for analytical measurements requiring reliable accuracy, stable operation, and efficient daily performance. The series offers two capacity configurations—220 g (KAB5L) and 320 g (KAB6L)—while maintaining a fine readability of 0.1 mg (0.0001 g) for accurate sample analysis.
Built with Electromagnetic Force Compensation (EMFC) technology, the balances deliver fast stabilization, improved repeatability, and dependable weighing results. Internal automatic calibration ensures consistent measurement performance while minimizing manual calibration requirements.
The balances feature a clear LCD interface with multiple weighing unit selection and support for continuous and command-based data output. Additional capabilities including underhook weighing, piece counting, tare function, and RS232 communication expand usability across laboratory and industrial workflows.
Designed with Class I weighing performance and robust construction, KAB5L and KAB6L are suitable for analytical laboratories, pharmaceutical environments, research institutions, and precision weighing applications including gold and jewellery measurement.

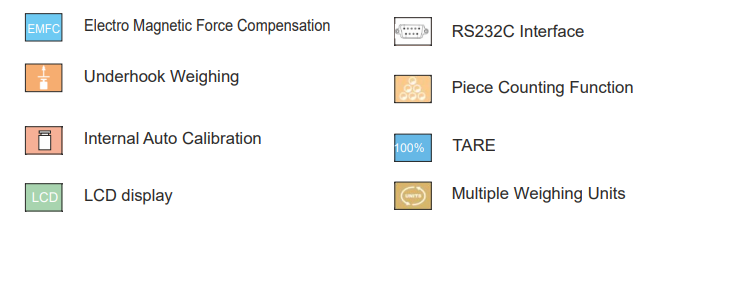

Key Features
Electromagnetic Force Compensation (EMFC) technology
Capacity options of 220 g and 320 g
0.1 mg (0.0001 g) readability
Internal automatic calibration
LCD display for clear reading visibility
Underhook weighing capability
Piece counting function
Multiple weighing unit support
RS232 communication interface
Fast response performance
Tare functionality
Command and continuous output modes
Class I weighing accuracy
Stable and repeatable measurement performance
Technical Specifications
| Parameter | KAB5L | KAB6L |
|---|---|---|
| Capacity | 220 g | 320 g |
| Readability | 0.1 mg (0.0001 g) | 0.1 mg (0.0001 g) |
| Repeatability | 0.1 mg | 0.1 mg |
| Linearity | ±0.3 mg | ±0.3 mg |
| Minimum Capacity | 10 mg | 10 mg |
| Display | LCD | LCD |
| Pan Size | 90 mm Ø | 90 mm Ø |
| Response Time | 4–6 sec | 4–6 sec |
| Calibration | Internal Calibration | Internal Calibration |
| Tare Range | Full | Full |
| Operating Temperature | 15°C to 30°C | 15°C to 30°C |
| Units | mg, g, ct, ozt, oz, GN, dwt, lb | mg, g, ct, ozt, oz, GN, dwt, lb |
| Key Sound | Yes | Yes |
| Weighing Chamber Height | 210 mm | 210 mm |
| Baud Rate | 200, 2400, 4800, 9600 | |
| Accuracy Class | Class I | Class I |
| Interface | RS232 | RS232 |
| Data Output Mode | Command and Continuous Output | Command and Continuous Output |
| Power Supply | AC 220V / 50–60 Hz | AC 220V / 50–60 Hz |
| Packing Dimensions (L×W×H) | 505 × 390 × 520 mm | 505 × 390 × 520 mm |
| Gross Weight | 10 kg | 10 kg |
Applications
Analytical laboratory weighing
Pharmaceutical sample preparation
Research and development laboratories
Quality control and inspection
Chemical and material analysis
Academic laboratories
Gold and jewellery weighing
Precious metal testing and measurement
Precision formulation and sample preparation
